Goblin FPV Drone

Note: A larger version of this drone, able to fit a 20x20mm stack is available:

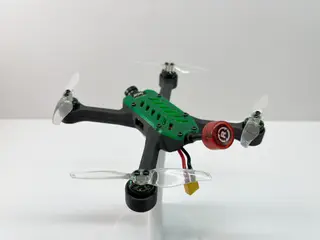

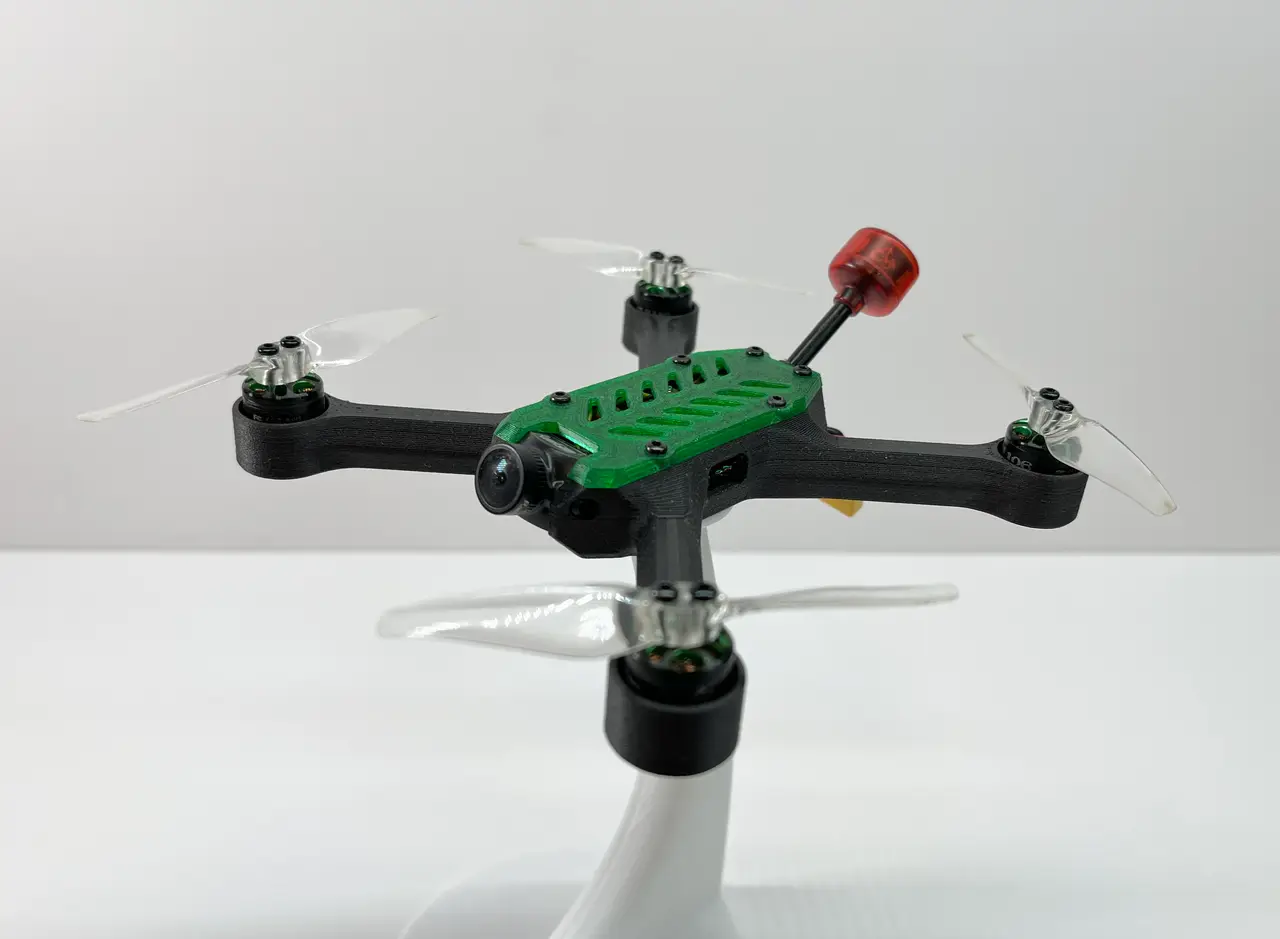

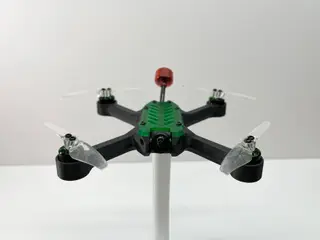

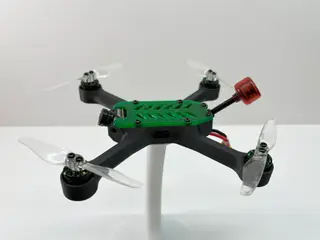

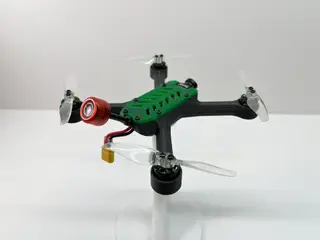

The Goblin FPV Drone I worked hard on this little guy. Poured love into every edge and crevice. Spared no mechanical consideration. And what a beautiful little goblin he turned out to be. Now to get a bit more technical. This is a 3 inch drone frame. Mine is printed using carbon fiber nylon for the body and translucent green PETG for the top. I'll list out the specific electronic and mechanical hardware that I used below, I know this combo works and pretty damn well at that. If you don't wanna choose parts for yourself, follow this list. The Electronics: - 1x 16x16mm Flight controller / ESC stack - What I used is out of production. Search for: Flywoo Goku GN405 Nano HD 35A

- 1x ELRS receiver - The GN405 Nano has a built in receiver already

- What I used: Happymodel EP1

- 4x 1106 brushless motor - Higher KV motor if you want to fly on 2-3S. Lower KV motor if you want to run 4S

- What I used: FlashHobby A1106 6500KV

- 1x Nano Analog VTX - Designed to mount one specific VTX, the Zeus Nano

- Other nano VTXs, like the TBS Unify Pro32 Nano can fit

- What I used: Zeus Nano VTX

- 1x Analog FPV camera - Design fits 14mm width camera

- What I used: RunCam Nano 2

- 1x VTX antenna - antenna stem thickness of 4mm

- UFL/IPEX antenna connector type

- Polarization of transmitter and receiver antennas must match

- What I used: Rush Cherry 87mm UFL RHCP antenna

- 1x LiPo battery - Select voltage based on motor KV rating

- Look for capacity in range of 500-800 mAh

- What I used: CODDAR 500mAh 3S 11.4V HV

- 1x ELRS Radio controller - What I used: Radiomaster Pocket

- A cheaper alternative is the Radiomaster T8L

The Hardware: - 4x 3" / 2.5" propeller - I recommend getting replacement extras though

- What I used: Gemfan 3018 propeller

- 4x M2x14 low profile screw + M2 nut - These are for the FC / ESC stack

- Low profile in order to be flush with the drone's surface

- 8x M2x7 screw - For securing the propellers

- These are usually included with the motors

- 4x M2x6 screw - These are for attaching the cover

- 18x M2x5 screw - 16 of these are for the motors

- The other 2 are for securing the VTX

- 2x M2x4 screw - For attaching the camera
