Glycidyl methacrylate 3D Model — CAS 106-91-2

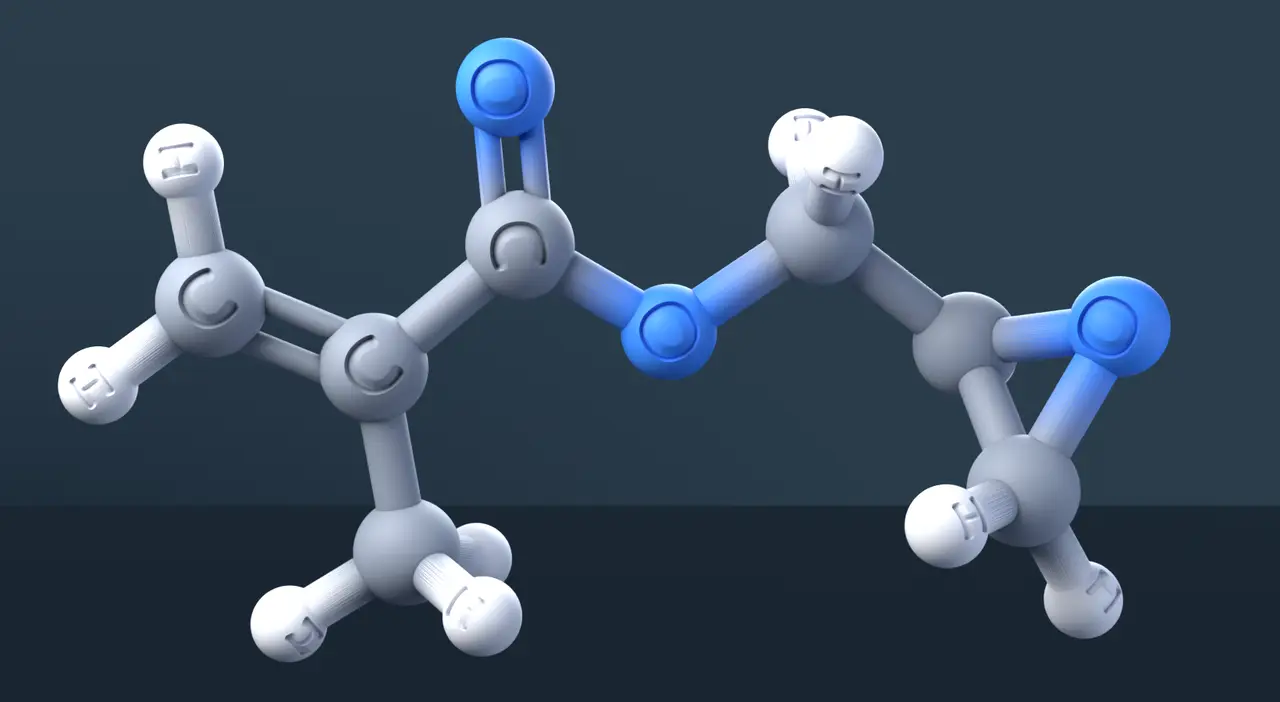

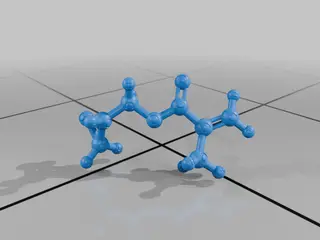

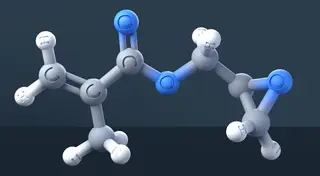

Glycidyl methacrylate (C7H10O3, CAS 106-91-2) — a free educational 3D molecular model for teachers and students, by MolGod.org. Instead of colour coding, every sphere carries its engraved element symbol. Look at the skeleton first: Glycidyl methacrylate contains one 3-membered ring, and students can trace 20 bonds (18 single and 2 double). Hand the model round and let students tally the engraved atoms: 7 C + 10 H + 3 O, 20 in total. Functional groups to find on the model: ester group (-COO-), epoxide ring (three-membered C-O-C ring) and carbon-carbon double bond (C=C). There is one stereocentre in Glycidyl methacrylate; the configuration is not specified in this record, so students can work out what the R and S forms would look like. A good fit for lessons on chirality, enantiomers and CIP (R/S) rules, on the carbonyl group (C=O), as well as on ring strain in three-membered rings. MolGod.org shares these models for free to make chemistry tangible in the classroom. Teachers: print one per group and let students check the structure against the formula. Full record and more free models: https://molgod.org/molecule/106-91-2/?utm_source=thingiverse&utm_medium=referral&utm_campaign=edu-3d-models Licence & provenance: https://molgod.org/licenses/stl/106-91-2/ Same file on Wikimedia Commons: https://commons.wikimedia.org/wiki/File:Glycidyl_methacrylate-3D-molecular-model-engraved-CAS-106-91-2.stl A ball-and-stick model of Glycidyl methacrylate with each element symbol recessed into its atom sphere, generated by MolGod.org from a PubChem-computed 3D conformer (not an experimental crystal structure); atomic coordinates and connectivity are unchanged. STL mesh: 247,026 triangles, closed (watertight) single solid. Coordinates in ångström (STL stores no unit) — scale the model deliberately in your slicer. Names in other languages: 2,3-Epoxypropylmethacrylat (de); Glycidylmethacrylaat (nl); 甲基丙烯酸缩水甘油酯 (zh). Chemical identity - CAS Registry Number: 106-91-2 - Molecular formula: C7H10O3 - Molar mass: 142.15 g/mol (exact mass 142.062994177) - IUPAC name: oxiran-2-ylmethyl 2-methylprop-2-enoate - MolGod ID: MG_967-444-191-63 (https://molgod.org/id/MG_967-444-191-63) - PubChem CID: 7837 (https://pubchem.ncbi.nlm.nih.gov/compound/7837) - Wikidata: Q2013175 (https://www.wikidata.org/wiki/Q2013175) - EC number: 203-441-9 - ChemSpider ID: 7549 - InChIKey: VOZRXNHHFUQHIL-UHFFFAOYSA-N - SMILES: CC(=C)C(=O)OCC1CO1

Required attribution (CC BY-SA 4.0): "Glycidyl methacrylate 3D model by MolGod.org — https://molgod.org/molecule/106-91-2/ — CC BY-SA 4.0" Licence text: https://creativecommons.org/licenses/by-sa/4.0/
