GHOST Sensor Mount Kit: AS5600 spacers + ESP32-S3-Zero mounts

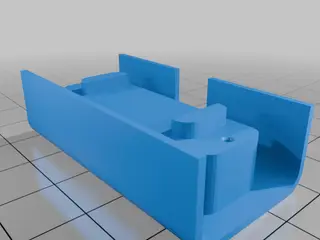

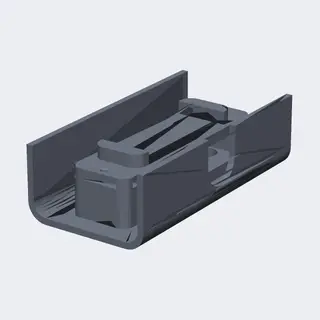

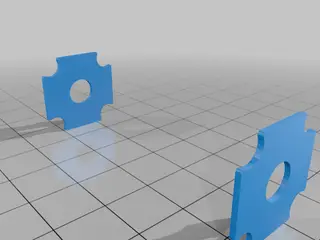

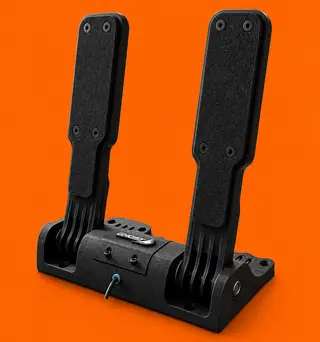

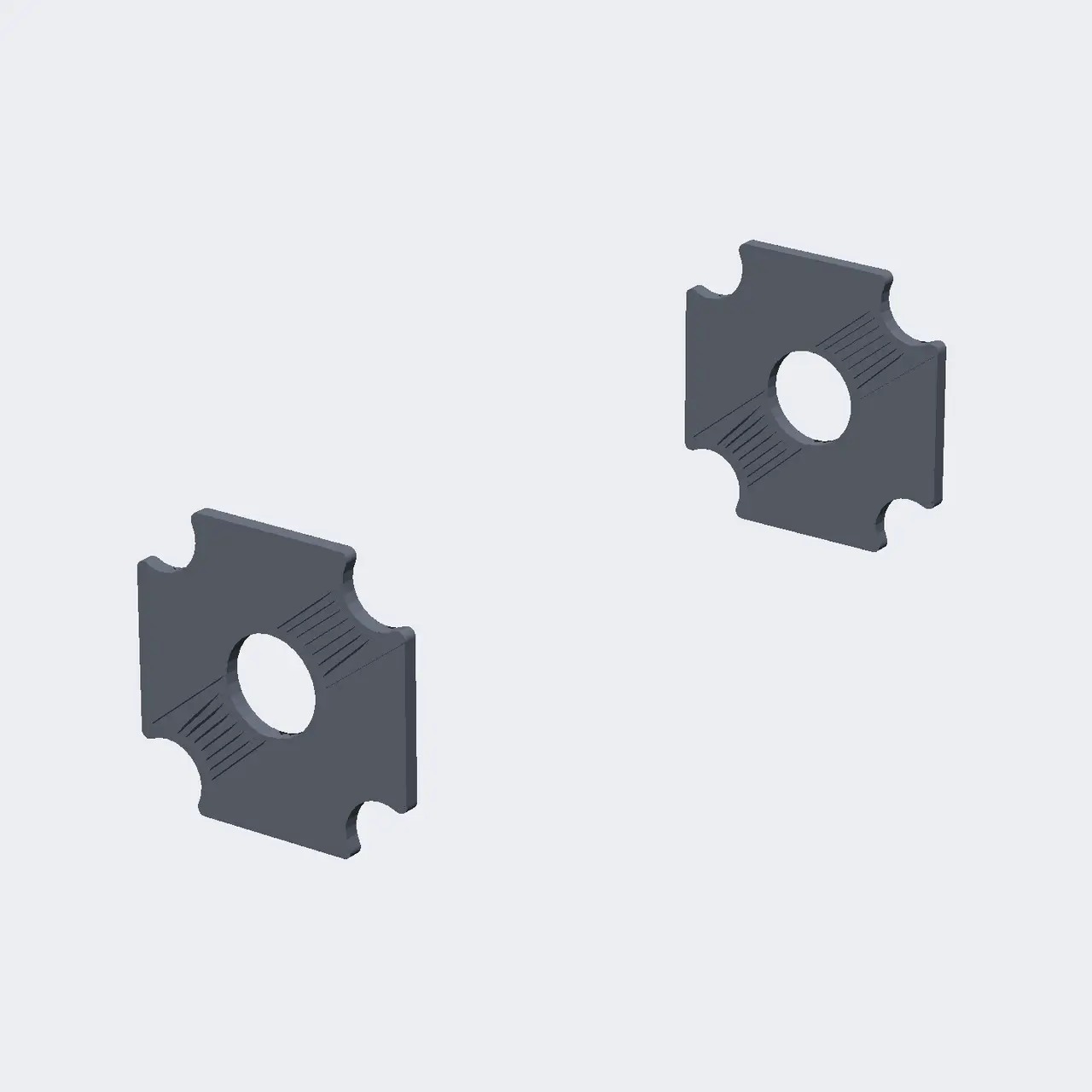

These are two small parts out of my GHOST DIY pedals, the 3D printed pedal set from my plane cockpit build. I figured they're handy on their own, so here they are for free. What's in it: - AS5600 spacers (x2, about 20 x 20 mm). I use one per pedal to mount the AS5600 magnetic encoder boards. - ESP32-S3-Zero mounts (x2). Small trays for the Waveshare ESP32-S3-Zero.

If you're building anything with an AS5600 (pedals, knobs, a rudder, a robot joint) or need somewhere to bolt down an S3-Zero, these should save you some CAD time. Couple of tips from doing this myself: - Use a diametric magnet with the AS5600 and check the raw reading is stable through the whole rotation before you close anything up. Magnet orientation matters a lot. - If you run two AS5600s, they have the same fixed I2C address. Put them on separate I2C buses (that's what I did) or use a multiplexer.

Print settings: I print in ASA-CF. PETG, ABS, ASA or PLA are all fine for these. They're small and the holes are tolerance sensitive, so go slow and test fit your board before forcing it. If you want the whole pedal set (all the STLs, the ESP32 firmware, BOM and wiring guide), or the matching joystick with the round AMOLED screen, those are at payhip.com/ErrorByHuman. Build video: https://youtu.be/i-dsWvk1nBc License: free for personal use. Please don't re-upload or sell the files or prints. Link here instead.
