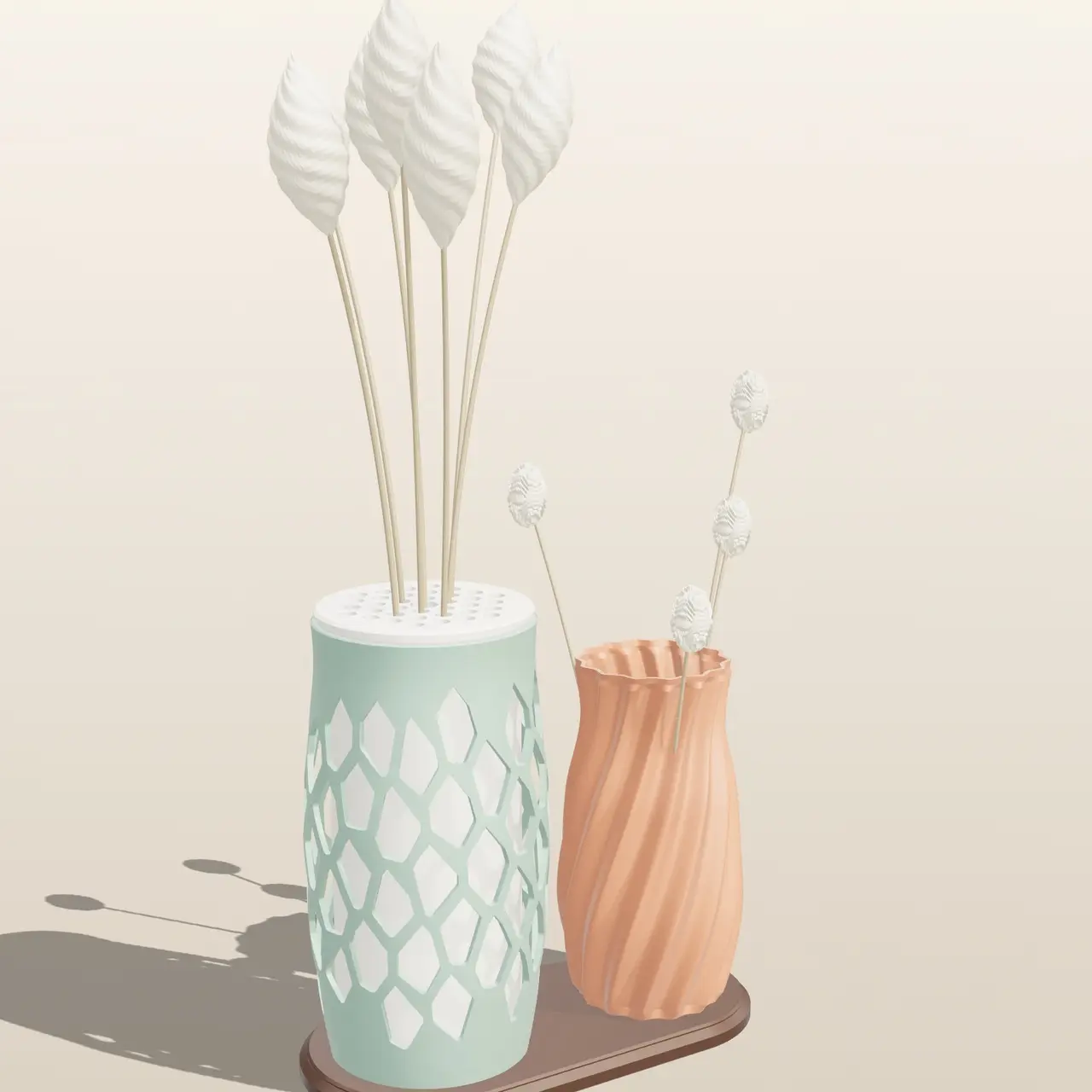

Geometric Vase Duo – Voronoi Lantern Vase with Watertight Liner & Flower Frog + Twisted Fluted Vase on Duo Plinth

A modern, two-vase display set for dried or fresh flowers: an organic Voronoi lattice vase that doubles as an LED lantern, a soft twisted fluted vase, and a matching two-tier plinth that holds both. Original design, multi-part, every fit checked digitally.

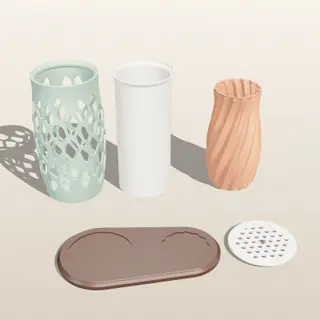

WHAT YOU GET (6 files + README)

- Voronoi Lantern Vase (97.9 x 97.8 x 180 mm, ~104 g): 75 graded Voronoi cells, each with a pointed 45° top, so it prints upright with NO supports. A 42° seat cone in the rim and a 38 mm recess in the floor for an LED tea light (lantern mode).

- Watertight Liner Insert (~90 g): drops in through the collar with 0.30 mm clearance, self-centres on the seat cone and turns the lattice into a real vase. Print it in a contrast colour - it shows through every cell.

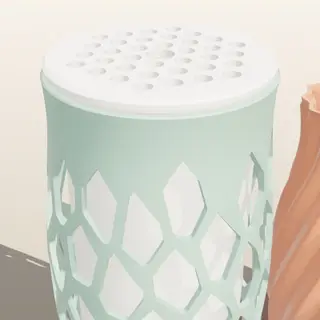

- Flower Frog Grid Lid (86 mm, ~18 g): 36 stem holes + 11 mm centre hole, plug keys into the liner mouth (0.34 mm gap) and holds every stem in place.

- Twisted Fluted Vase - VASE MODE version (79.7 x 78.8 x 150 mm, ~43 g): 14 flutes with a 72° twist.

- Twisted Fluted Vase - 2 mm wall version for normal printing (~82 g).

- Duo Plinth (200.9 x 106 x 10 mm): 45° chamfered two-tier base with 2 mm pockets (0.30 mm clearance); the fluted pocket follows the flutes so that vase cannot twist or slide.

- README.txt with print settings and assembly.

SIZE

Assembled set on the plinth: approx. 201 x 106 x 195 mm (Voronoi vase with lid 185 mm + plinth). Each part fits a 220 x 220 x 200 mm print bed.

PRINTING

- 0.2 mm layers, 0.4 mm nozzle, all parts already oriented, no supports.

- All parts watertight, 0 cm² overhang above 45°.

- Voronoi vase: 6 perimeters (2.4 mm wall). Liner: 4 perimeters, PETG recommended for water (optional epoxy seal inside).

- Fluted vase: spiral/vase mode with 0.6-0.8 mm line width, or use the 2 mm wall file.

- Clearances 0.25-0.35 mm; seated / free / colliding states verified with boolean section checks. Designed and checked digitally, not test-printed yet.

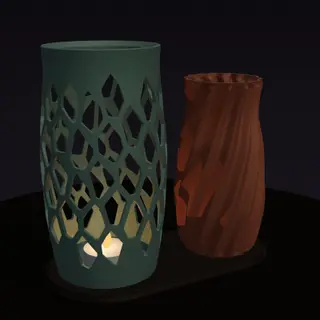

- Lantern mode: LED tea lights only, never a real flame.

Generated with the DIATEH GEN parametric engine.
