Genelec 4020C Pi Zero 2 W Mount
por Slowmoe en Printables
Genelec 4020C Pi Zero 2 W Mount
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Slowmoe.
Archivos (2)
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

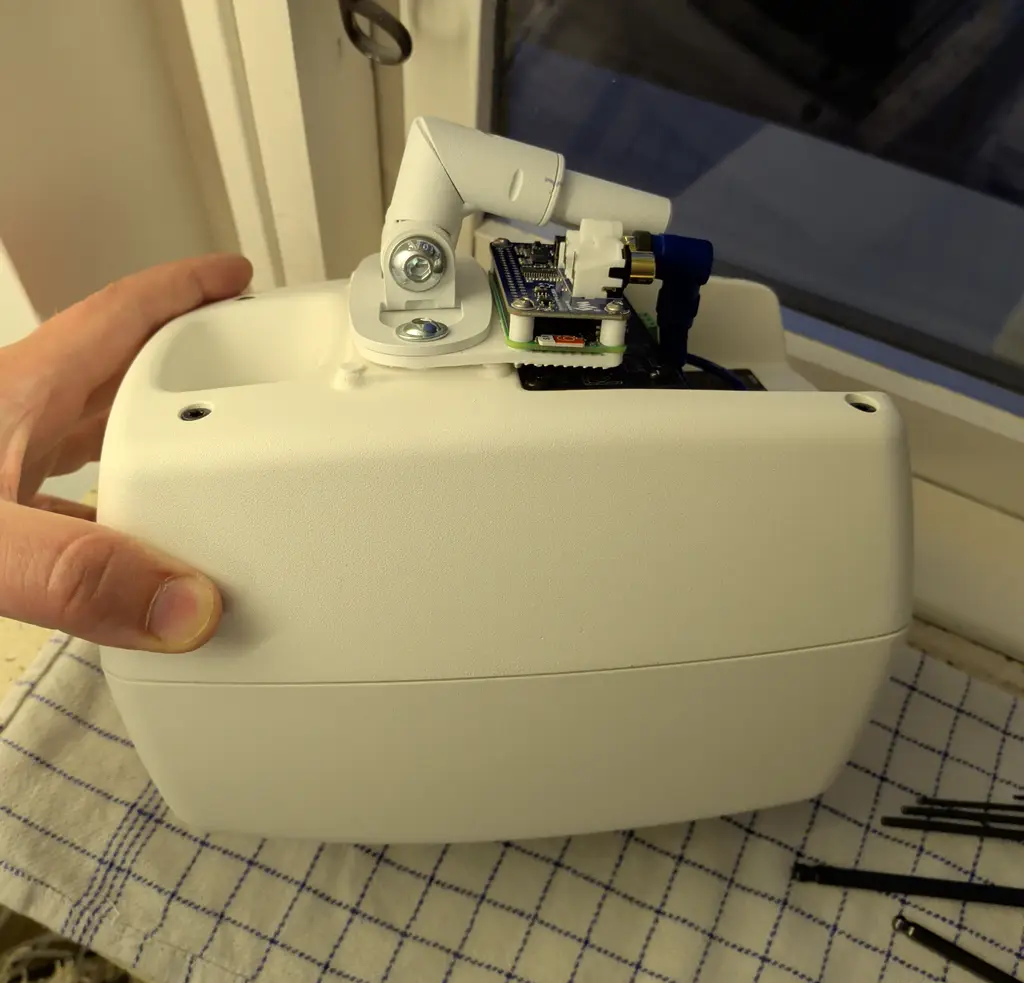

Genelec 4020C Pi Zero 2 W Mount Made this to replace my HEOS speakers. This mount attaches a Raspberry Pi Zero 2 W together with a Waveshare PCM5122 DAC to the back of a Genelec 4020C speaker. 07/19-2026: The first version prevented the speaker from tilting because the RCA connectors on the DAC interfered with the wall mount. This revised version angles the Pi/DAC assembly, allowing the speaker to tilt normally. The mount is designed around the original Genelec 8000-422W wall mount and fits behind the speaker while keeping the installation compact and clean. Printing - Print floating with supports.
- No additional hardware beyond the original mounting hardware is required.
Compatible with: - Genelec 4020C
- Genelec 8000-422W wall mount
- Raspberry Pi Zero 2 W
- Waveshare PCM5122 DAC
- And probably more Genelec speakers.
Descripción original del autor, publicada en Printables.
