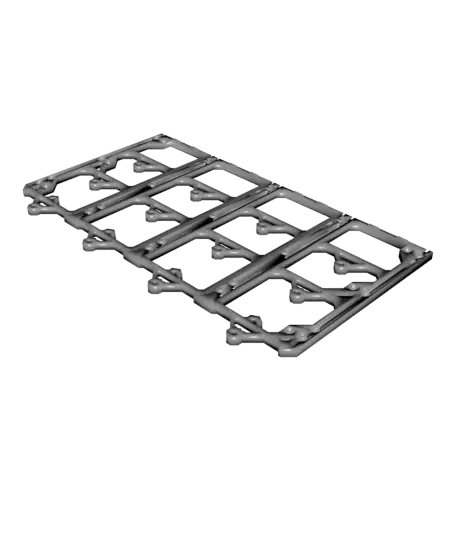

GEN2 Under Table Rails - 185

PLAN YOUR BUILD WITH THE FREE GEN2 PLANNER

Pick a mount style (wall, table top, or under-table), lay out your drawers, and get a complete parts list with download links. No guessing which sizes fit your space or your printer.

Plan it free: https://gen2planner.jerrari3d.com/?utm_source=thangs

___

WHAT THESE RAILS DO

GEN2 Rails mount modular drawers under any surface - a desk, a bench, a shelf, the underside of a cabinet. Once the rails are up, storage swaps between rails in seconds by releasing the QuickLock.

185 is the STANDARD collection, about 171mm of usable drawer, and the most-used depth in the system.

___

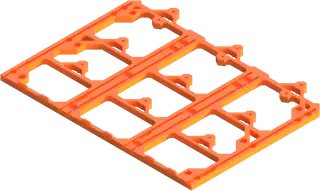

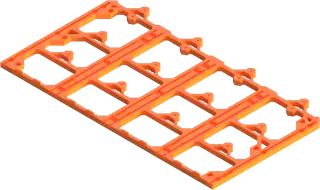

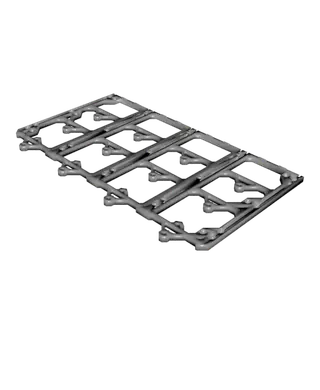

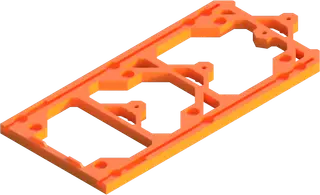

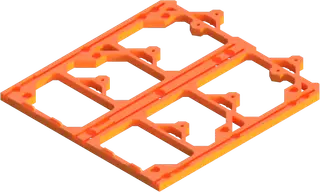

WHAT YOU GET - Single - one drawer column wide (1W) - Double - two columns (2W) - Triple - three columns (3W) - Quad - four columns (4W)

Mix widths to span whatever run you need.

Check the Quad before you print it. The 4W rail is 352mm wide, which is wider than the largest common bed (an H2D at 350mm), and rotating it does not help. Print two Double rails and butt them end to end instead.

___

WHAT YOU NEED - Filament - PETG or PLA - Countersunk woodscrews - SAE #6 or #8, 1/2 inch or longer, or metric 3.5 x 16mm or longer - A drill bit smaller than the woodscrews - A pen, marker or scratch awl to mark your holes - A screwdriver

___

SUPPORT GEN2 AND UNLOCK MORE

The GEN2 system is free and always will be. The club adds CAD/STEP files, early access and premium drops, and it directly funds new designs.

Become a member: https://thangs.com/designer/Jerrari/memberships

___

Full system guides: https://www.jerrari3d.com/gen2-modular-system/instructions

New to GEN2? Watch the system overview: https://www.youtube.com/watch?v=2UPSWt1l6U8

See the video on this page for the under-table install walkthrough.
