GEN2 270 Shelf Inserts

PLAN YOUR BUILD WITH THE FREE GEN2 PLANNER

Not sure which widths you need? Build your layout in the free GEN2 Planner and it works out the parts for you, hands you a complete parts list with download links, and generates a step-by-step 3D assembly guide for your exact setup.

Plan it free: https://gen2planner.jerrari3d.com/?from=thangs&ref=gen2-270-shelf-inserts

___

TURN ANY GEN2 270 CASE INTO AN OPEN SHELF

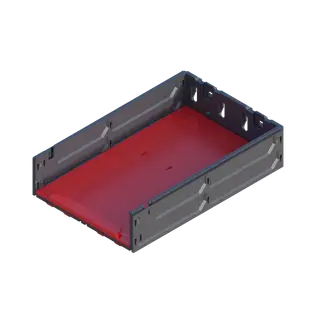

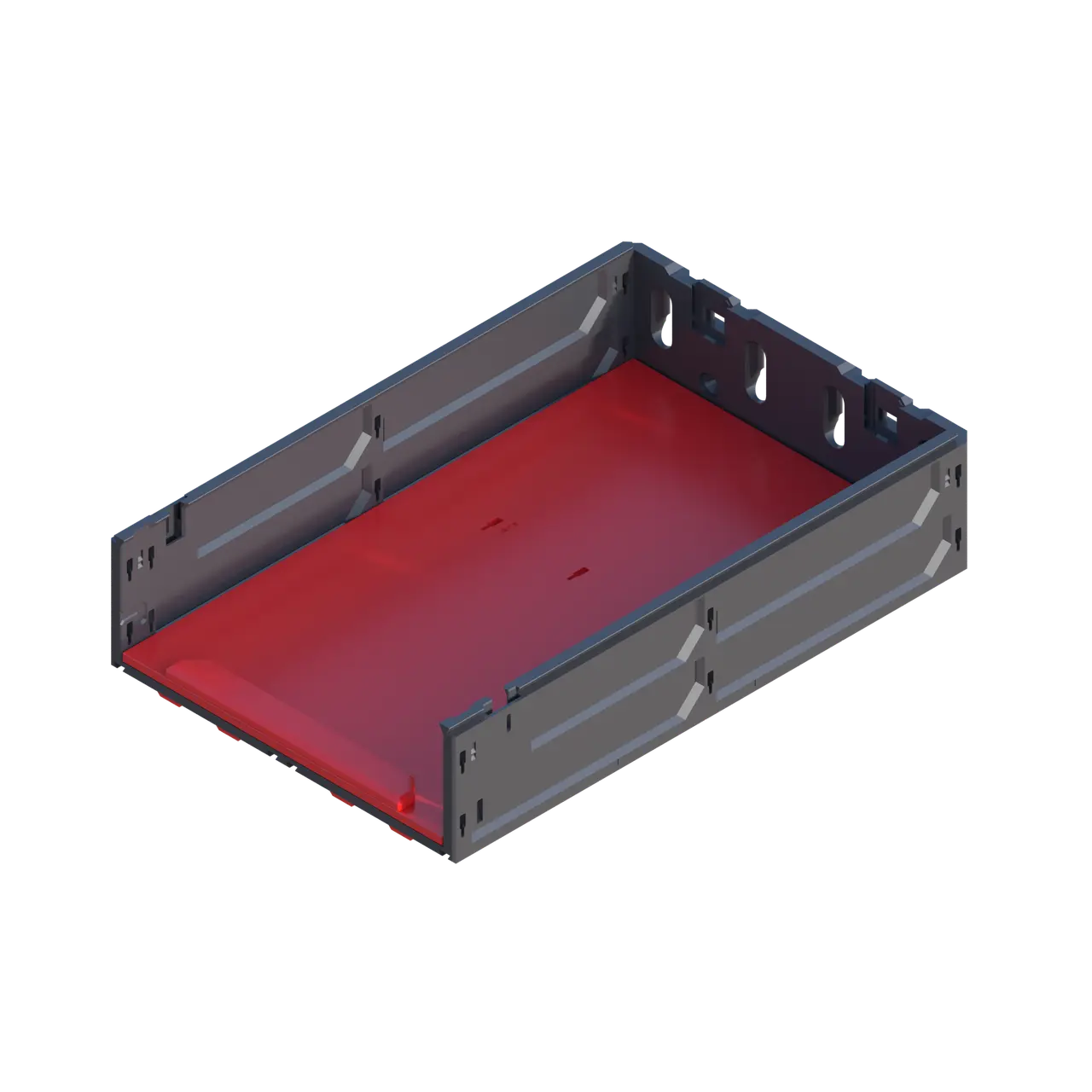

The shelf insert drops into the case and rests on a full-width internal ledge, so the load is carried across the whole span instead of on a few clips. It sits flush with the case front, and it needs no bought hardware at all.

Part of the GEN2 QuickLock Modular System - print only what you need, snap it together, rearrange or expand anytime. The 270 series is the large collection, for maximum storage on big beds.

___

WHAT'S INCLUDED - Shelf inserts - 270-1W, 270-2W, 270-3W and 270-4W - Shelf Lips (optional) - 1W, 2W, 3W and 4W

___

GOOD TO KNOW - No drawer stoppers needed - the insert has stoppers built into it that occupy the case's stopper slots. A drawer sitting directly underneath a shelf does not need its own stopper pair. - The Shelf Lip is optional - a raised front edge that stops things rolling off. It drops into the slots in the deck and slides forward to lock flush, no screws and no glue. It stiffens the deck on the wider sizes too. - A second lip for deeper shelves - the 270 deck takes a second lip 144mm behind the front one, handy for holding filament spools in place, and it stiffens the deck further on the wider sizes. - Fits any height - a taller shelf is a case plus case extenders, and it still takes one insert. - No bought hardware - nothing to buy, for either part.

___

WORKS WITH - GEN2 270 Cases: https://than.gs/m/1535458

___

PRINTING

PETG, PCTG or PLA. No supports. 2-3 perimeters, 0.4mm nozzle, 0.2mm layers. Oriented ready to print.
