Gears and pulleys for SG90, MG90s, and 25t servos

Servo splines suck - they're a mess of undocumented, almost-compatible manufacturer specific variants that are too finely featured to print anyway. Instead of trying to match any specific spline geometry I've added some slots so the gear horn can flex to fit the spline regardless of your printer settings. Be warned these will slip at higher torques on full size 25t servos, they're best used with 9g servos or in situations where slip is acceptable. I've generated parts for the following servo splines: - SG90 (apx. 4.8mm)

- MG90s (apx. 4.8mm)

- Generic 25t (apx. 6mm)

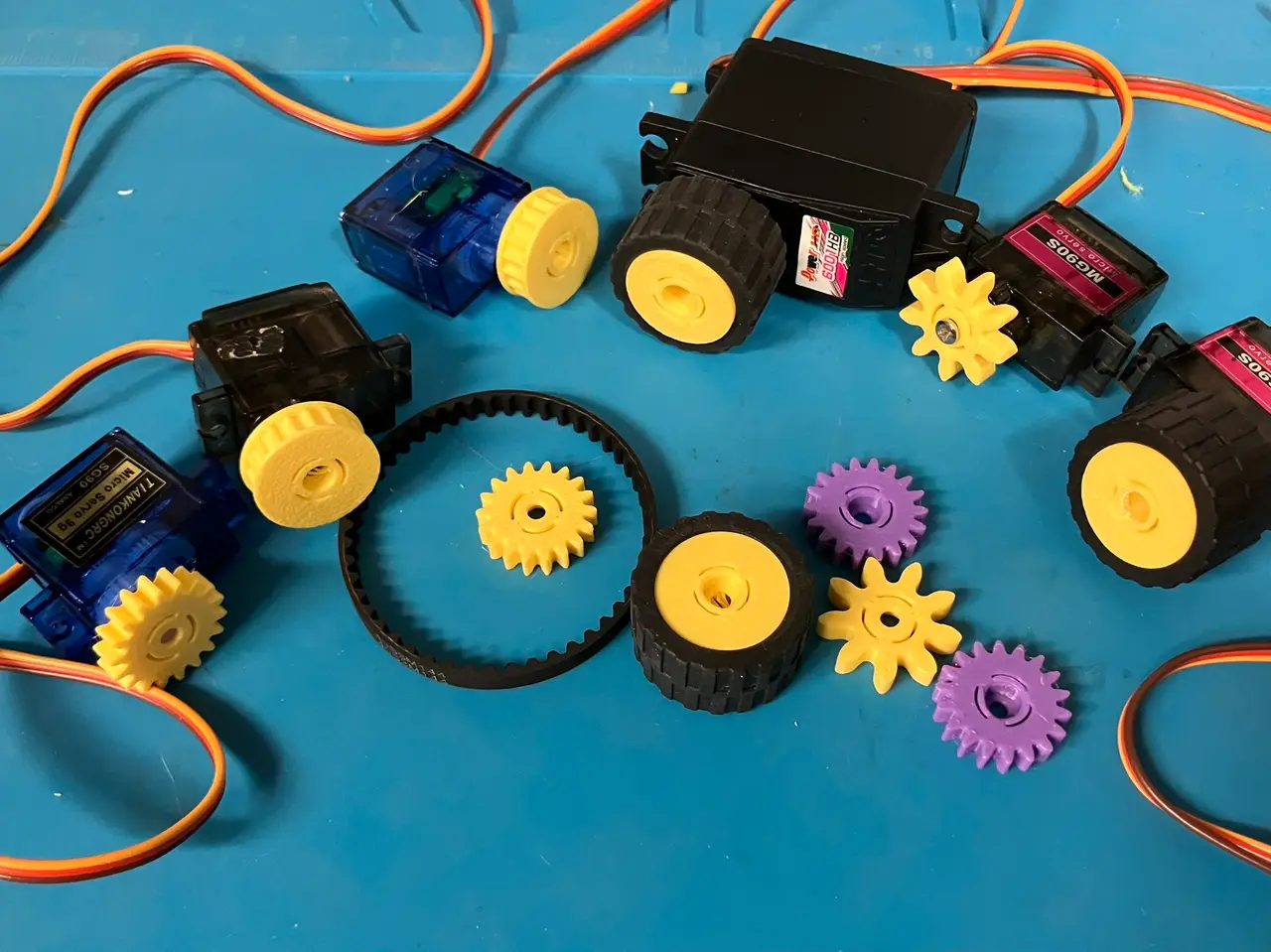

For each spline I've generated the following parts: - 18 tooth module 1mm gears (LEGO size)

- 9 tooth module 2mm gears (2x LEGO size)

- 19 tooth 4mm wide HTD3m pulleys

- Hubs for 24x14mm LEGO tires - https://www.bricklink.com/v2/catalog/catalogitem.page?P=89201

- https://robodome.com/products/lego-tires-10-pack

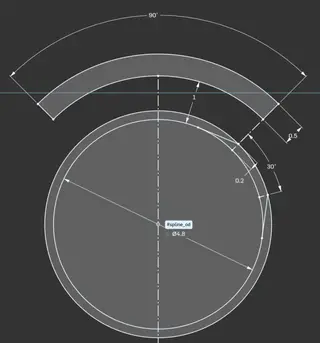

If you need a different part you can model it yourself - I've included a screenshot of the sketch in the photos section.

Drop a make or a donation if this saved you an hour of futzing with spline clearances
