Gear Cage Lamp - Steampunk E27 Lamp Shade with Geared Table and Wall Stand
A two-tier steampunk cage held between two toothed gear crowns, with a riveted middle hoop and a vented, riveted shoulder. Made for an Edison-style filament bulb. The stand is a riveted bracket with two spoked gears, a pipe column with geared flanges and a gear-rimmed base.
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalLicencia de uso privado de Cults3D: puedes imprimirlo para ti. No se permite compartir el archivo ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a VRam3D.
Archivos (5)
- Gear_Cage_Lamp_Arm.stl STL
- Gear_Cage_Lamp_Shade.stl STL
- Gear_Cage_Lamp_Table_Base.stl STL
- Gear_Cage_Lamp_Table_Column.stl STL
- Gear_Cage_Lamp_Wall_Plate.stl STL
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo
A two-tier steampunk cage held between two toothed gear crowns, with a riveted middle hoop and a vented, riveted shoulder. Made for an Edison-style filament bulb. The stand is a riveted bracket with two spoked gears, a pipe column with geared flanges and a gear-rimmed base.
One design, three ways to use it:

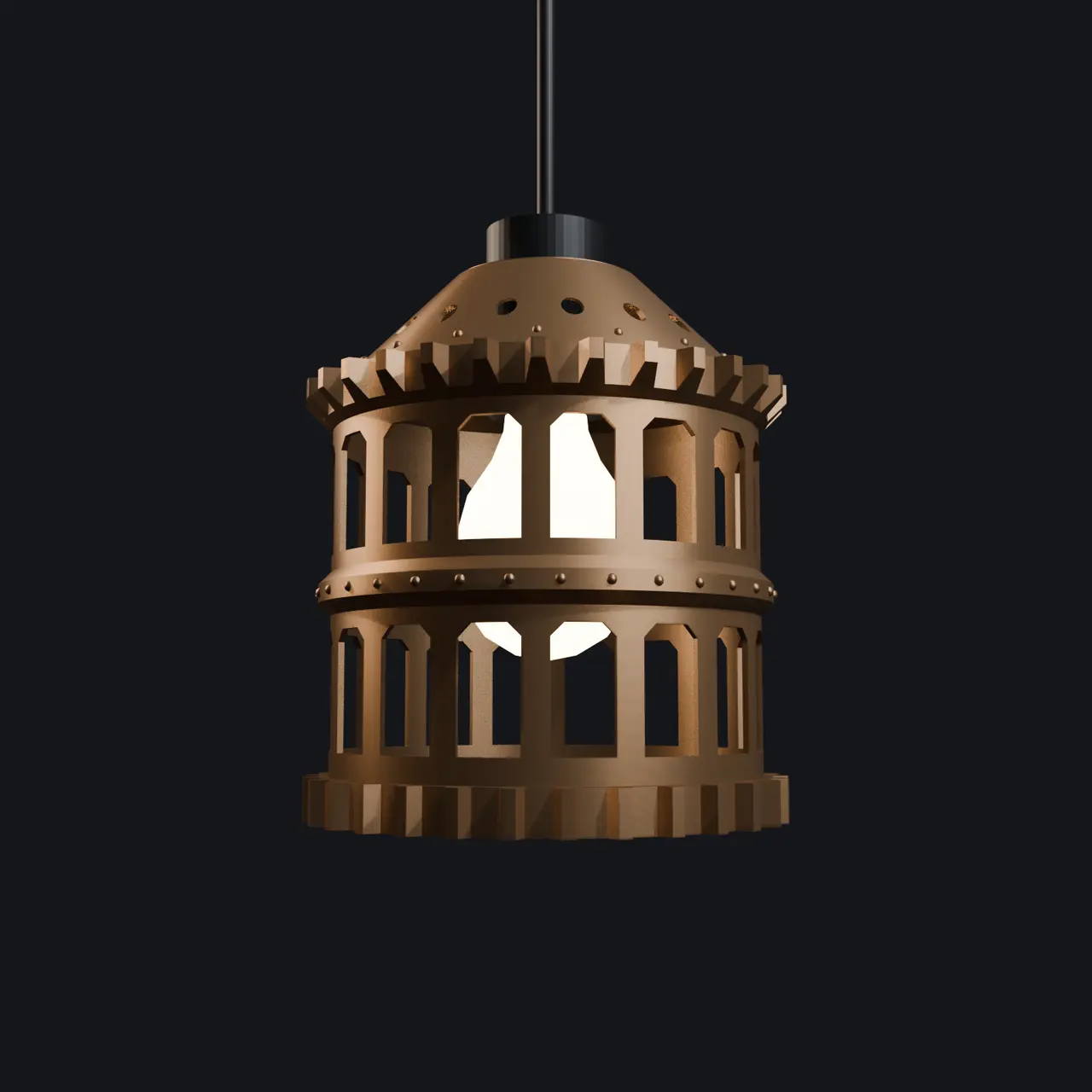

- PENDANT: hang the shade from the ceiling on any standard E27 pendant cord set.

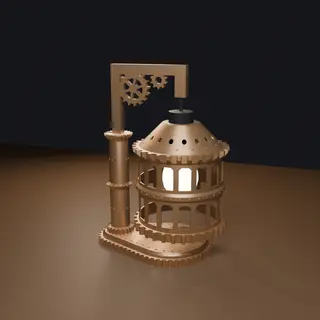

- TABLE LAMP: the shade hangs from the arm of a steampunk stand. The shade hangs over a wide base,
so the lamp is very stable (it needs a tilt of about 24 degrees to tip over).

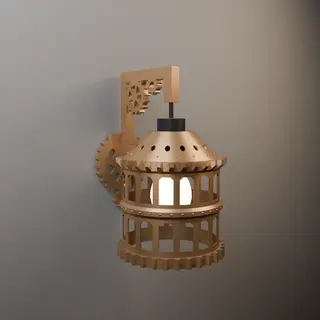

- WALL LAMP: the same arm drops into a wall plate fixed with two screws.
No rewiring, no glue, no screws in the lamp itself: you only need a standard E27 pendant cord set
(cable + lamp holder with shade ring) and an LED bulb. The cable snaps into hidden channels of the

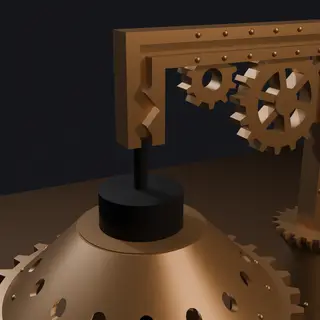

stand, and a zig-zag cable grip at the tip of the arm holds the shade at the height you choose.
Every part prints without supports and is already oriented in the STL files.
WHAT TO PRINT
- Pendant lamp ...... Shade
- Table lamp ........ Shade + Arm + Table_Column + Table_Base
- Wall lamp ......... Shade + Arm + Wall_Plate
PARAMETERS
- Shade: 158 mm diameter x 178 mm high. 2 x 16 windows, 30-tooth gear crowns, 32 rivets on the middle hoop, 16 shoulder vents.
- Stand: riveted bracket with two spoked gears, pipe column with geared flanges, gear-rimmed base, gear-shaped wall plate.
- Mounting hole: 40.5 mm diameter with a 3 mm thick flat clamping area (standard E27 holder
with threaded sleeve and shade ring).
- Table lamp assembled: 229 x 158 x 313 mm (L x W x H), about 810 g printed
including the shade. Static tip-over angle about 24 deg in the weakest direction.
- Wall lamp: projects 209 mm from the wall, 268 mm high in total.
- Joints: 12 x 14 mm rectangular pegs in 12.5 x 14.5 mm sockets (0.25 mm clearance per side).
- Cable channel: snap-in, 5.4 mm mouth / 6.8 mm inside, for round 2-core cords of 6-7 mm.
- Bulb: A60 LED (60 x 108 mm) or LED filament ST64 / G80; at least 24 mm from glass to plastic.
- Approximate filament: shade 236 g, arm 58 g, column 101 g,
base 303 g, wall plate 67 g.
Descripción original del autor, publicada en Cults3D.
