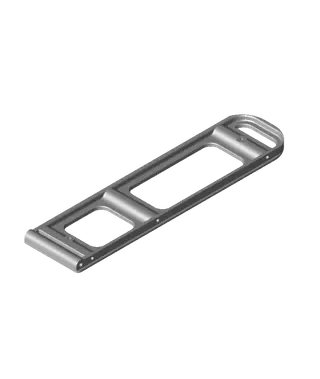

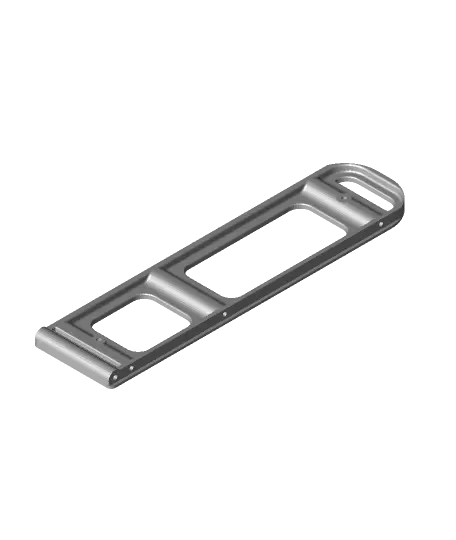

GAUI X3 Bottom Plate
Nothing fancy about it, just an option in case you break your bottom plate and don't feel like buying one, but you just happen to own a 3D printer.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Keith W.
Archivos (3)
- GAUI X3 Bottom Plate M2 heatserts (M2 x 3mm OD x 3mm Deep).stl STL · 524 KB
- GAUI X3 Bottom Plate M2 heatserts (M2 x 4mm OD x 4mm Deep).stl STL · 524 KB
- GAUI X3 Bottom Plate NoHeatserts.stl STL · 515 KB
- Categoría
- Repuestos
- Formatos
- STL
- Descargas
- 8
- Publicado
Sobre este modelo
Nothing fancy about it, just an option in case you break your bottom plate and don't feel like buying one, but you just happen to own a 3D printer.
Three versions available: No heatserts (no additional hardware required) M2 heatserts (M2 x 4mm OD x 4mm Deep) M2 heatserts (M2 x 3.5mm OD x 3mm Deep)

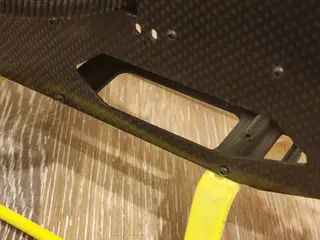

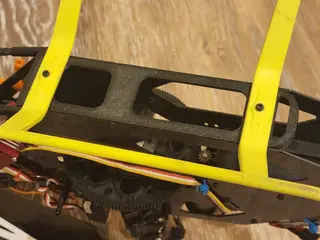

The heatserts are only used for the skid attachment, all of the frame attachments are still using the self tapping screws that the GAUI uses. For the heatsert versions, two M2x8 screws are required for skid attachment. For the no-heatsert version, two M2x8 self tappers (same that GAUI uses) are required. Machine thread M2x8 will work as well, though hold won't be as strong.
Descripción original del autor, publicada en Thangs.
