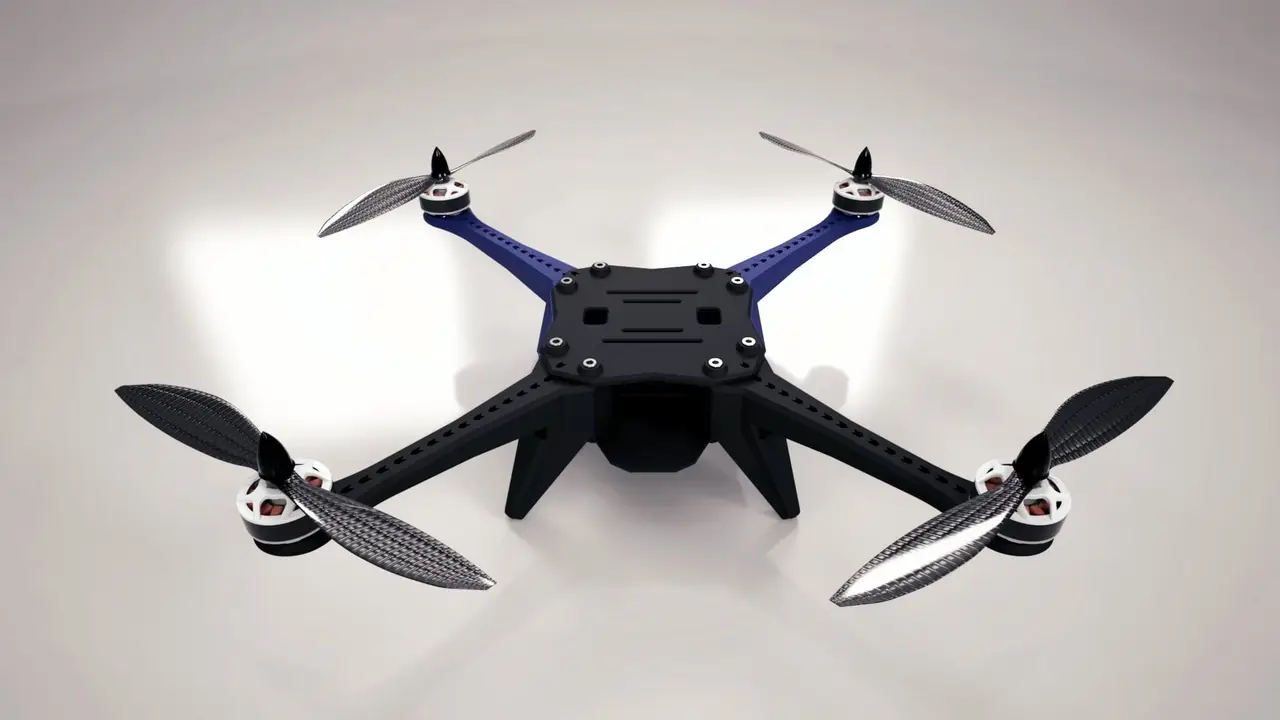

Garud-500 DIY Drone
por Varun Heta en Thingiverse
Garud-500 is a fully 3D Print ready DIY Drone Design kit, specially developed for enthusiasts who dream to build their very first custom drone using 3D Printing. This Garud-500 can be 3D printed in commonly used PLA or ABS material and can be assembled without any hassles. The main frame board i.e..
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Varun Heta.
- Categoría
- Repuestos
- Formatos
- STL
- Descargas
- 18,394
- Publicado
Sobre este modelo

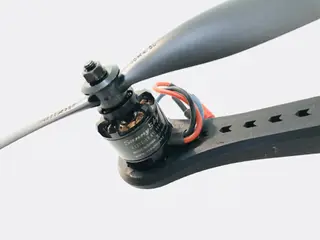

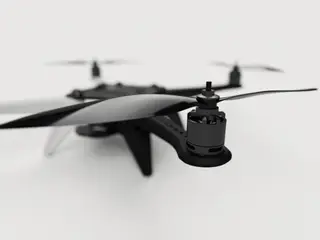

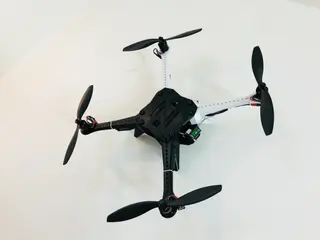

Garud-500 is a fully 3D Print ready DIY Drone Design kit, specially developed for enthusiasts who dream to build their very first custom drone using 3D Printing. This Garud-500 can be 3D printed in commonly used PLA or ABS material and can be assembled without any hassles. The main frame board i.e. Top & Bottom Plate are designed to bear excessive forces during acrobatic flights while the arms are designed with landing gears to reduce additional connecting weight & prevent damage during landing. Garud-500 can be 3d Printed with below print specifications: - Layer Height: 200 - 300 Microns - Infill: 30% (50% for more strength) - Infill Pattern: Rectilinear - Shell Thickness: 0.8mm - 1.2mm - No Support required - Rafts Enabled - Temperature - 210 C PLA | 230 C ABS
BOM - (Choose your parts wisely) - 4 x Arms (3D Printed) - 1 x Top Plate (3D Printed) - 1 x Bottom Plate (3D Printed) - 16 x M5 Bolts 20mm length - 16 x M5 Nuts - 4 x Brushless Motors (2206 - 3600 Series | 700KV - 1200 KV) - 4 x ESC’s (30A - 40A) - 4 x Propellers (8045 | 9050 | 9060 | 1045 | 1050) - 1 x Flight Controller (Naze 32 | Open CC3D | APM 2.7 | Pixhawk | DJI Naza V2) - 1 x Lipo Battery (2200mah - 5000mah | 3S - 4S) - 1 x Radio Controller (Taranis | Flysky Fs-i6)
