Garden Irrigation Spray System - Garten Bewässerung System

Hi

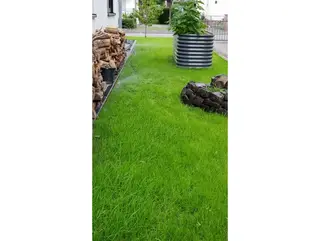

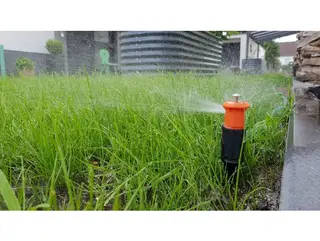

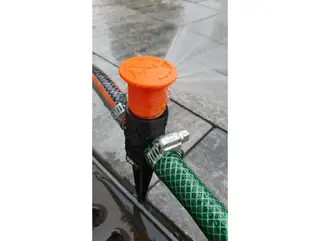

here you will find a garden irrigation system like the manufacturer gardena has. Free under the motto "Why buy, when you can print it" ;-) I have designed it modularly and as GlueEdition so that you can connect different ground holders, middle parts with 1-3 direct connections / gardena coupling or different spray heads. the spray heads are still in development. However, angles of 45°, 180°, 270° and 360° are still available. I was amazed how far the spray head sprays with 2.5 - 3 bar water pressure, so a dosage with a screw in the head is available.

Preview:

Support material:

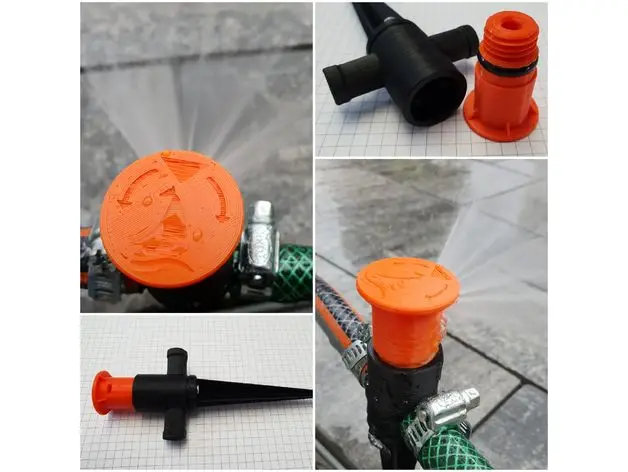

The support material for the spray head is already included in the stl files ( please print the head upside down ). The fine tubes at the place where the o-ring goes in and at the spray exit is can be easily cut out with a cutter knife.

For the middle section only support material is required from the base plate.

You need:

Printed parts ;-)

Screws 3,5 x12 or 3,5x15

O-ring inner diameter Ø 12 x 3,5 mm NBR 70 (https://www.ebay.de/itm/401009056492 )

M4x 25mm dosage screw

Please note that the development is still in progress. So stay tuned!!!!

Update 18.05.20

- Now there is a middle section "T" with 3 feed lines offset at 90° to each other as a glued edition. With this you can also place a sprinkler on a side of a bed and u can connect a 90° supply line.

Added:

- middle_section_3con180_v1_GLUE.stl

- middle_section_3con180_v1.stl

Update 25.04.20

- Now there is a middle section with 2 feed lines offset at 90° to each other as a glued edition. With this you can also place a sprinkler in a corner of a bed and you will not have any problems with the supply lines.

Added:

- middle_section_2con90_v1_GLUE.stl

Update 31.08.18

- From now on there is a spray head with two 90° opposite exits as some people want. This means that even things opposite each other can be cast.

Added:

- sprayhead_v2_9090dg.stl

- sprayhead_v2_9090dgNOdosage.stl

Update 30.08.18

- A GlueEdition is now available. With this, the connections can now be glued to the centre section using acetone. This has two advantages. Anyone can fit any center section with a connector and there is no need to print overhangs. ( No more support needed for the middle section)

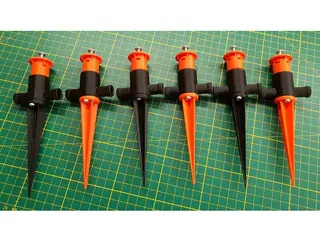

I have attached some more pictures of the GlueEdition, which I have already tested. Works out great in my opinion.

Added:
