Garden Hose helpers
por gillis en Printables
Gardena compatible
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a gillis.
Archivos (42)
- WHouseFemaleFemale.3mf 3MF · 525 KB
- WHouseFemaleDeadEnd.3mf 3MF · 339 KB
- WHouseFemaleFemale.stl STL · 1,0 MB
- WHouseFemaleDeadEnd.stl STL · 851 KB
- WHouseKeyholeLock.stl STL · 558 KB
- WHouseWaterHose.3mf 3MF · 348 KB
- WHouseWaterStopperGasket.3mf 3MF · 334 KB
- HoseClamp_17mm.3mf 3MF · 184 KB
- Hose_Repair.3mf 3MF · 106 KB
- WHouseWaterHose.stl STL · 629 KB
- WHouseKeyholeLock.stl STL · 558 KB
- WHouseWaterStopper.stl STL · 281 KB
- WHouseWaterStopperGasket.stl STL · 1,6 MB
- Hose_Repair.stl STL · 355 KB
- HoseClamp_16mm.stl STL · 747 KB
- HoseClamp_17mm.stl STL · 704 KB
- HoseClamp_18mm.stl STL · 751 KB
- HoseClamp_19mm.stl STL · 704 KB
- HoseClamp_20mm.stl STL · 710 KB
- HoseClamp_21mm.stl STL · 690 KB
- HoseClamp_22mm.stl STL · 721 KB
- O-Ring_05020.stl STL · 1,6 MB
- O-Ring_11025.stl STL · 1,3 MB
- O-Ring_16025.stl STL · 1,2 MB
- O-Ring_18025.stl STL · 1,1 MB
- O-Ring_18035.stl STL · 1,2 MB
- Adaptor_BathroomFaucet24mmToGardena.stl STL · 3,7 MB
- Adaptor_KitchenFaucet22mmToGardena.stl STL · 3,4 MB
- BathroomFaucet24mmWithGardenaMale.stl STL · 3,4 MB
- Gardena_coupling_male.stl STL · 5,6 MB
- GardenaCoupling_3Way.stl STL · 3,0 MB
- GardenaCoupling_2Way.stl STL · 2,3 MB
- KitchenFaucet22mmWithGardenaMale.stl STL · 2,2 MB
- Plug_Gardena_coupling.stl STL · 2,2 MB
- Plug_Gardena_thread_coupling.stl STL · 2,9 MB
- BathroomFaucet24mmWithGardenaMale.3mf 3MF · 894 KB
- Gardena_coupling_male.3mf 3MF · 1,3 MB
- GardenaCoupling_2Way.3mf 3MF · 549 KB
- GardenaCoupling_3Way.3mf 3MF · 784 KB
- KitchenFaucet22mmWithGardenaMale.3mf 3MF · 559 KB
- Plug_Gardena_coupling.3mf 3MF · 459 KB
- Plug_Gardena_thread_coupling.3mf 3MF · 764 KB
- Categoría
- Jardín
- Formatos
- 3MF, STL
- Descargas
- 1,655
- Publicado
Sobre este modelo

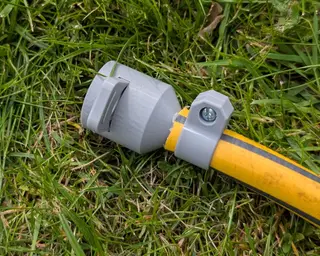

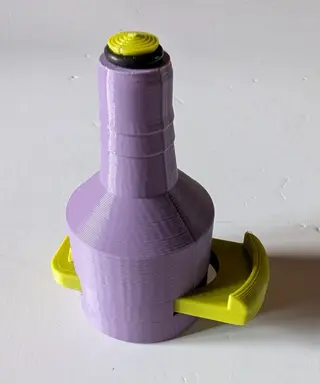

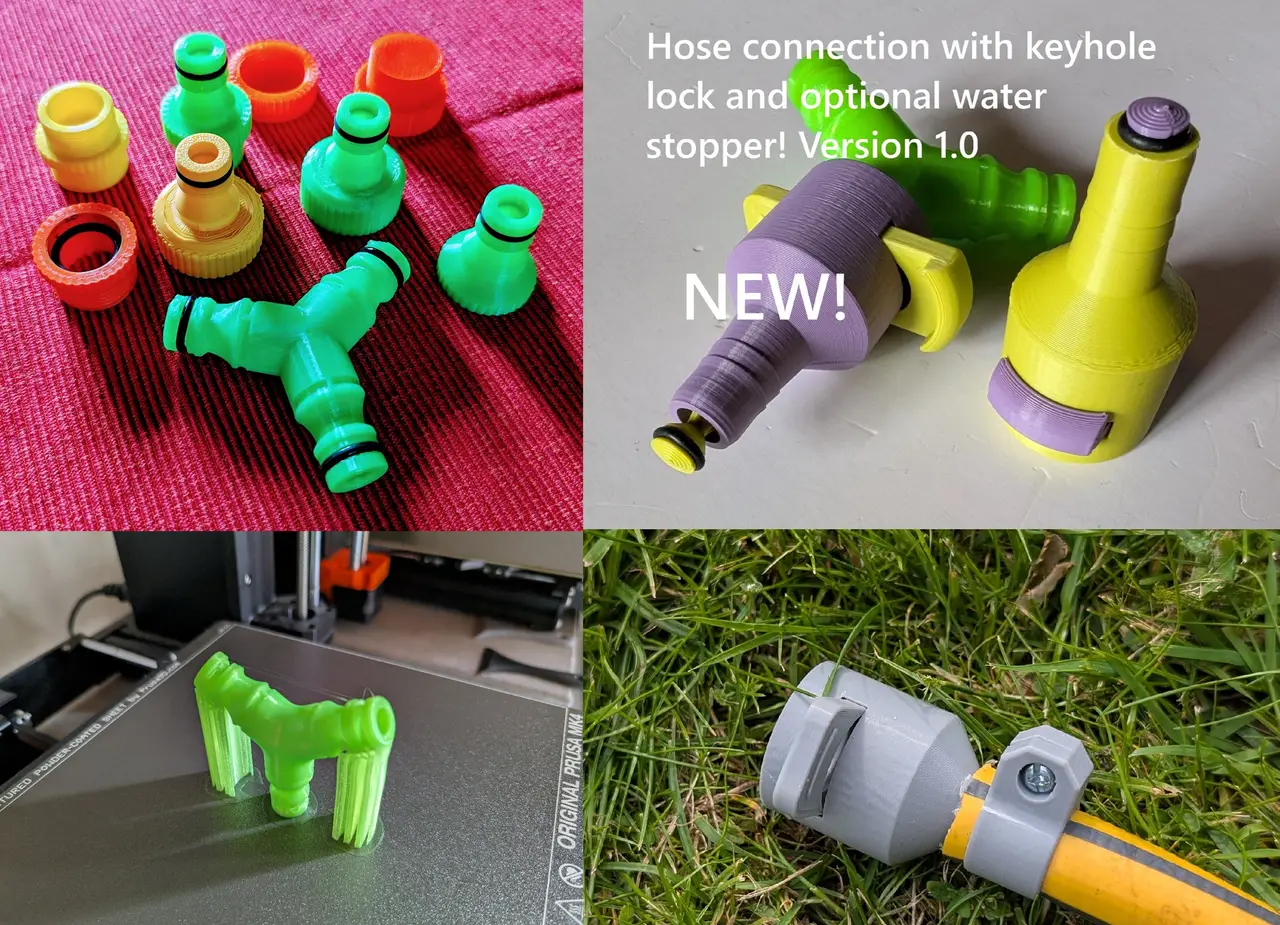

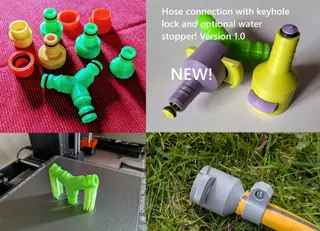

2025-jun-23 Added 3MF_Female and STL_Female folders 2025-jun-22 Well, the competition’s over, and as usual, I won absolutely nothing—BUT I’m carrying on like before, and here’s my latest: a hose coupling with a keyhole lock! This is Version 1.00, where the hose still needs to be secured with a hose clamp. You can either use a traditional clamp or print your own (attached, just grab an M4 screw and nut to fasten it). The keyhole lock requires slight force during insertion due to tight tolerances. Both the water housing part and the water stopper part have supports that need to be removed with pliers. 2025-may-17 Added GardenaCoupling_2Way 2025-may-18 Replaced GardenaCoupling_3Way 3mf-file 2025-may-19 Updated this description with info about the o-rings Added folder STL_O-Rings, if you can print flex-filament

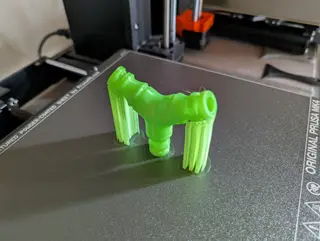

See the .3mf files for print settings

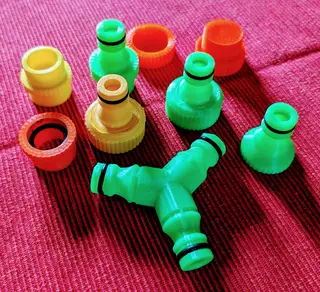

Some useful coupling among with plugs etc Useful O-rings Inner diameter 11 mm with section 2.5 mm (gives outer diameter 16mm) Inner diameter 16 mm with section 2.5 mm (gives outer diameter 21mm) Inner diameter 18 mm with section 2.5 mm (gives outer diameter 23mm) Inner diameter 18 mm with section 3.5 mm (gives outer diameter 25mm)
I have tested every connector (see the .3mf files) (except the 3-way one) – no leaks!
Descripción original del autor, publicada en Printables.
