Galileo escapement clock
por Jacques Favre en MyMiniFactory
This is my take on Galileo's idea of a pendulum clock.
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalMyMiniFactory - Credit - Remix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a Jacques Favre.
Archivos (34)
- anchorholder.stl STL
- bignut.stl STL
- drum.stl STL
- endnut.stl STL
- escaperatchet.stl STL
- escapewheel.stl STL
- finger.stl STL
- flange.stl STL
- Gear 64 8.Stl STL
- Gear32 10.Stl STL
- gear40minutes.stl STL
- gear40rewind.stl STL
- Gear60 8.Stl STL
- gearm2z8.stl STL
- Gearz8 10.Stl STL
- Gearz8 20.Stl STL
- hourgear.stl STL
- hourhand.stl STL
- minhand.stl STL
- pendul1.stl STL
- rachetholder.stl STL
- ratchet.stl STL
- rewindflange.stl STL
- rewindgear.stl STL
- rewindkey.stl STL
- romanface.stl STL
- screw.stl STL
- shaftz8.stl STL
- smallflange.stl STL
- smallnut.stl STL
- spacer.stl STL
- spacer1.stl STL
- spacer4.stl STL
- spacer6.stl STL
- Categoría
- Educación
- Formatos
- STL
- Descargas
- 3,137
- Publicado
Sobre este modelo

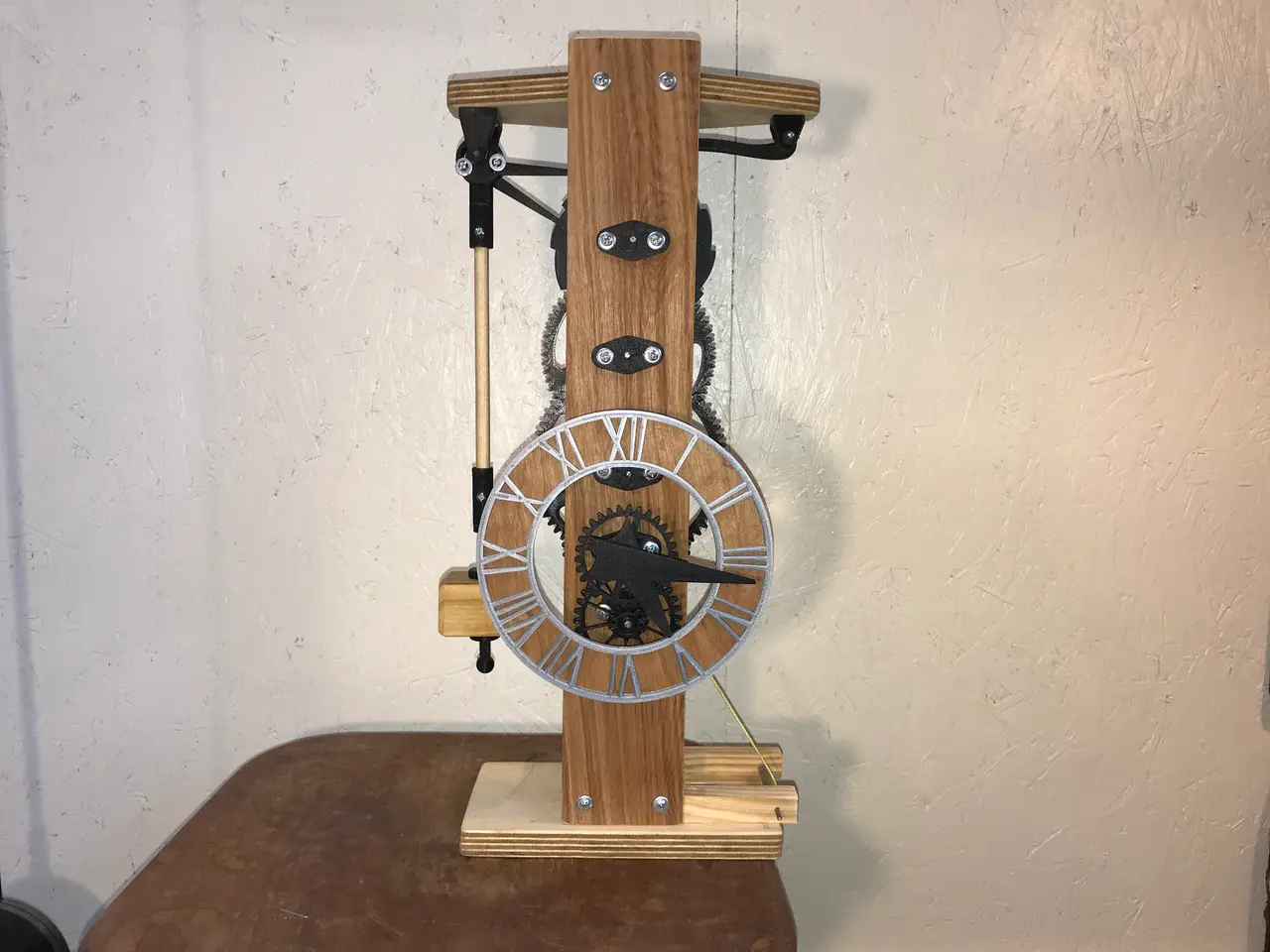

This is my take on Galileo's idea of a pendulum clock.
It is inspired from that diagram that can be found on the internet.
It is fully functional, runs for an hour or more depending on distance from the ground. And it does have a rewind key!
See it live here:
https://www.youtube.com/watch?v=9TbkEIbFsKk

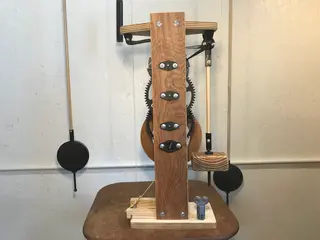

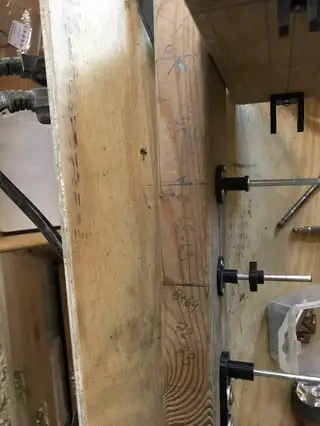

It is about 20" heigh, 50 cm,too big big to print, so I made the frame with wood.

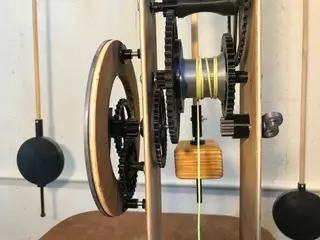

Steel shafts are 3/16, 5mm would work too, you will need some screws, a couple small bolts, washers, glue...
Timming will take some adjusting, i started with a big block of wood, then shaved it down until it worked close to 1 tick per second.
The way it is designed make everything adjustable. strat from the top, make sure all wheels move freely.
The weight I used is about 1.5 kg, or 3 pounds.
The weight, the pendulum, the lenght of the pendulum might vary, but you should have a good starting point here
Descripción original del autor, publicada en MyMiniFactory.
