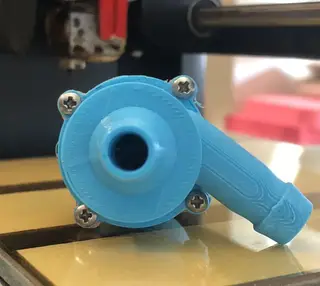

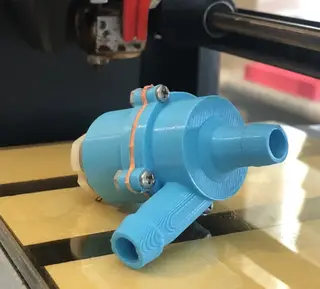

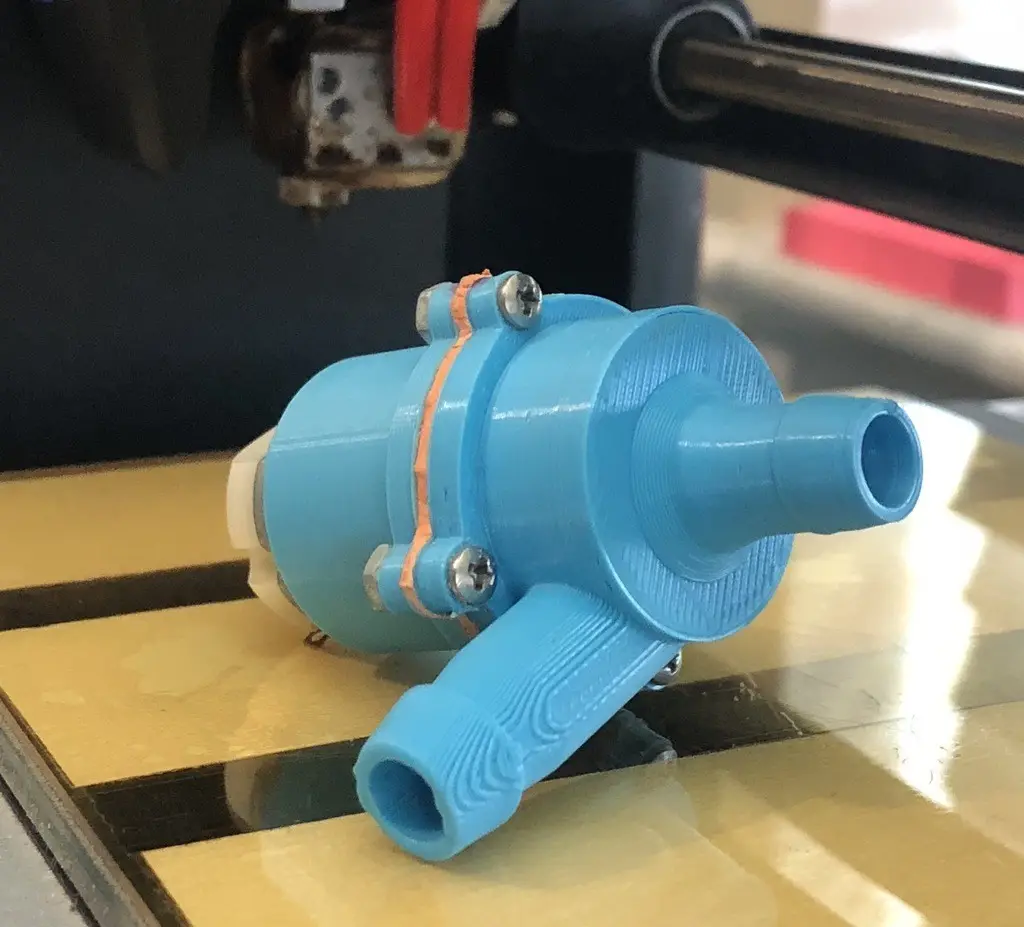

Functional Micro Water Pump
por arron_mollet22 en Cults3D
This is a functional micro centrifugal water pump that has been tested and works. It is not self priming but certainly can put water well once it gets going. The design is exceptionally compact only taking up about 2"x1"x1". This is designed to be used with 5/16 vinyl tubing and a compact motor t...
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a arron_mollet22.
Archivos (3)
- Pump_Impellar.stl STL
- Pump_InOut.stl STL
- Pump_Motot_Housing.stl STL
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 4,100
- Publicado
Sobre este modelo

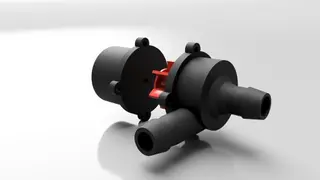

This is a functional micro centrifugal water pump that has been tested and works. It is not self priming but certainly can put water well once it gets going. The design is exceptionally compact only taking up about 2"x1"x1". This is designed to be used with 5/16 vinyl tubing and a compact motor to drive the pump. I will include amazon links to the specific parts that it was designed for.
5/16 ID Vinyl Tubing (10ft): https://amzn.to/2DmmpEF
5/16 ID Vinyl Tubing (25/50ft): https://amzn.to/2zmOuI6
0-6V DC Motor: https://amzn.to/2Dk9jYz

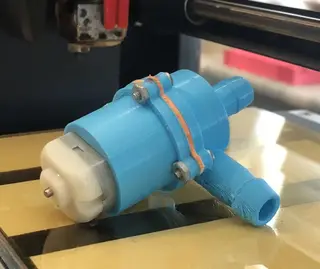

I also cut out a rubber gasket to create a better seal to avoid the pump leaking.
M2 Metric Hardware is what was meant to be used.
Hardware: https://amzn.to/2xtGHGK
The 3rd picture in the picture section is actually a .gif video of the pump in action. If it doesn't show up just click the expanded view icon in the top right corner then click "view original".
