Fully 3D Printed Mechanical Clock
Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:6227085.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesLICENSE
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a George E.
Archivos (17)

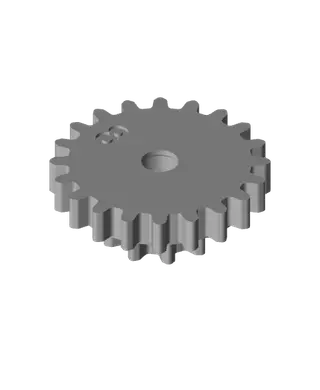

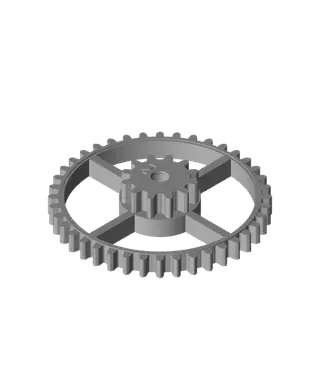

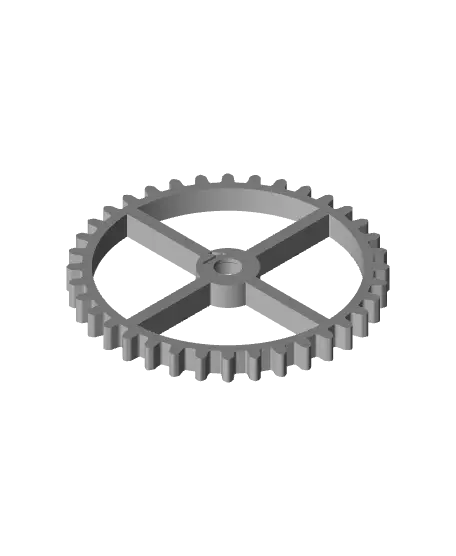

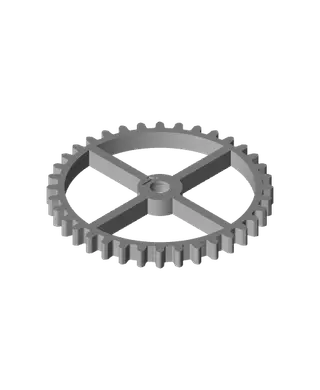

- Gear_1hour_gear.stl STL · 501 KB
- Gear_2.stl STL · 809 KB
- Gear_8.stl STL · 480 KB
- dial.stl STL · 1 KB
- frame.stl STL · 779 KB
- frame_2.stl STL · 129 KB
- gear_3.stl STL · 693 KB
- gear_5.stl STL · 670 KB
- gear_6.stl STL · 774 KB
- gear_7second_gear.stl STL · 875 KB
- housing_gear_4minute_gear.stl STL · 626 KB
- new_escapement_gear_9.stl STL · 498 KB
- new_mainspring.stl STL · 401 KB
- new_palace.stl STL · 83 KB
- ratchet.stl STL · 54 KB
- ratchet_key.stl STL · 45 KB
- ratchet_spring.stl STL · 1 KB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 164
- Publicado
Sobre este modelo
Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:6227085.

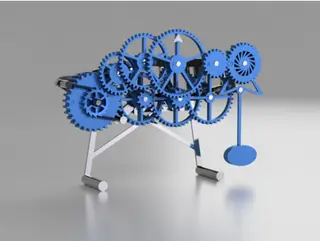

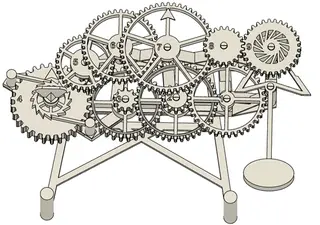

this is my completed project of a fully mechanical, 3D printed clock.
I decided to do an EPQ project, and my aim/title of my project was to make a mechanical clock, which in the course of about 5 months, I went from an idea, to planning and researching, and then designing and printing, as well as prototyping a clock out.
its definitely not the best, I unfortunately didn't do my gear ratios correctly when designing so some gears are out of time, and it only runs for about 5 mins before stopping because of friction (for me), but its a cool concept to show what can be built using a 3D printer, and to show different design techniques, as well as to incorporate unique ways that 3D prints can be used.
please have fun printing this out and assembling it, and also feel free to make any modifications to this, this is still a work in progress, and I would like to see what other people do to this.
