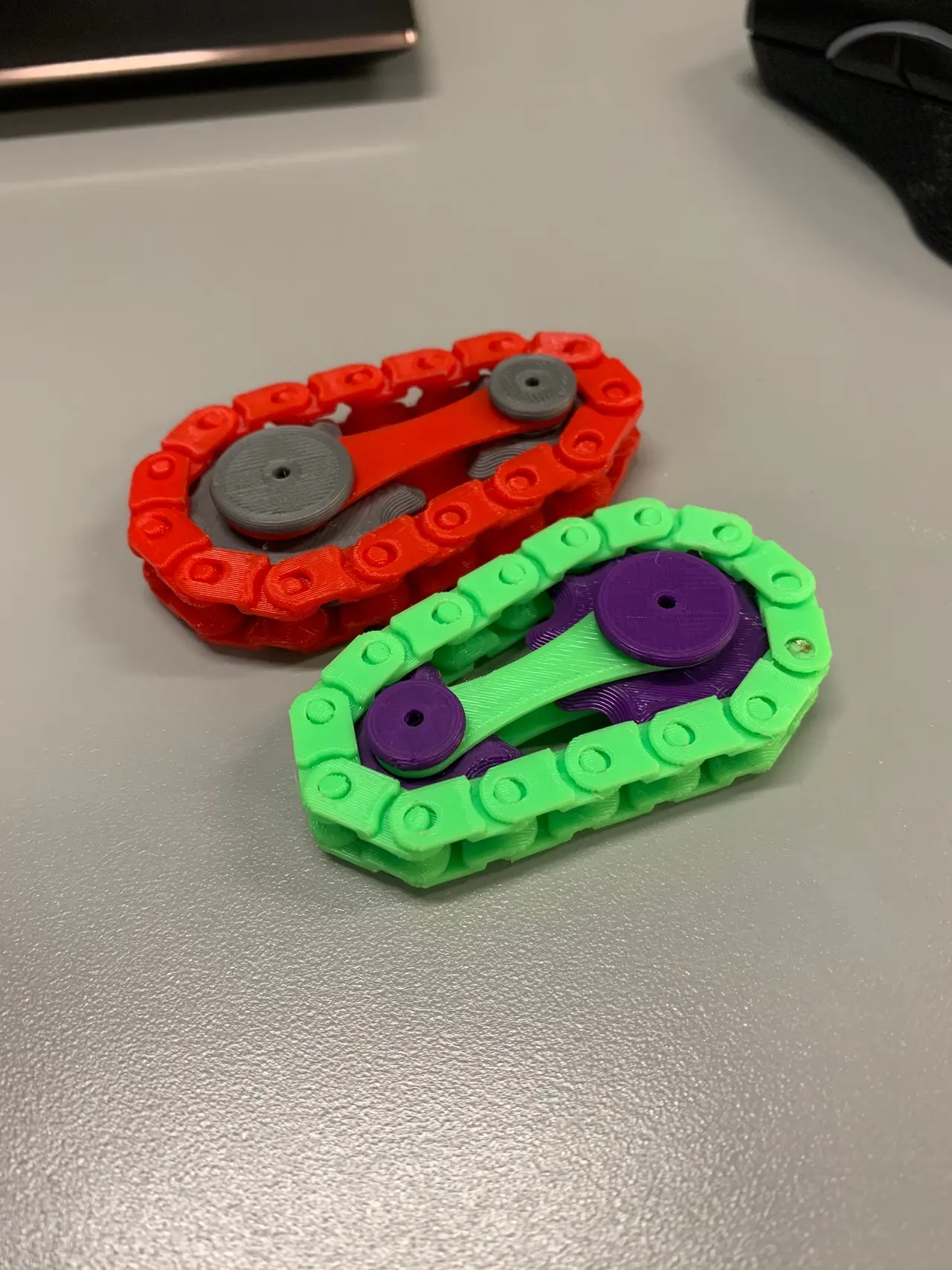

Fully 3D Printed Bike Chain Gear Fidget Toy/Spinner
por Joshua Jones en Printables
This is an easy to print, easy to assembly fidget toy featuring a working chain, sprockets with print in place bearings.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Joshua Jones.
Archivos (9)
- 10 tooth sprocket .225 tolerance.stl STL · 4,0 MB
- 7 tooth sprocket .225 tolerance.stl STL · 3,2 MB
- 7 tooth sprokcet .15 tolerance.stl STL · 3,2 MB
- 10 tooth sprocket .15 tolerance.stl STL · 4,0 MB
- Chain Spinner arm.stl STL · 155 KB
- Single link Chain.stl STL · 2,1 MB
- Chain Spinner large cap.stl STL · 2,1 MB
- Chain Spinner small cap.stl STL · 2,1 MB
- 15 link print in place chain.stl STL · 32,0 MB
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 5,519
- Publicado
Sobre este modelo

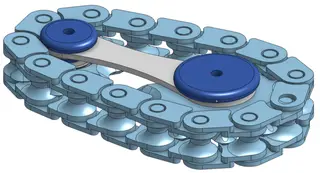

This is my take on a fidget toy I saw online. It is easy to print, even with bad printers, requires no support and works without lubrication. Parts list: - 15 chain links (can be printed together or individually) - A 10-tooth sprocket with rotating bearing (print-in-place) - A 7-tooth sprocket with rotating bearing (print-in-place) - 2 chain spinner arms - 2 large caps - 2 small caps
Print Instructions: Every part should be printed without supports. There are TWO different clearances for the sprockets, 0.225 in and 0.15 inches. The large clearance should work for all printers. The arms have a slight raised edges around the holes on one side so make sure that it is printed in the correct orientation.
Post- Processing and Assembly: Note: The chains may require some light sanding to get it to move freely Assemble the sprockets first. Line up the arms with the corresponding sprockets. Use the Caps to snap the pieces together. Then wrap the chain around and connect the ends together. Other Notes: - It can be printed at .28mm layer height - I have had success down to 85% scale
