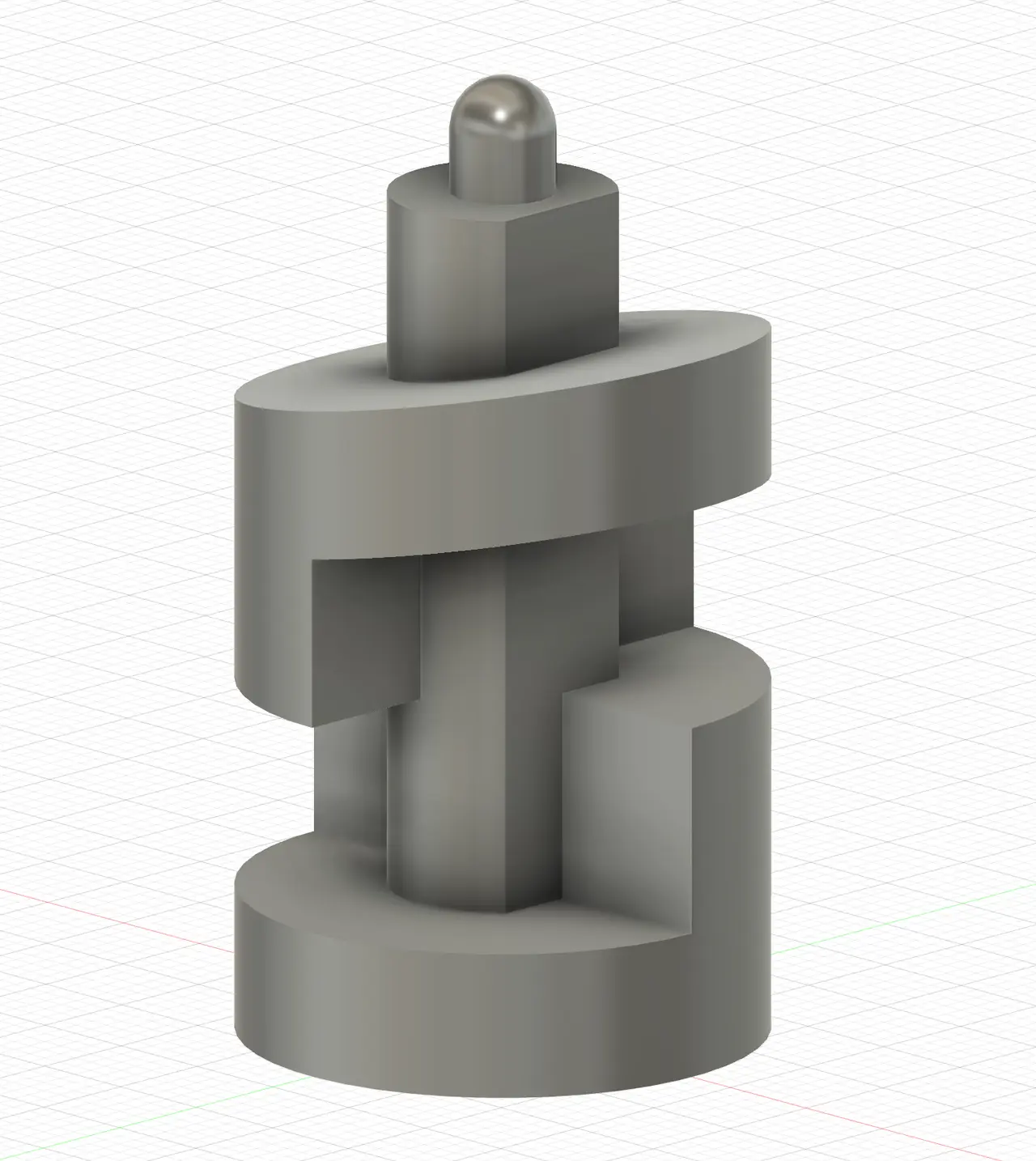

Frigidaire Damper Control Assembly Switch - 241600902 — modelo 3D

Frigidaire Damper Control Assembly Switch - 241600902

por Nick Strizver en Thingiverse

Direct replacement for switch inside damper control assembly (part number 241600902) for Frigidaire refrigerators. The switch that controls the damper in my refrigerator broke, preventing the motor from turning and opening and closing the damper. This is a direct replacement for that part, that's...

Descargar gratis Ver en Thingiverse

Todos los archivos (2) en un ZIP

Licencia

Uso comercial permitido

CC BY-SA 4.0 — Atribución, compartir igual

Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Nick Strizver.

Archivos (2)
Categoría
Repuestos
Formatos
F3D, STL
Descargas
0
Publicado

Sobre este modelo

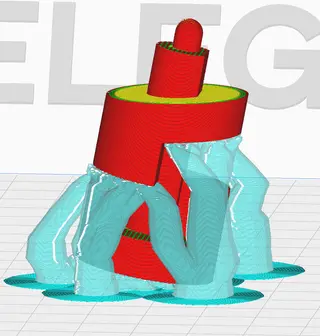

Direct replacement for switch inside damper control assembly (part number 241600902) for Frigidaire refrigerators. The switch that controls the damper in my refrigerator broke, preventing the motor from turning and opening and closing the damper. This is a direct replacement for that part, that's more sturdy than the original. When replacing, ensure the part is seated all the way down on the motor, otherwise the damper door won't close all the way. I printed the part with the top surface parallel to the print bed so the surface that the damper pin rides on is smooth, as pictured in the second photo. The third photo is the original part. The white / blue plastic is where the part broke. I attempted gluing in some plastic as a stopgap fix if my model didn't work. Fourth picture is the part installed in the damper assembly.

Descripción original del autor, publicada en Thingiverse.
