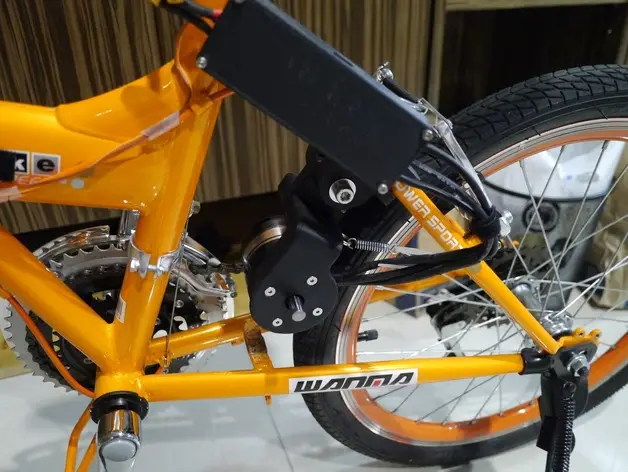

Friction Drive E-Bike
por Macaca en MyMiniFactory

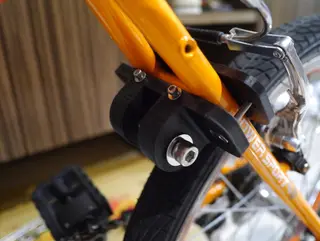

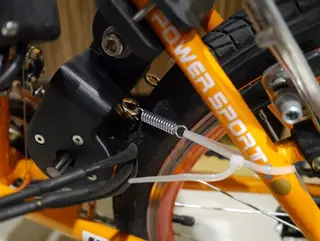

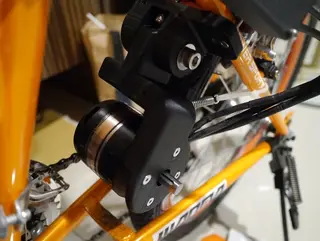

This design is for bikes that have no extra space under the seat tube for mounting a traditional friction drive system. Constant friction between motor and tire is maintained by two 1.2mm springs, and adjusted with zip ties on the other end of each spring.
Licencia
Solo uso personalMyMiniFactory - Credit - Remix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a Macaca.
- Categoría
- Jardín
- Formatos
- STL
- Descargas
- 238
- Publicado
Sobre este modelo
This design is for bikes that have no extra space under the seat tube for mounting a traditional friction drive system. Constant friction between motor and tire is maintained by two 1.2mm springs, and adjusted with zip ties on the other end of each spring.
BUILD INSTRUCTIONS
https://gum.co/LqmWJ
PART LIST

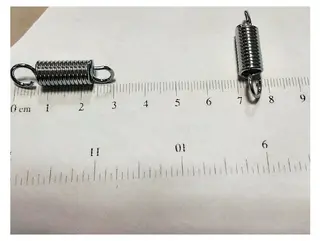

Motor https://amzn.to/35n3PF8 VESC https://amzn.to/2GZC4th or https://amzn.to/2PLDMkG Throttle Grip https://amzn.to/2H1r5Q7 Arduino for Analog to PWM converting https://amzn.to/2H1Ro92 Tension Springs
1pcs M8 x 60mm bolt 2pcs M3 x 30mm bolts 4pcs M4 x 35mm bolts 4pcs M4 nyloc nuts
Video https://youtu.be/CECEI_Vuol0
Descripción original del autor, publicada en MyMiniFactory.
