FreshDial Bag Clip-Sliding Pantry Seal
FreshDial solves two small kitchen problems with one print: keeping an opened bag closed and remembering when it was opened. Fold the bag over the removable sealing rod, slide the C-channel across, and set the month and day on the round handle. The indexed outer day ring provides 31 positions; the i
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Tim A.
Archivos (44)
- FreshDial_120mm_loose_Assembled_Preview.3mf 3MF · 6,4 MB
- FreshDial_120mm_loose_Print_Layout.3mf 3MF · 3,5 MB
- FreshDial_120mm_standard_Assembled_Preview.3mf 3MF · 6,4 MB
- FreshDial_120mm_standard_Print_Layout.3mf 3MF · 3,5 MB
- FreshDial_160mm_standard_Assembled_Preview.3mf 3MF · 6,4 MB
- FreshDial_160mm_standard_Print_Layout.3mf 3MF · 3,5 MB
- FreshDial_80mm_standard_Assembled_Preview.3mf 3MF · 6,4 MB
- FreshDial_80mm_standard_Print_Layout.3mf 3MF · 3,5 MB
- FreshDial_120mm_loose_Channel_Handle.step STEP · 315 KB
- FreshDial_120mm_loose_Rod_4p8.step STEP · 93 KB
- FreshDial_120mm_standard_Channel_Handle.step STEP · 315 KB
- FreshDial_120mm_standard_Rod_4p8.step STEP · 93 KB
- FreshDial_120mm_standard_Rod_5p0.step STEP · 93 KB
- FreshDial_160mm_standard_Channel_Handle.step STEP · 315 KB
- FreshDial_160mm_standard_Rod_4p8.step STEP · 93 KB
- FreshDial_80mm_standard_Channel_Handle.step STEP · 314 KB
- FreshDial_80mm_standard_Rod_4p8.step STEP · 93 KB
- FreshDial_Day_Ring_1-31.step STEP · 5,2 MB
- FreshDial_Dial_Retainer.step STEP · 37 KB
- FreshDial_Month_Disk_1-12.step STEP · 1,4 MB
- FreshDial_coupon-rod-4p8.step STEP · 47 KB
- FreshDial_coupon-sleeve-extra-loose.step STEP · 44 KB
- FreshDial_coupon-sleeve-loose.step STEP · 44 KB
- FreshDial_coupon-sleeve-standard.step STEP · 44 KB
- FreshDial_120mm_loose_Channel_Handle.stl STL · 175 KB
- FreshDial_120mm_loose_Rod_4p8.stl STL · 66 KB
- FreshDial_120mm_standard_Channel_Handle.stl STL · 175 KB
- FreshDial_120mm_standard_Rod_4p8.stl STL · 66 KB
- FreshDial_120mm_standard_Rod_5p0.stl STL · 66 KB
- FreshDial_160mm_standard_Channel_Handle.stl STL · 175 KB
- FreshDial_160mm_standard_Rod_4p8.stl STL · 66 KB
- FreshDial_80mm_standard_Channel_Handle.stl STL · 175 KB
- FreshDial_80mm_standard_Rod_4p8.stl STL · 66 KB
- FreshDial_Day_Ring_1-31.stl STL · 9,9 MB
- FreshDial_Dial_Retainer.stl STL · 63 KB
- FreshDial_Month_Disk_1-12.stl STL · 2,0 MB
- FreshDial_coupon-rod-4p8.stl STL · 2 KB
- FreshDial_coupon-sleeve-extra-loose.stl STL · 2 KB
- FreshDial_coupon-sleeve-loose.stl STL · 2 KB
- FreshDial_coupon-sleeve-standard.stl STL · 2 KB
- AI_DISCLOSURE_AND_IMAGE_NOTES.md MD
- PHYSICAL_TEST_CHECKLIST.md MD
- PRINT_AND_ASSEMBLY.md MD
- VALIDATION_REPORT.md MD
- Categoría
- Jardín
- Formatos
- 3MF, STEP, STL, MD
- Descargas
- 0
- Publicado
Sobre este modelo

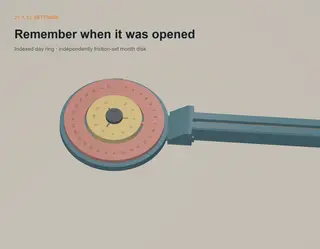

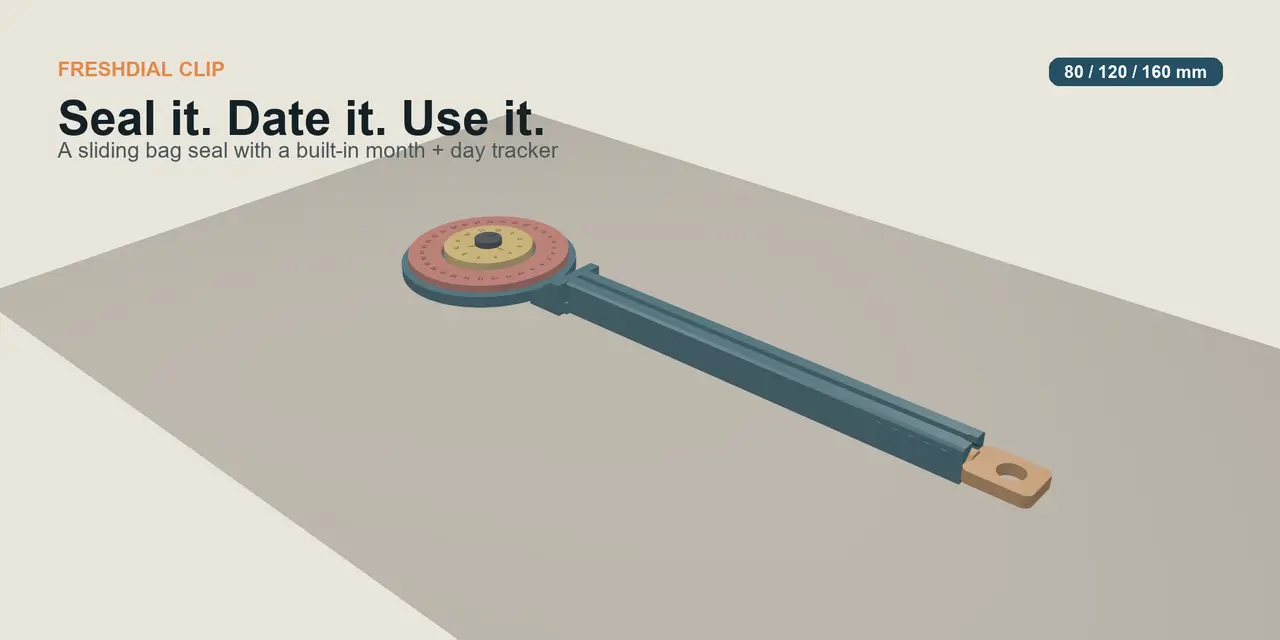

FreshDial solves two small kitchen problems with one print: keeping an opened bag closed and remembering when it was opened. Fold the bag over the removable sealing rod, slide the C-channel across, and set the month and day on the round handle. The indexed outer day ring provides 31 positions; the inner month disk is friction-set.

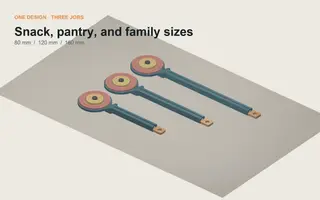

The download includes 80, 120, and 160 mm clips, a looser 120 mm channel for printers that run tight, an alternate 5.0 mm rod, and a compact three-fit calibration coupon. Every printable component is supplied as STL and editable STEP, with ready-arranged 3MF plates and an editable CadQuery source script.

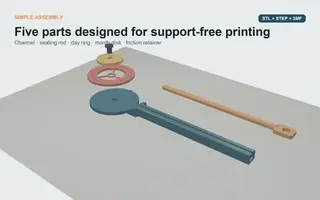

Designed for a 0.4 mm nozzle, 0.20 mm layers, PETG, and support-free printing. A 3 mm brim is recommended for the long rod. Print the coupon first because long sliding fits depend on printer calibration and material shrink.
Descripción original del autor, publicada en Thangs.
