FREE Helldivers 2 P4 Senator Revolver Functional Prop

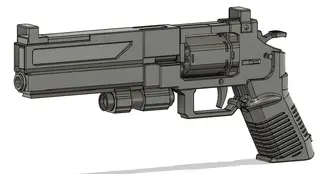

Assembly render: https://youtu.be/EUwEb81ff6Y?feature=shared

I have been amazed with how all the Helldivers 2 weapons that we've modeled have performed, so as a thank you we decided to release this file for free instead of paid like most of our files.

IF YOU WANT TO SUPPORT OUR WORK BUY OUR FILES ON CULTS: https://cults3d.com/en/users/theforgingcosmic/3d-models

There are SNUB and LONG barreled versions that are exclusive to makerworld: https://makerworld.com/en/models/400908

yes, it is big, it is big in-game as well.

Through my testing this has a very satisfying and durable revolving system that relies on a printed bearing. MAKE SURE TO PRINT “CYLINDER” ON THE FLAT FACE WITHOUT SUPPORTS IT IS CRUCIAL FOR THE INTERNAL BEARING.

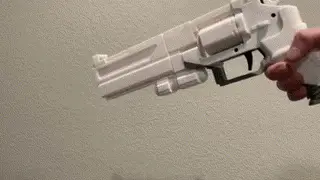

This is a semi-functional prop like everything we model! It offers a moving trigger, hammer, cylinder and removable ammo!

To ideally make the trigger function recommend using:

-(1) M3 x 20mm bolts

-(1) ¼"x7/8" extension spring (There are metric and imperial spring kits that have equivalents, most of them are the same just rebranded on amazon)

For the hammer:

-(1) M3 x 20mm bolt

-(1) 7/32"x1" extension spring (There are metric and imperial spring kits that have equivalents, most of them are the same just rebranded on amazon)

For the cylinder and round function:

-(8) 6x3mm magnets (make sure to position the polarities correctly, and it should be press fit)

-(1) roughly 3mm diameter 70mm long metal rod, I used a nail and cut off the head.

Spring kit we used: https://www.amazon.com/Muzerdo-Assortment-Compression-Extension-Springs/dp/B08QJ51F1J (BTW all our files, if they use springs, use these)

Appears to be identical just metric: https://www.amazon.com/Ruibapa-Compression-Springs-Assortment-Stainless/dp/B0CKYZK4TW

There is a nonfunctional trigger/hammer insert that replaces files: trigger spring pin, hammer spring pin, mechanical housing left/right, trigger, and hammer.

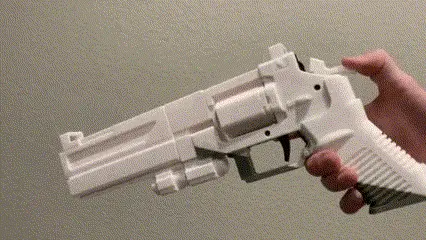

See gif for assembly, is pretty straight forward.

If you have questions post comments, we will try to answer them as best as possible.

I offer guns and other models on my cults and etsy pages. I will be working through a lot of the guns and post them there.

I appreciate every download! <3

Give me feedback, I will update as much as need be.

Please talk to me if you would like to sell prints. (also don't steal our files! we know who you are, you'll make us regret giving these for free)
