Framed Lithophane Panel + Stand – Mountain Sunset (Free STL)
por emmanuelgnanasekar en Cults3D
A mountain-sunset lithophane in two shapes, plus a small stand that holds either one. Hold it up to a window or put an LED or tea light behind it and the picture appears.
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a emmanuelgnanasekar.
Archivos (1)
- lithophane-frame-stl.zip ZIP
- Categoría
- Hogar
- Formatos
- ZIP
- Descargas
- 0
- Publicado
Sobre este modelo
A mountain-sunset lithophane in two shapes, plus a small stand that holds either one. Hold it up to a window or put an LED or tea light behind it and the picture appears.

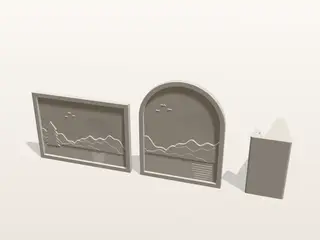

Included:

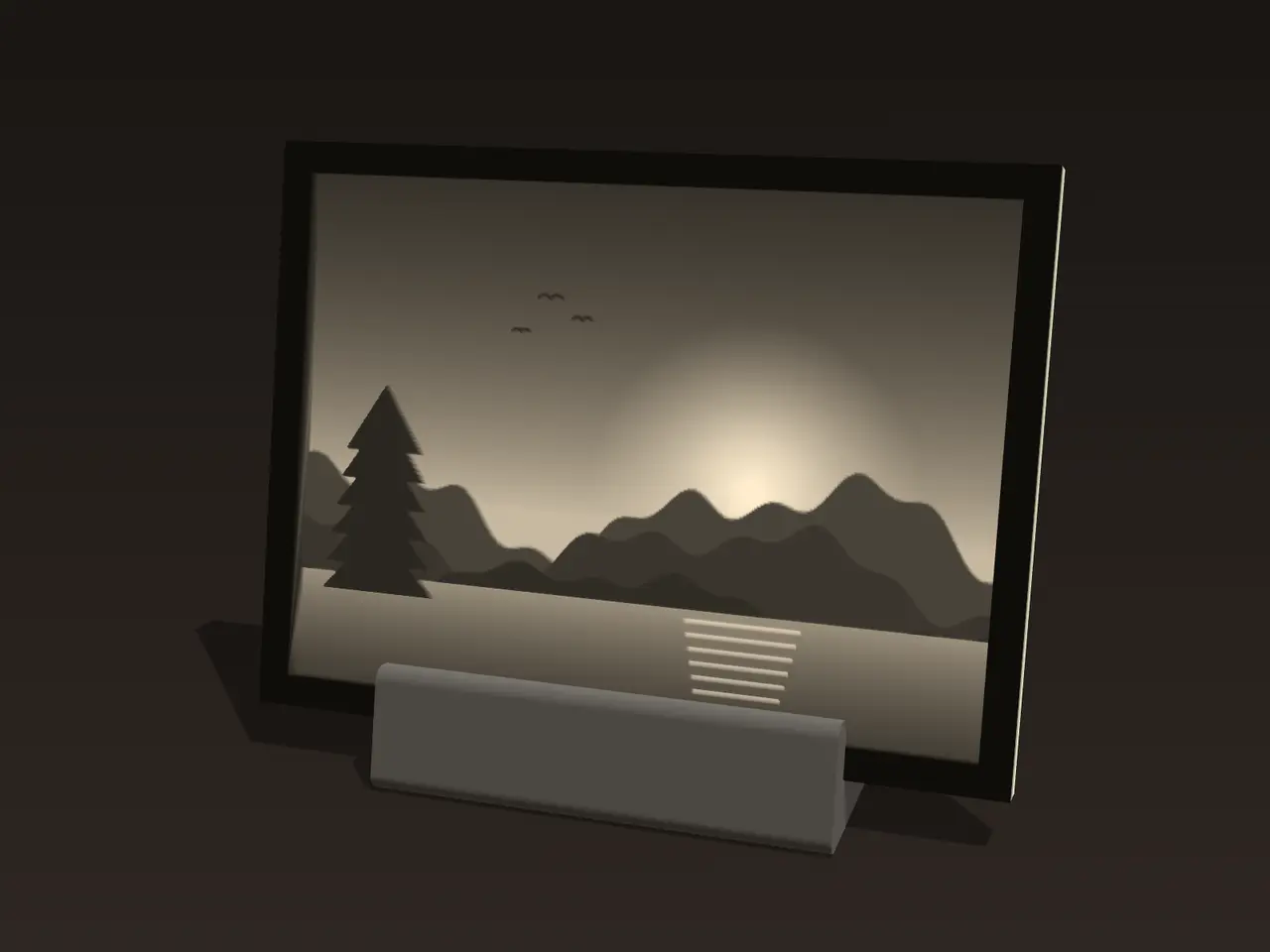

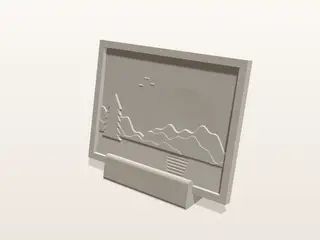

- Framed rectangular lithophane panel, 100 x 75 mm, raised 4 mm frame

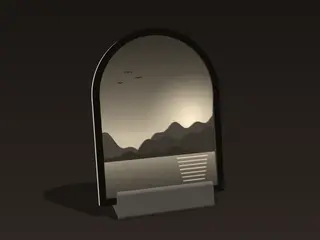

- Arch-shaped lithophane panel, 80 x 104 mm, raised 4 mm frame
- Display stand, 60 mm wide, 6 mm slot leaning back at 78°, holds either panel
Print settings for the panels: white PLA, 0.1–0.12 mm layers, 100% infill, printed upright as oriented in the file, no supports (a brim helps). Thickness runs from 0.8 mm (brightest) to 3 mm (darkest). The stand prints on its side with no supports in any PLA or PETG.
I made this with my free in-browser generator, 3D MakerBench. The picture is the tool's own built-in sample scene.
Want one from your own photo (flat, curved, lamp shade, heart, arch and more)? Make your own free at https://3dmakerbench.com/lithophane-maker
Renders shown; real print photos coming soon.
