FPV-Wing-Racer (rev.2)

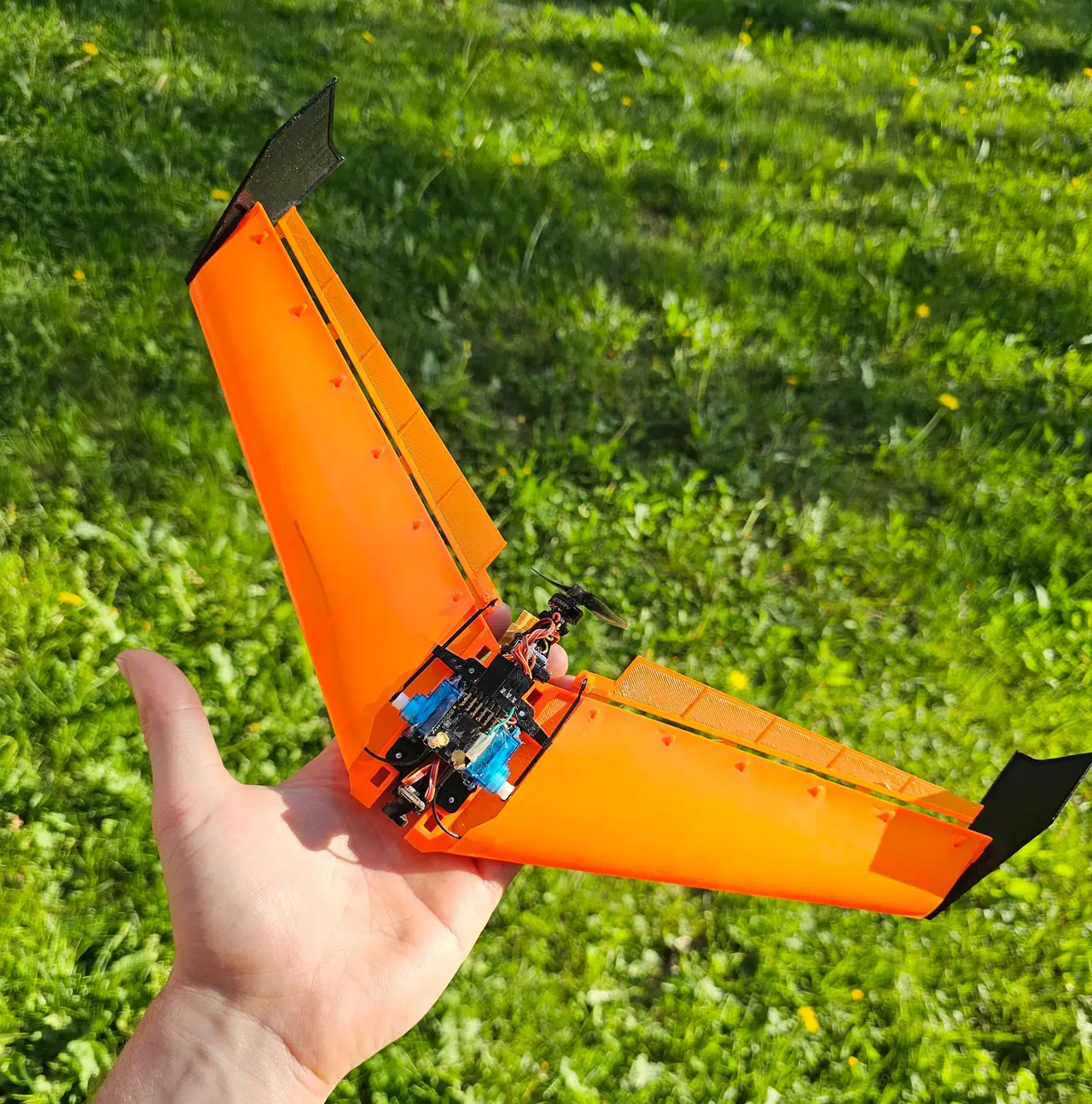

Print. Fly. Crash. Repeat. Round 2! -----------------------

After the initial version has been out for some time now. It's time for some improvements, thanks to some feedback from the community - I got rid of the click-in system and replaced it with proper screws

- Added another version that supports cams with size 14x14mm

- Adjusted wing structure to work with PETG

- Now PETG is recommended for the Wings, PLA still works

- New Winglet design.

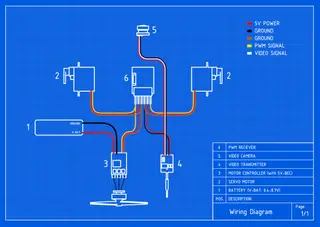

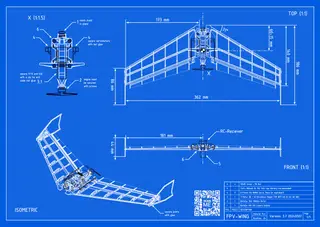

mirrored from FPV-Wing-Racer (rev.2) by Whitespace - Thingiverse Some technical details: Value Unit

span width 360 mm

weight 80* g

top speed ~ 70** km/h

climbing speed ~ 6** m/s

glide ration 1.5:1 -

thrust to weight ration >1 -

printing time ~ 4 h

building time ~ 30 min

print material PLA+PETG -

*with 300mah batt; **just an estimation If you are further interested in this project or need building support, do not hesitate to contact me directly or write me on Instagram (@phil.white98) or Discord (astro_phil) or join the discussion on reddit. Designed in Blender https://www.blender.org/

Print Settings ----------------------- These settings are essential for the wings, elevons and winglets. Also try to over extrude the initial layer so that it will have a strong cohesion and I also recommend printing the first layer at ~25mm/s

Parts with the ending R must be printed twice but the second one is mirrored Only the base part needs support. Support on print bed only is sufficient. Item Value Unit

Layer height 0.15 mm

Initial Layer height 0.15 mm

Wall line Count 3 -

Horizontal Expansion (CURA) -0.05 mm

XY-Size Compensation (Prusa) -0.05 mm

Elefantfoot Compensation (Prusa) 0.00 mm

Top/Bottom Pattern Line -

Line Direction [61,151] deg

Infill Density 20 %

Infill Pattern Line -

Connect Infill lines True -
