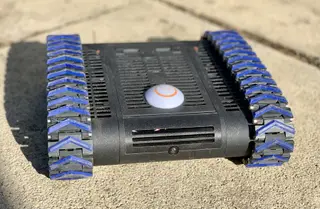

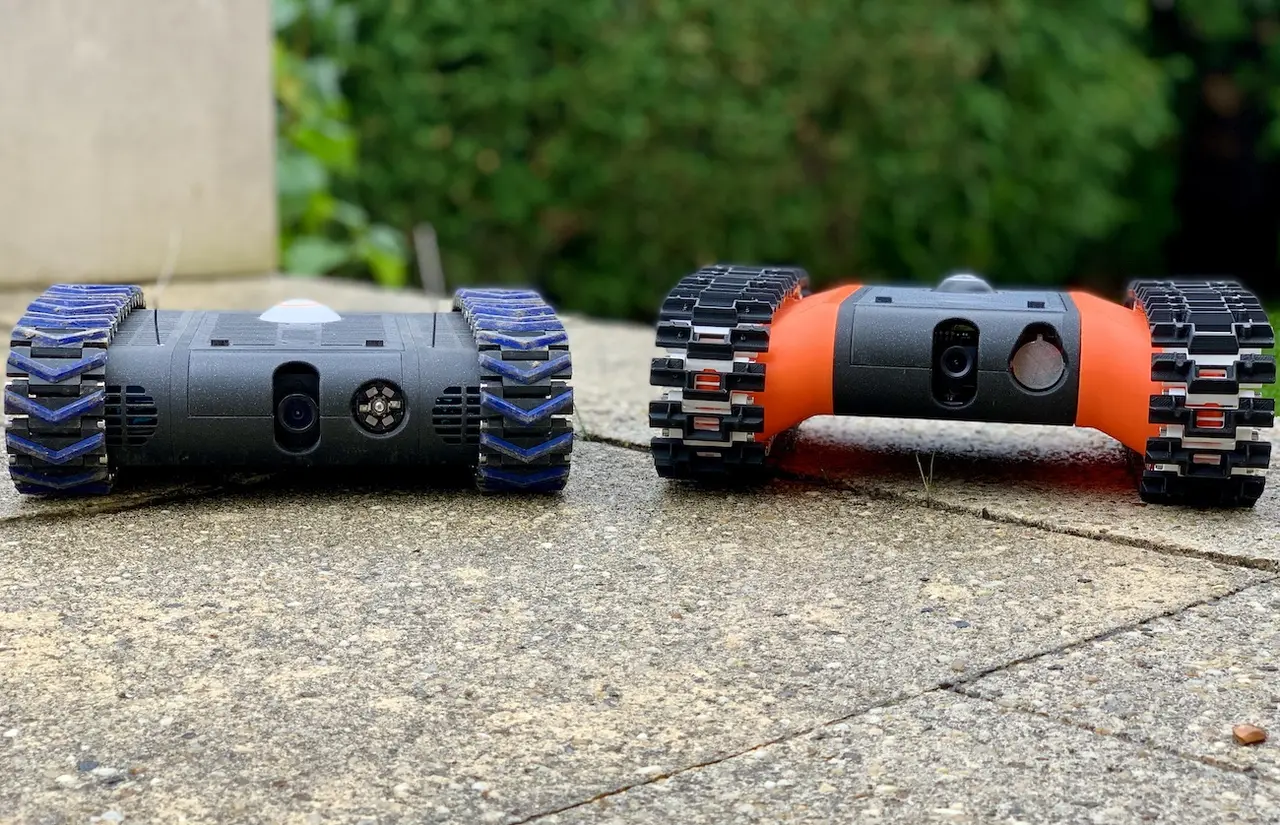

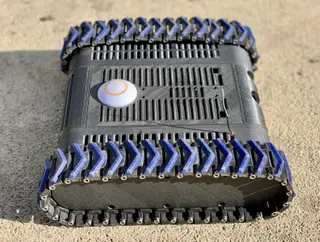

FPV-Rover V2.0 — modelo 3D

FPV-Rover V2.0

por Markus Purtz en MyMiniFactory

It's finally here. Version 2.0 of the FPV-Rover.

Descargar en MyMiniFactory

MyMiniFactory entrega los archivos a usuarios con cuenta gratuita

Licencia

Solo uso personal

MyMiniFactory - Credit - Remix - Noncommercial

Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.

Al descargar aceptas respetar la licencia y dar crédito a Markus Purtz.

Archivos (28)
  • Big Bevel Gear 2 1 V1 1 2.Stl STL
  • Big Bevel Gear 4 1 V1 3 1.Stl STL
  • Big Bevel Gear 4 1 V1 3.Stl STL

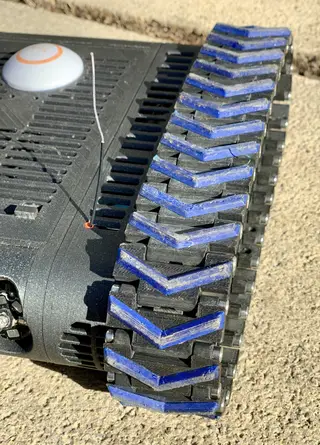

  • Big Track V1 1.Stl STL
  • Body Rover V1 3.Stl STL
  • Camera Mount Left V1 1.Stl STL
  • Camera Mount Main V1 1 1.Stl STL
  • Camera Mount Right V1 1.Stl STL
  • Esc Mount Left V1 2 3.Stl STL
  • Esc Mount Right V1 2 3.Stl STL
  • Front Cover V1 3.Stl STL
  • Front Main Cog V1 3 5.Stl STL
  • Inner Frame Left High V1 0.Stl STL
  • Inner Frame Left V1 4.Stl STL
  • Inner Frame Right High V1 0.Stl STL
  • Inner Frame Right V1 4.Stl STL
  • Led Mount V1 2.Stl STL
  • Motor Mount V1 3.Stl STL
  • Outer Frame V1 3.Stl STL
  • Rear Cover V1 2 3.Stl STL
  • Rear Main Cog V1 3 5.Stl STL
  • Rubbertrack V1 2.Stl STL
  • Small Bevel Gear 2 1 V1 1 2.Stl STL
  • Small Bevel Gear 4 1 V1 1 3.Stl STL
  • Small Cog V2.Stl STL
  • Top Parts V1 5.Stl STL
  • Tow Bar Plug V1 2 3.Stl STL
  • Track V1 3 3.Stl STL
Categoría
Repuestos
Formatos
STL
Descargas
575
Publicado

Sobre este modelo

It's finally here. Version 2.0 of the FPV-Rover.

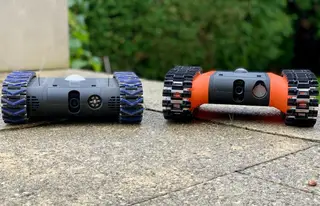

This is the second version of the FPV-Rover. https://www.thingiverse.com/thing:1240754

This one is with 540 motor. This was requested a lot on the other version and I redesigned the whole rover (although it looks the same) for this change.

Intructions and BOM can be found on Instructables https://www.instructables.com/id/FPV-Rover-V20

All upgrades from V1 can be used for V2.0 as well.

Upgrade 01 (rubber gun): http://www.thingiverse.com/thing:1269962 Upgrade 02 (trailer): http://www.thingiverse.com/thing:1700138 Upgrade 03 (GoPro mount): http://www.thingiverse.com/thing:1936491 Upgrade 04 by Superfly851 (grabatron): http://www.thingiverse.com/thing:1979227

Videos on Youtube: https://youtu.be/dpUSdjNppN0 https://www.youtube.com/watch?v=lbQW_ebiLKA https://youtu.be/6aBkTEbLCWM (camera tilt) https://youtu.be/Bfb7bcftKTg (testrun on balcony)

Last Update 30.09.2020

Two additional parts (inner frame left high and inner frame right high) uploaded to the files.

Last Update 27.03.2020

This is the next major update of the FPV-Rover.

A lot of parts have been redesigned to save material and print time. And to reduce support on the parts needed.

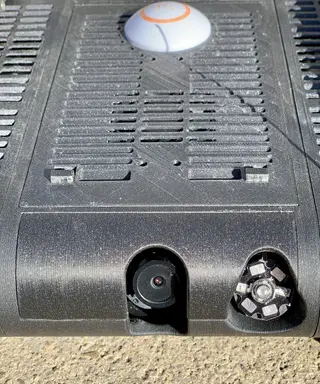

Some changes: - less material in main body - camera cutout in main body smaller - enforeced ventilation holes in the inner frames - cutout in the inner frame to have more space - less material in outer frame - ability do screw external modifications to the outer frame (new projects) - added a bevel gear with a ratio of 4:1 additional to 2:1. This reduces motor overheating and increases torque - new ESC mount

Descripción original del autor, publicada en MyMiniFactory.
