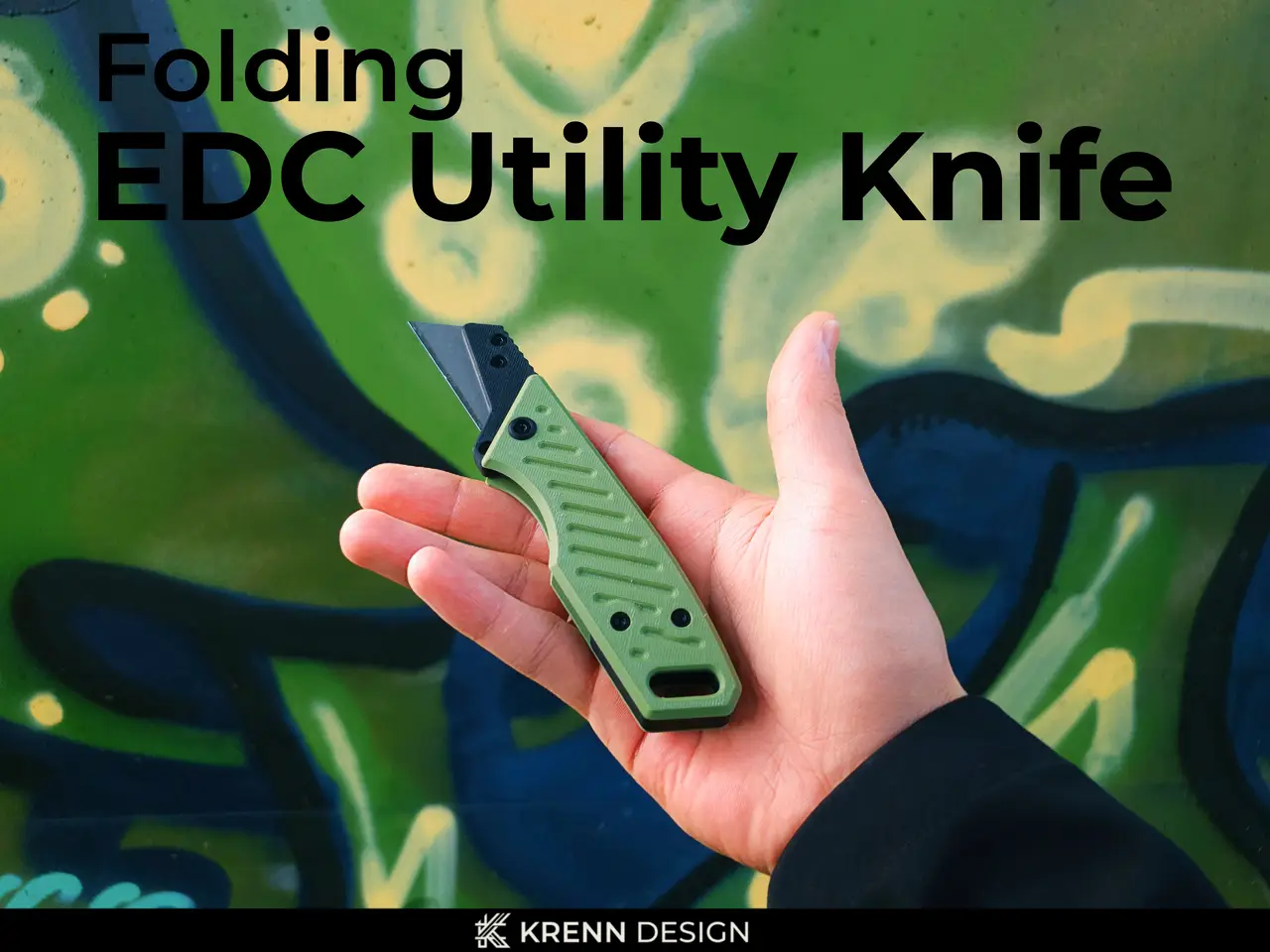

Folding EDC Utility Knife
por KRENN DESIGN en Printables
A compact, practical, and functional friction folder designed for smooth daily use and easy assembly.
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a KRENN DESIGN.
Archivos (10)
- Folding EDC Utility Knife.3mf 3MF · 199 KB
- Middle_Frame.stl STL · 41 KB
- Blade_Cover_Top.stl STL · 124 KB
- Pin_Bottom.stl STL · 69 KB
- Grip_Left.stl STL · 173 KB
- Blade_Cover_Bottom.stl STL · 107 KB
- Pin_Top.stl STL · 65 KB
- Grip_Right.stl STL · 181 KB
- Folding EDC Utility Knife_0.4n_0.15mm_PLA_COREONEL_42m_bed2.bgcode BGCODE · 1,1 MB
- Folding EDC Utility Knife_0.4n_0.15mm_PLA_COREONEL_44m_bed1.bgcode BGCODE · 1,5 MB
- Categoría
- Herramientas
- Formatos
- 3MF, STL, BGCODE
- Descargas
- 738
- Publicado
Sobre este modelo
Folding EDC Utility Knife
A compact, practical, and functional friction folder designed for smooth daily use and easy assembly.
Hardware Required: - 9x M3x5mm (DIN 7984 or ISO 7380) or BT3x5mm Screws (AA108) (Screw head height must not exceed 2mm)
- 1x Standard Utility Blade (Trapezoid blade)
Assembly Instructions: - Place the standard utility blade into the Blade Cover Bottom and secure the Blade Cover Top using 4x M3x5 screws.
- Attach the Grip Right to the Middle Frame using 2x M3x5 screws.
- Insert the Pin Bottom into the Grip Right, aligning the notches, and mount the assembled blade mechanism onto it.
- Align and secure the Grip Left using 2x M3x5 screws.
- Fasten the Pin Top with the final 1x M3x5 screw to complete the assembly.
Assembly Video:
VIDEO!
Descripción original del autor, publicada en Printables.
