Foldable Wall Hook (Print in Place)
por Roland Klampfer en Thingiverse
Redesigned version avaible: https://www.thingiverse.com/thing:6415069 (03.01.2024) A simple, foldable wallmount hook (NO raft, NO support) Inner clearence 0.3mm Rounded at the bottom to prevent first layer vom melting together I suggest the orientation shown at the fifth picture for printing Print..
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Roland Klampfer.
Archivos (4)
- Categoría
- Organización
- Formatos
- STL
- Descargas
- 32,726
- Publicado
Sobre este modelo

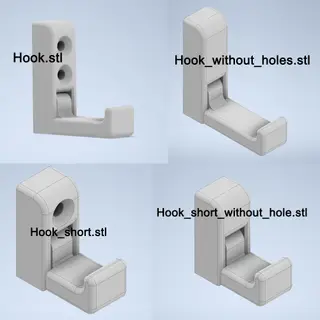

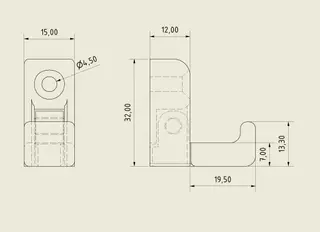

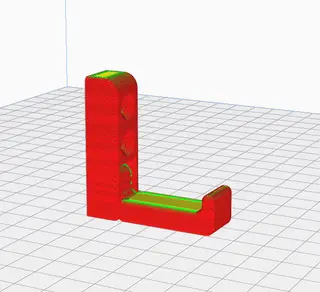

Redesigned version avaible: https://www.thingiverse.com/thing:6415069 (03.01.2024) A simple, foldable wallmount hook (NO raft, NO support) Inner clearence 0.3mm Rounded at the bottom to prevent first layer vom melting together I suggest the orientation shown at the fifth picture for printing Print Settings for a stable hook: 5 Walls 5 Top 5 Bottom min. 50 % infill 22.12.2020 Added a short version and versions without holes if you want to glue it somewhere
Descripción original del autor, publicada en Thingiverse.
