Foldable Laptop Stand

FITS ONLY LAPTOPS WITH ONE CONTINUOUS RUBBER FOOT STRIP ALONG THE REAR EDGE.

This stand seats against that strip. If your laptop has separate little feet at each corner instead, it will not sit correctly - please check before printing. See the photo with the red outline.

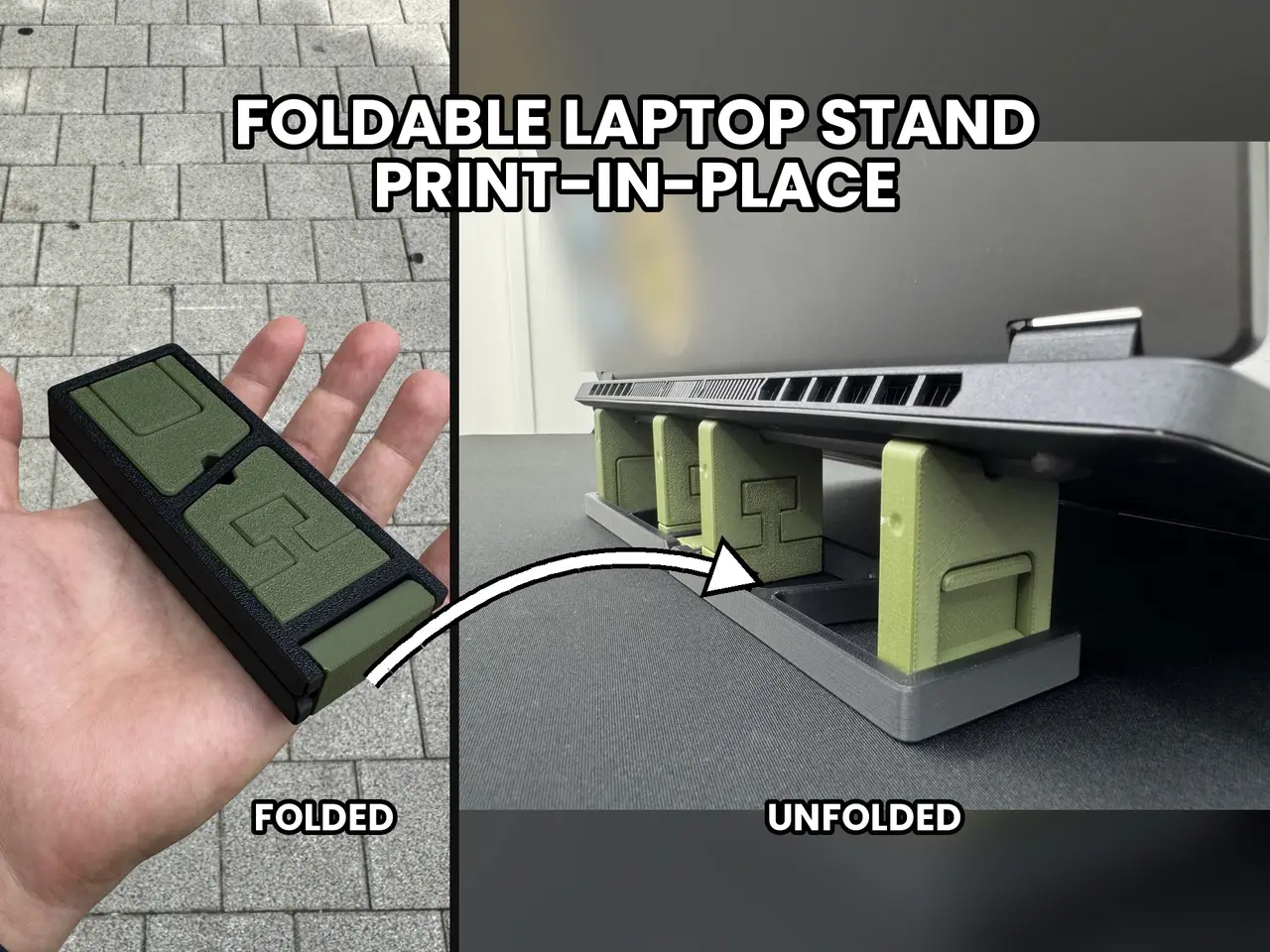

Print-in-place folding laptop stand. Comes off the bed ready to use - no assembly, no screws, no glue. Fold it flat for your bag, pop it open on the desk.

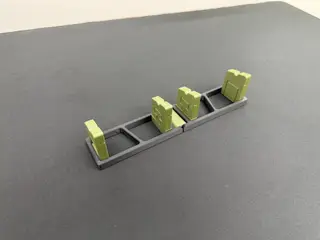

WHAT YOU GET - Unfolds from a flat 235.0 x 47.3 x 10.0 mm strip into a stepped riser - 15 degree typing angle - Every hinge has a built-in stop, so it locks open at a repeatable angle instead of flopping past it - Sized for ~14" laptops (roughly 220 mm front-to-back depth) - Folds completely flat again - one piece, nothing to lose in your bag - Bonus: folded up, it also works as a phone stand

FIT CHECK - Your laptop's rear rubber foot strip must fall within the 235 mm span - 220 mm laptop depth gives the intended 15 degree tilt; deeper or shallower laptops sit at a different angle - Corner-only feet: not compatible

PRINT SETTINGS

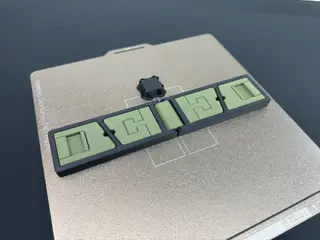

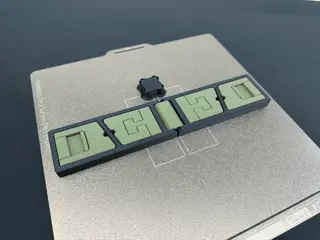

Bambu Lab P1S, stock 0.20mm Standard profile. - PLA - ABS/PETG will likely fuse the print-in-place hinges - 0.20 mm layers / 2 walls / 15% infill / no supports - Print flat as oriented, then work the hinges by hand a few times before the first full fold

SUPPORT ME

If this design was useful to you, you can buy me a coffee: https://buymeacoffee.com/seewaderu

NEED A DIFFERENT SIZE?

STEP file is included, and the full Onshape source is public: https://cad.onshape.com/documents/18b72576556cd07c5f7a1cee/w/82bdb8a2e69870843903fa91/e/9525e4280debe91a84dffda9

LICENSE: CC BY-NC
