Fold-Flat IKEA SKÅDIS Organizer System — 119 Configurations

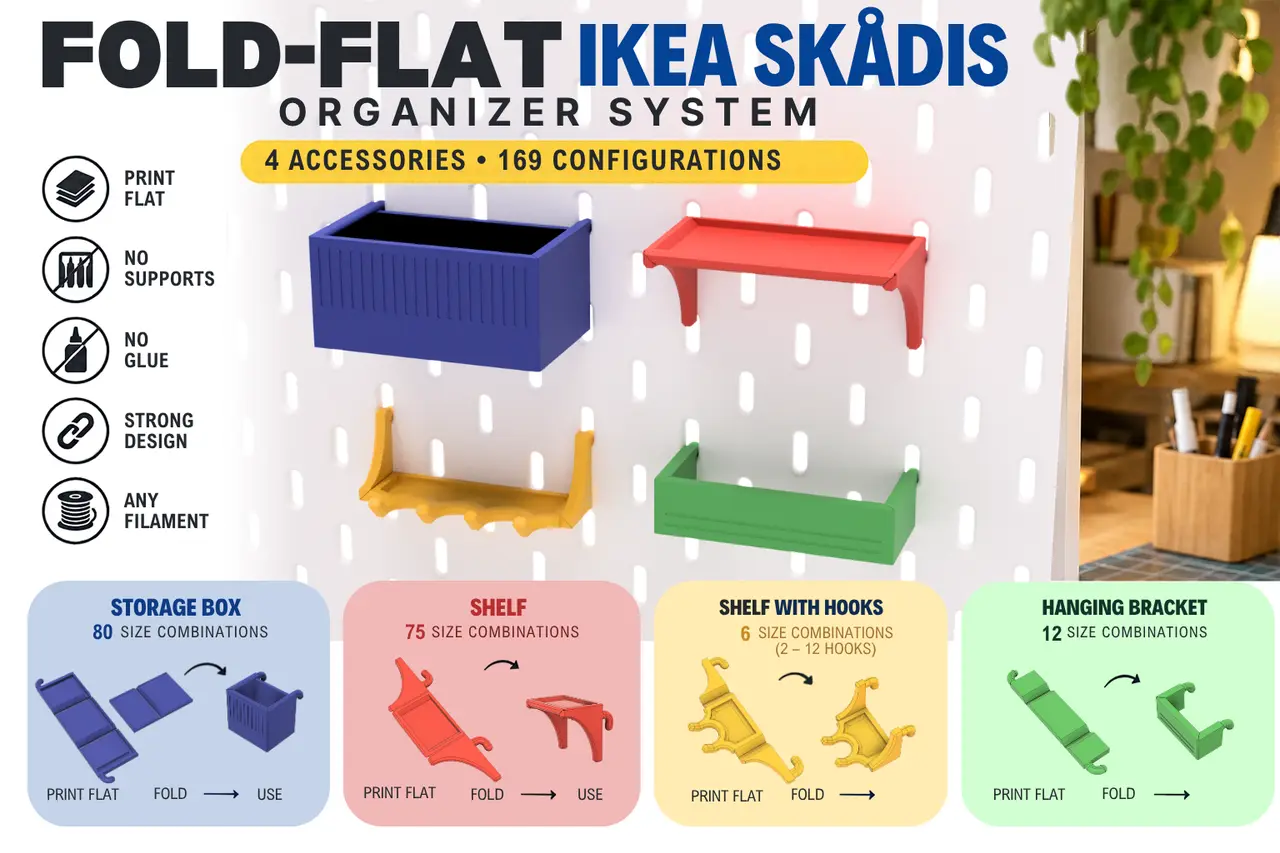

Fold-Flat IKEA SKÅDIS Organizer System Print flat. Fold strong. Organize anything. A universal family of fold-flat organizers designed around one idea: Why print a 3D object when you can print a flat sheet and fold it into one?

The entire system is designed to print flat on the build plate and transform into a rigid 3D accessory after printing. Flat → Fold → Strong 3D object What's included 📦 Storage Box 80 combinations of width, height and depth. ▱ Shelf 75 combinations of width and depth. 🪝 Shelf with Hooks 6 widths, from 2 to 12 integrated hooks. 🔧 Universal Hanging Bracket 12 combinations of width and depth. Key Advantages - Print flat

- No supports

- No glue

- Strong

The geometry is designed so that the main loads are carried by the printed planes rather than trying to separate the layers. Any common filament can be used PLA, PETG, or other standard FDM filaments can be used. Important - Recommended layer height: 0.2 mm

- Not all combinations of dimensions may fit on your printer bed. If necessary, try rotating the model 45° around the Z axis.

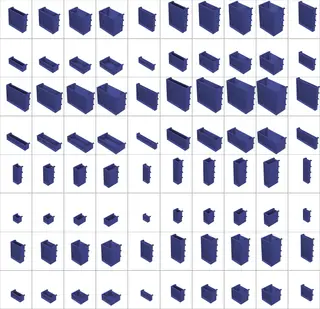

IKEA SKÅDIS compatibility Designed for the IKEA SKÅDIS pegboard. The mounting geometry is shared across the whole family, so different accessories can be mixed and matched on the same board. Printing Box To print a box, first choose the required size. For example, for a box with 75 mm width, 34 mm height and 24 mm depth (all dimensions refer to the inner volume of the box), download these two files: - box_width75_height34_depth24_bottom.stl

- box_width75_height34_depth24_front.stl

Print both parts and assemble them by simply clicking them together. Glue can be used if desired, but it is not required. Shelf Choose the required shelf size. For example, for a shelf with 125 mm width and 32 mm depth (outer dimensions), download: - shelf_width125_depth32_shelf.stl

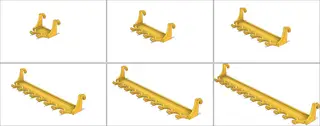

After printing, fold both sides down to form the shelf. Shelf with Hooks Choose the required width, or the desired number of hooks. For example, for a 165 mm wide version, download: - hooks_width165_hooks.stl

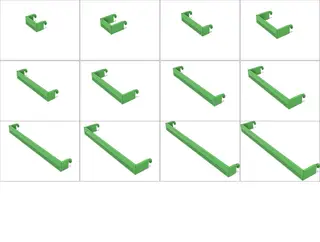

After printing, fold both sides up to form the shelf and hooks. Hanging Bracket Choose the required bracket size. For example, for a bracket with 85 mm width and 35 mm depth, download: - bracket_width85_depth35_bracket.stl

Note: The dimensions in the file name are the outer dimensions of the bracket. The bracket has 5 mm thick walls, so take this into account when choosing the required size. Need help? If you encounter any issues with these models, please leave a comment and let me know. I'll do my best to fix the problem or add the required size. ◑
