Focusrite Scarlett 2i2 Wall and SKADIS Mount

Focusrite Scarlett 2i2 Wall and SKADIS Mount

Move your Scarlett 2i2 off the desk and onto a wall or SKADIS pegboard, with the front-panel controls and inputs still within reach.

Need a custom part for your setup? I design print-ready models from photos, sketches and measurements. Request a custom design (https://roqd.one/ith)

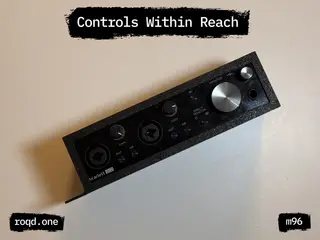

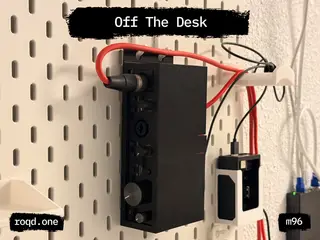

I wanted my audio interface beside the video-capture gear on my pegboard, not taking up space on the desk. This vertical holder keeps the interface in one place and leaves the front panel exposed, so I can plug in a microphone and adjust the controls without taking it out.

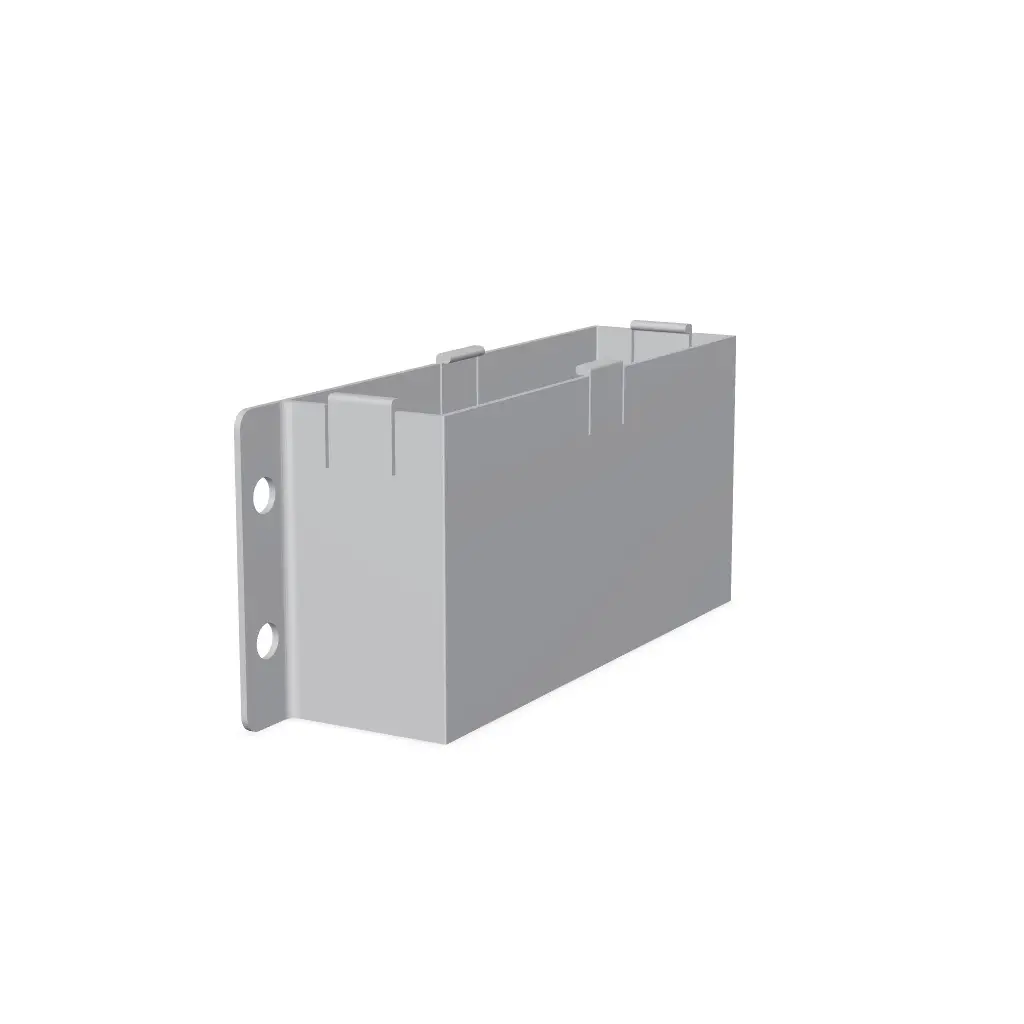

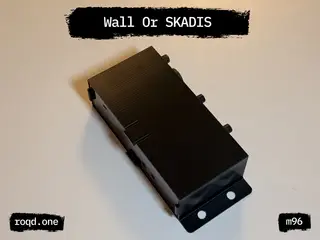

Key details - Designed around the Scarlett 2i2 shown in the photos - Overall STL envelope (H x W x D): 200 x 52 x 91 mm - Device cavity in the mounted orientation (H x W x D): 176 x 48 x 86 mm - Two upper hanging holes: 10 mm diameter, spaced 40 mm center to center - Mounts to a wall with suitable hardware or to SKADIS with compatible hooks - Front-panel controls and inputs remain accessible

Files included - m96_focusrite_2i2_mount.stl - vertical audio-interface holder

Important

Scarlett 2i2 generations differ in size. Compare your interface body with the 176 x 48 x 86 mm cavity and check connector clearance; this is not a universal fit for every generation. Pegboard hooks and wall hardware are separate and are not included. Use compatible hooks or screws that securely retain the holder through its 10 mm openings.
