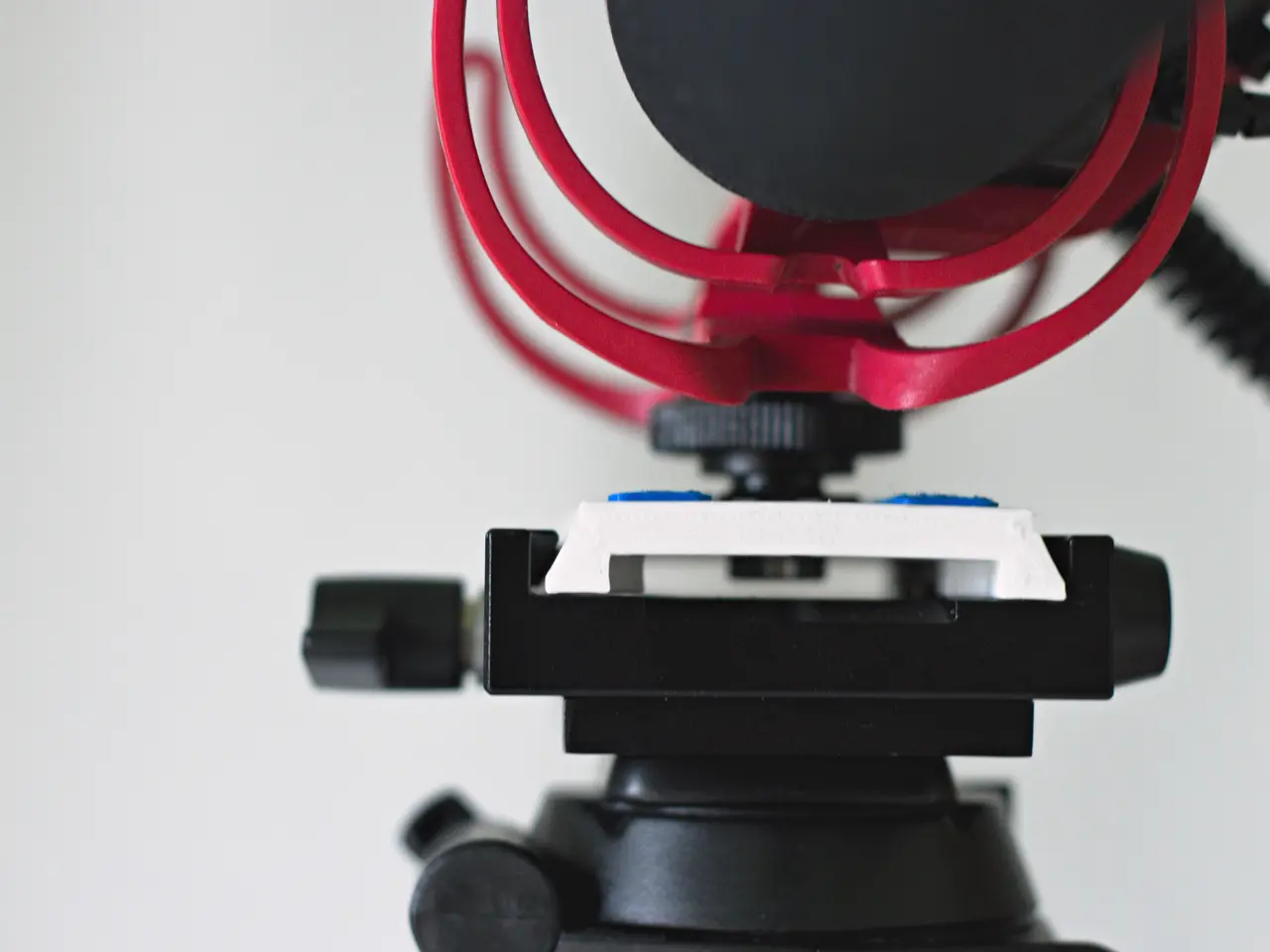

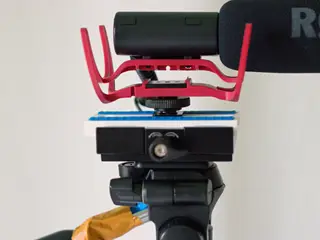

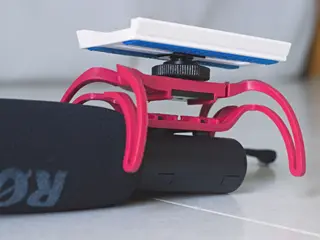

FlyCam Quick Release

The Story I reacently adopted the quick release system from FlyCam and I absolutly love it, but it's kind of expencive and I don't want to spend money on something I could easily design and print. Also the plates come only with the sled incloded.

You can buy the original system here: https://goo.gl/F7aUAz or here: https://goo.gl/vGYuXr

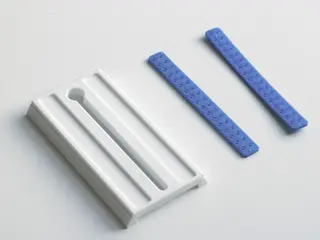

Printing guide For one full plate you need to print: 1x sane2.stl 2x guma.stl

I recomend printing guma.stl from Flex or SemiFlex with the printing setings below. For the other part you can use any fillament like PLA or PET

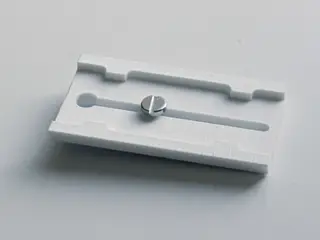

No FLEX? If you don't have any flexible material you can only print the noflex.stl and go with that.

I printed with 4 perimeters and 5% infill

Printed in Fillementum PET at H: 230°C; B: 90°C and Fillementum SemiFlex at H: 210°C; B: 50°C with 1.02 extrusion multiplier

As I was printing verticaly I used a 2mm brim

Finishing

I didn't really finish this model so here's just a few things you should consider doing:

- Remove the brim

- You can glue the flexible parts to the main body (I just press fited)

- Find a suteble screw

- Try it!
