FLSUN QQ-S Pro Tower Clip – LED Strip & Cable Mount (Remix)

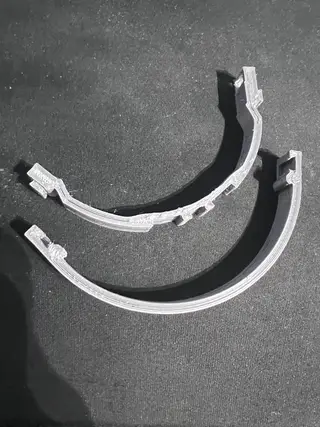

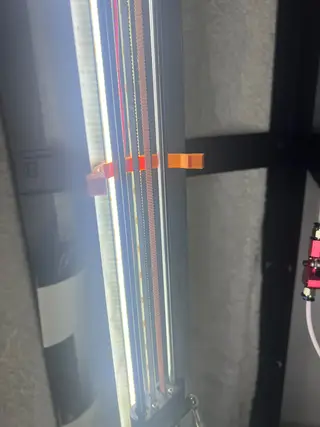

Remix of Cable management for FLSUN QQ-S Pro. I wanted something to hold LED strips on the towers and keep the effector cable bundle off the frame, so I redesigned the clip as two halves that slide together on a dovetail. They wrap around the tower extrusion without blocking the rods, belt or carriage. There are two versions: - Front: LED strip pockets only. Use these on the front towers.

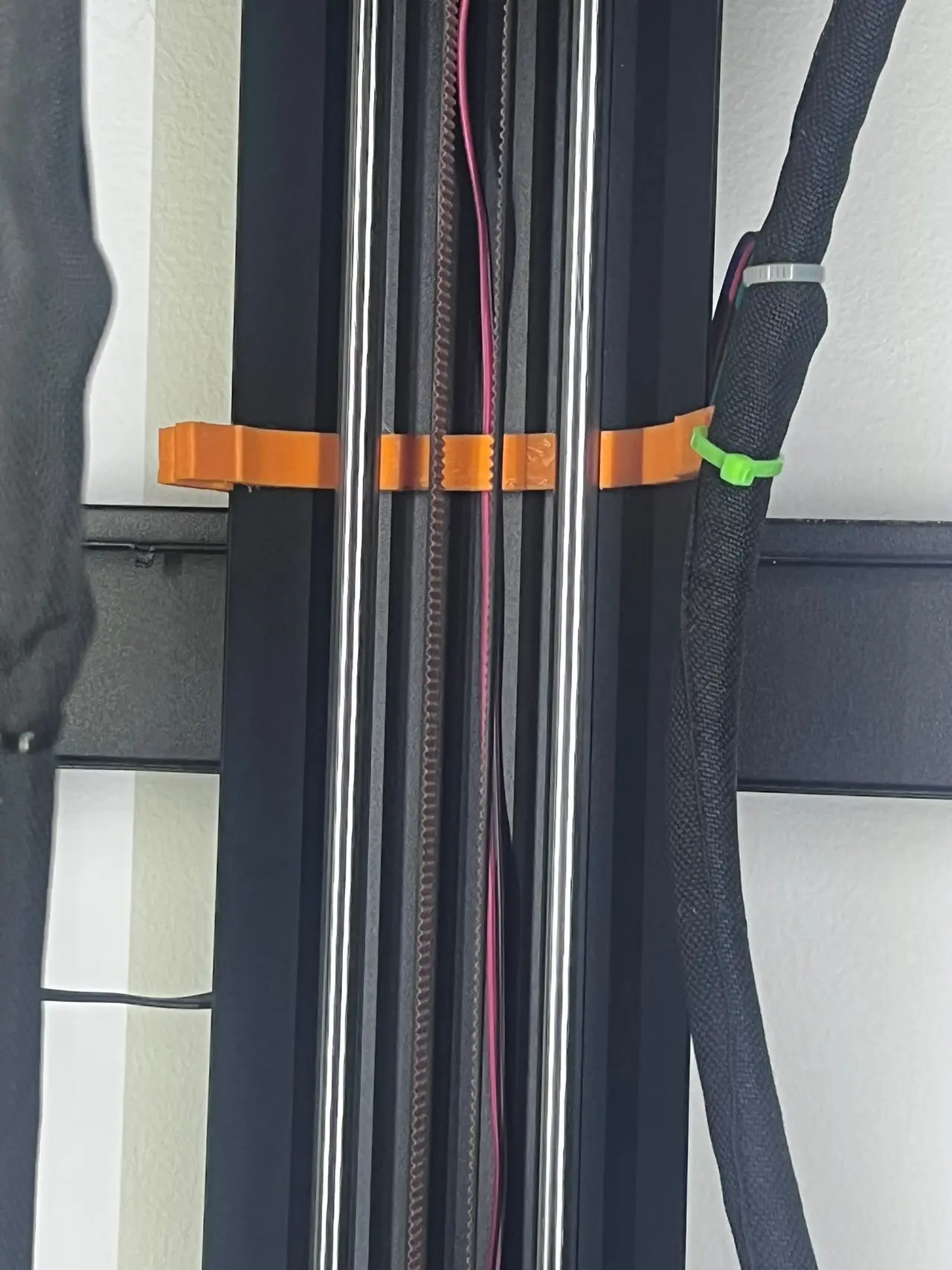

- Rear: same clip with an extra slot for a zip tie, so you can strap the cable sleeve to the back tower.

Fit notes - There's only about 2–3 mm between the clip and the carriage where it passes the rods, so don't scale it up or add thickness on that side.

- The dovetail is tuned to slide together firmly and stay put. If yours is too tight or too loose, check your flow and XY compensation before changing the model.

What I used - LED strip: Temu

- On/off switch: my

, which bolts to the base of the front tower

Printed in PETG with no supports.
