Flexure Joystick for DualShock 4

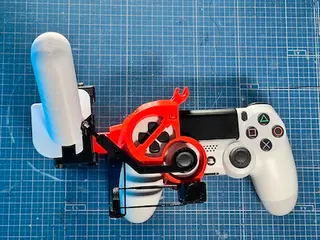

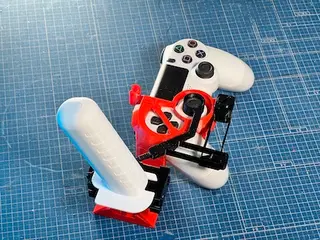

An adapter to make your PS4 DualSense controller into a flight stick. Features a novel compliant mechanism flexure for the hinge, and another flexure for the linkage from the stick to the controller's thumbstick.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Akaki K.
Archivos (9)

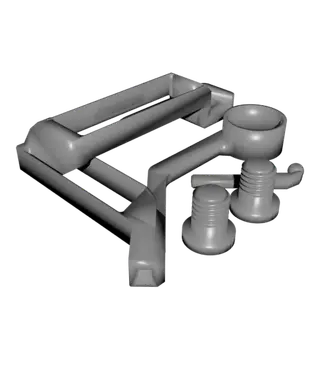

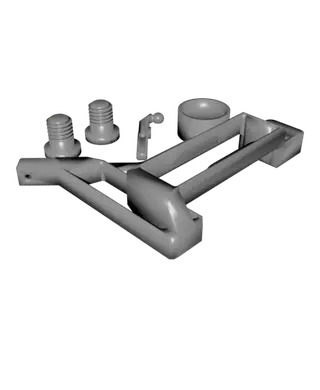

- left linkages and XY flexure.stl STL · 1,7 MB
- right XY flexure and screws.stl STL · 1,7 MB

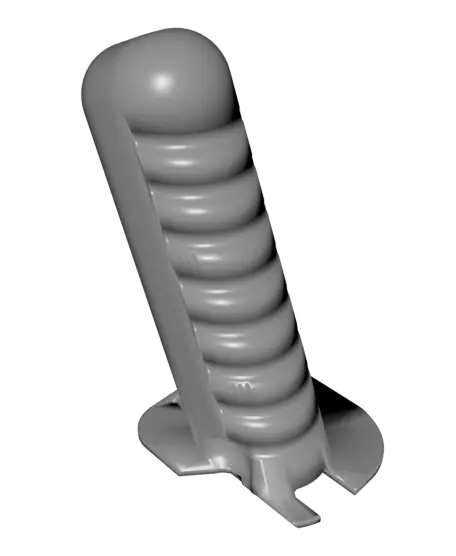

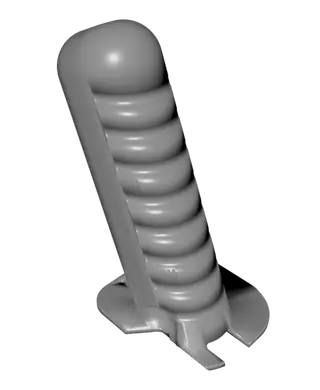

- right stick.stl STL · 365 KB
- left stick.stl STL · 365 KB
- right mount.stl STL · 597 KB
- left mount.stl STL · 595 KB
- desk mount.stl STL · 6 KB
- left_flexure_gimbal.stl STL · 475 KB
- right_flexure_gimbal.stl STL · 475 KB
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 221
- Publicado
Sobre este modelo
An adapter to make your PS4 DualSense controller into a flight stick. Features a novel compliant mechanism flexure for the hinge, and another flexure for the linkage from the stick to the controller's thumbstick.
The pieces go together with 3D printed screws, and pieces of filament used as pins.
This free version features the stick motion and associated linkages. In addition, the upgraded version has a working trigger and buttons. You can find it here: https://www.etsy.com/listing/1111894507/ps4-flexure-joystick The upgraded version is compatible with the pieces in this posting, so you can print this design first, and later upgrade to the full version.
Print all parts as oriented in the STLs. I used 0.2 mm layers, with 2 perimeters, in eSun PLA+, with default settings on an Ender 3 and a Prusa Mini. No supports are needed.
Descripción original del autor, publicada en Thangs.
