FlexTILT replica with plastic joints
por Mark Serov en Thingiverse
08.01 update Added new variant of place for camera with 5mm height hole Almost full plastic variant. everything except base must me printed with 100% infill BTW: you can press 2 magnets into the bottom if you dont need to use it with tripod Best plastic choice: 1 ABS\PC 2 ABS 3 PLA 4 PetG Current...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Mark Serov.
Archivos (2)
- Categoría
- Herramientas
- Formatos
- STL, RAR
- Descargas
- 3,510
- Publicado
Sobre este modelo

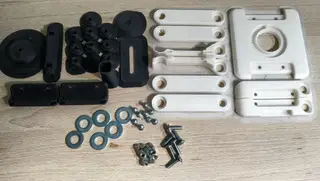

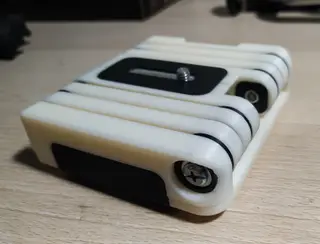

08.01 update Added new variant of place for camera with 5mm height hole Almost full plastic variant. everything except base must me printed with 100% infill BTW: you can press 2 magnets into the bottom if you dont need to use it with tripod Best plastic choice: 1 ABS\PC 2 ABS 3 PLA 4 PetG Current weight around 250g You need for assemble: 6x M416 (normal screw) 8x М48 (countersunk screw) 1x М4*6 (countersunk screw) 15x М4 nuts 6x М4 washers(d2 20мм) 3/8" to 1/4" 7mm adapter an 1/4" screw with 11.5mm neck 6шт M416 (с пресшайбой) 8шт М48 (потай) 1шт М4*6 (потай) 15шт М4 гайки 6шт М4 шайбы (d2 20мм) переходник с 3/8 на 1/4 (высота 7мм) винт фиксации камеры с шейкой ~11.5мм если не найдете, ищите другие варианты сами =)
Descripción original del autor, publicada en Thingiverse.
