FlexiGuard Nano | Experimental Micro Child Safety Lock

FlexiGuard Nano: Experimental Micro Child Safety Lock

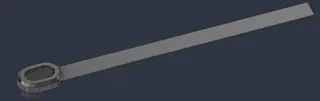

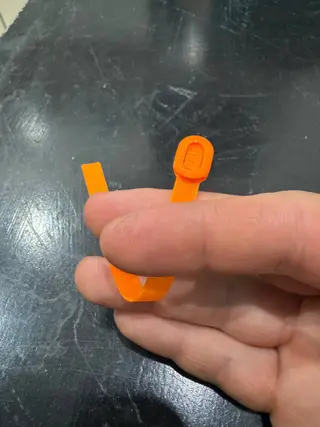

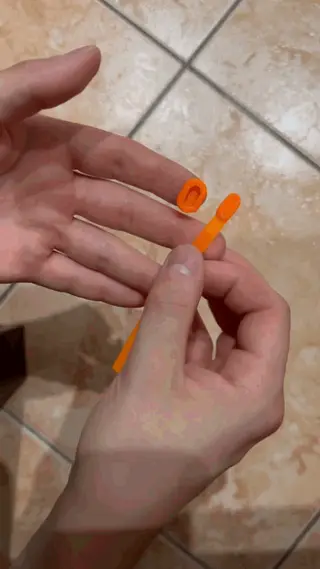

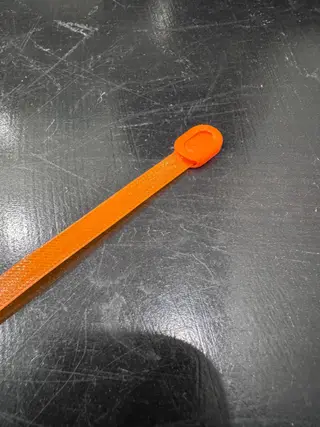

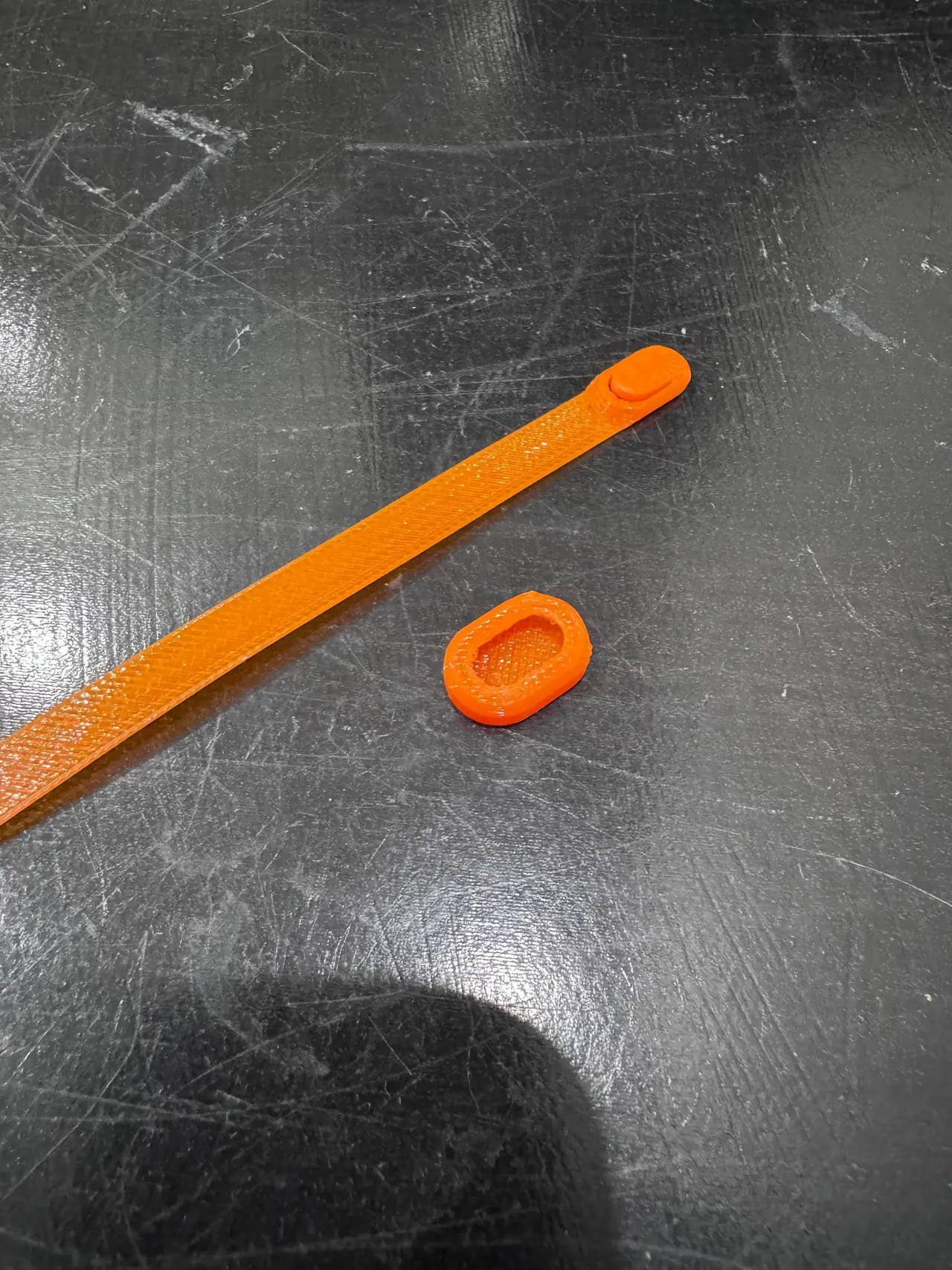

FlexiGuard Nano is an ultra-miniature, experimental iteration of the original FlexiGuard cabinet strap lock. This model was designed as a precision engineering challenge—pushing the physical limits of standard 0.4 mm FDM printing, material physics, and micro-mechanics to achieve the absolute smallest footprint possible.

⚠️ EXPERIMENTAL DESIGN DISCLAIMER

This is a proof-of-concept / experimental print. Because the locking mechanism, leaf-spring, and receiver walls have been scaled down to extreme micro-tolerances, mechanical holding strength and longevity are lower than the full-sized FlexiGuard. Use this if you need a virtually invisible, micro-profile latch where heavy pulling force is not expected, but seems strong enough.

🔬 Pushing FDM Limits

Micro-Scale Footprint: Minimalist geometry that leaves almost zero visual footprint on your furniture.

Micro Leaf-Spring Mechanics: Scaled-down flexible latch mechanism print-in-place directly into the tiny receiver.

Ultra-Fast & Material-Efficient: Prints in a fraction of the time using a negligible amount of filament.

Micro-Gap Clearance: Fits into extremely tight cabinet gaps where standard-sized locks simply cannot fit.

⚙️ Technical & Print Recommendations

Material: PETG ONLY (Crucial for the micro leaf-spring flex). Do NOT use PLA (too stiff, will snap) or ABS (brittle at micro-scales).

Nozzle Diameter: 0.4 mm (A 0.2 mm nozzle will produce even cleaner micro-details, but 0.4 mm is fully supported if calibrated).

Layer Height: 0.2 mm (Exact 0.2 mm layer height is required to match the micro-ribbon layer structure).

Supports: Enabled (Auto) — Standard/Snug supports work best for the micro-receiver cavity.

Filament Condition: MUST BE THOROUGHLY DRIED. At this tiny scale, even minor moisture stringing or poor layer adhesion will cause micro-features to fail.

Placement: Print individually at the center of the build plate.

🛠️ Support Removal & Handling Warnings

Because this geometry is scaled down to the edge of printability, extreme care is required during post-processing:

Gentle Cleanup: Use a sharp hobby knife or thin scalpel to separate the support contacts. Do not use heavy pliers or force, as the thin-walled micro-receiver can fracture.

Cooling Time: Let the print bed cool down completely before removal. Warm PETG at this micro-scale will deform permanently if pried off hot.

Flexure Limits: Avoid forcibly twisting or bending the ribbon at sharp 180° angles near the latch joint.

💡 Installation Tips

Thoroughly clean both mounting surfaces with Isopropyl Alcohol (IPA).

Cut high-tack acrylic double-sided tape (e.g., 3M VHB) precisely to fit the micro-footprint.

Apply, press firmly for 30 seconds, and allow 24 hours for the adhesive to bond before testing.

💬 A Note from the Creator

As a designer, I love exploring the outer boundaries of what desktop 3D printers can achieve. FlexiGuard Nano is a design experiment in extreme miniaturization—testing how far we can push material geometry, layer bonding, and functional mechanics on a standard printer.

It's smaller, sleeker, and faster to print, though it trades off some raw strength for its micro size. Love your printer, respect the material limits, and enjoy experimenting with micro-mechanics!
