Flexible Hose for Dust Extraction
por Makers Manual en Printables

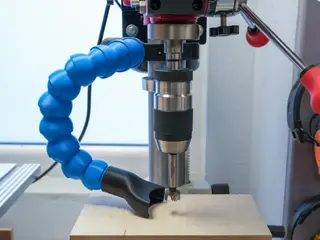

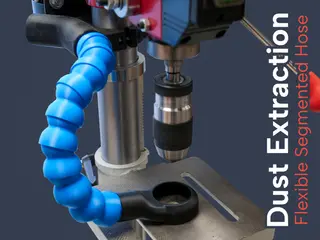

A Flexible Segmented Hose that attaches to your Pillar Drill and Shop Vac.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Makers Manual.
Archivos (17)
- Flex Hose Start Link.stl STL · 1,5 MB
- Flex Hose Middle Link.stl STL · 2,4 MB
- Flex Hose End Link.stl STL · 1,4 MB
- Adapter Flexi Hose to 35mm ID for Vacuum.stl STL · 644 KB
- Funnel Attachment Straight.stl STL · 3,7 MB
- Funnel Attachment Enclosed.stl STL · 2,7 MB
- Funnel Attachment Enclosed with Tab.stl STL · 2,7 MB
- Clamp A - 46mm.stl STL · 1,8 MB
- Clamp Part B - 46mm.stl STL · 1,1 MB
- Clamp Part A - 65mm.stl STL · 2,0 MB
- Clamp Part B - 65mm.stl STL · 1,5 MB
- Clamp Part A - 60mm.stl STL · 2,1 MB
- Clamp Part B - 60mm.stl STL · 1,4 MB
- Clamp Part A - 72mm.stl STL · 2,3 MB
- Clamp Part B - 72mm.stl STL · 1,2 MB
- Clamp Part A - 80mm.stl STL · 2,2 MB
- Clamp Part B - 80mm.stl STL · 1,2 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 6,472
- Publicado
Sobre este modelo

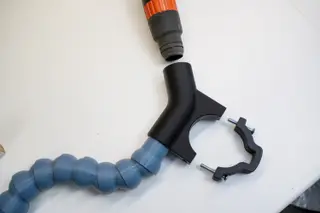

Designed to seamlessly integrate into your workshop, the clamp has a 35mm hole on both ends to suit a standard shop vacuum hose end. If you choose not to use the clamp, then I have included an adaptor to convert from flexi hose directly to shop vac. I have created several Pillar Drill clamp sizes, so hopefully one will fit. Parts for Assembly Affiliate Disclosure: As an Amazon Associate I earn from qualifying purchases. The product links below may be affiliate links. - 2 x M6x35mm Countersink Bolts
- 2 x M6 Nuts
- 1 x PTFE lubricant (this helps assembly)

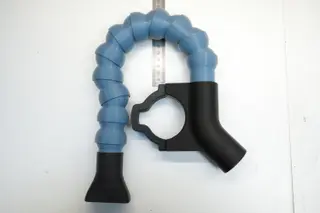

I would recommend printing with 8 Mid Link, plus a Start Link and End Link, to give maximum flexibility in the design. After printing, I would recommend lightly sanding the parts to remove any lumpy bits before assembly. - Nozzle: 0.4mm
- Layer Height: 0.20mm
- Infill: 25%
- Orientation: Orientation is important, see images
- Supports: Only required for Clamp A as pictured
- Brim: Brim is recommended for Funnel Attachment, everything else is fine without
Funnel Attachments There are two funnel attachment options for various purposes (see images). These should all be printed with the hose end to the bed. A 5mm brim is a good idea and the ‘Encapsulated Funnel Attachment’ will need support. Important Note: Some printers may print links looser than others. For this reason I would recommend doing a test print first, if you find the connection too loose it maybe worth looking at your print settings. This was printed with PLA, though I would recommend printing this print PETG or increased durability.
I hope you find this model useful. If so we would love it, if you can give us a LIKE. You can also follow us on our YouTube Channel here.
