Flexible Filament Extruder Upgrade for Creality CR-7, CR-10, Ender 2, Ender 3
por Joshua Van Vleet en Thingiverse
This is an upgrade for the for Creality CR-7, CR-10, Ender 2, Ender 3, and Afinibot A5, A31. It will allow these printers to print with flexible filament more reliably using a PTFE insert to close the gap in the extruder that normally allows TPU to get jammed. This project requires a 13mm section...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Joshua Van Vleet.
Archivos (1)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 44,524
- Publicado
Sobre este modelo

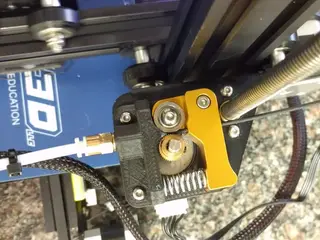

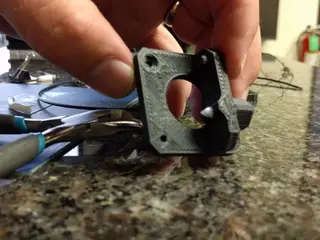

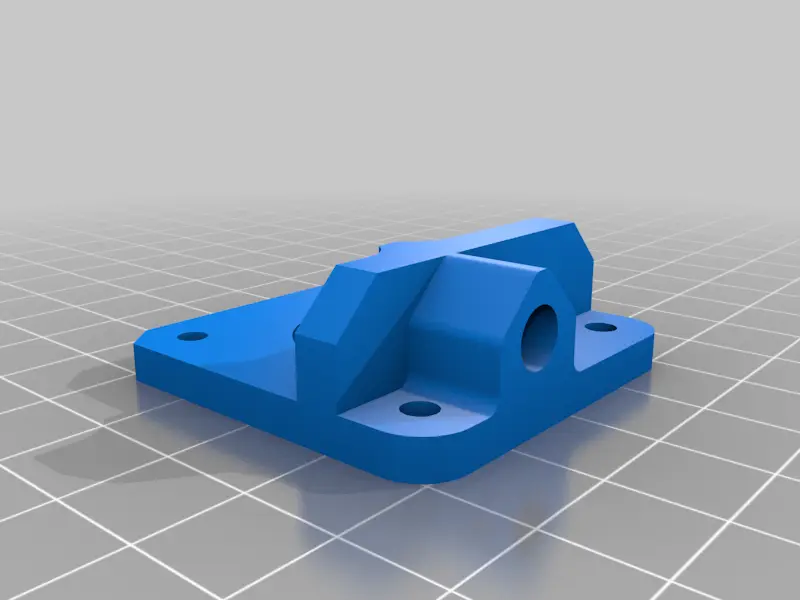

This is an upgrade for the for Creality CR-7, CR-10, Ender 2, Ender 3, and Afinibot A5, A31. It will allow these printers to print with flexible filament more reliably using a PTFE insert to close the gap in the extruder that normally allows TPU to get jammed. This project requires a 13mm section of PTFE tube for 1.75mm filament cut to a point along with the 3D printed part. Also, if you have any issues with the coupler staying screwed into the bracket, check out this remix by Chuck Hellebuyck (https://www.thingiverse.com/Elproducts/about) that includes threading for the PTFE coupler: https://www.thingiverse.com/thing:3072475
Descripción original del autor, publicada en Thingiverse.
