Fit gauge for door hooks - 5 free test clips (16, 19, 35, 40, 44), no supports

What it is

A test clip to try before you print the hook: done in a few minutes, it shows which size fits your surface.

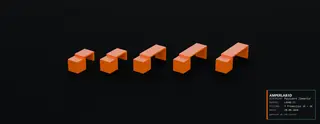

This is the free fit gauge for every hook in the range that mounts on a door: 5 test clips, one per size step, each with its number raised on the face. Print the one you think fits (a few minutes), try it on your own surface, then pick the hook with the same number. Free, no strings attached.

Fit

Number on the clip Fits

16 16.40 mm slot for rebated door 16 mm

19 19.40 mm slot for rebated door 19 mm

35 36.00 mm slot for 35 mm door

40 42.40 mm slot for 40 mm door

44 45.00 mm slot for 44 mm door

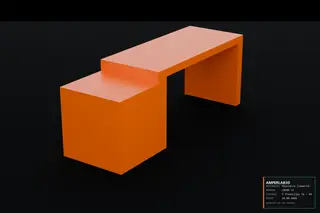

Hangs over the top of the door; on a rebated door over the rebate lip. There has to be a gap of at least 2 mm above the door, or it will not close.

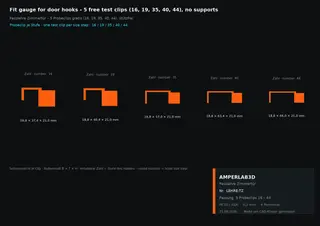

Dimensions (measured on the CAD solid)

Clip Overall W × D × H

16 18.8 × 37.4 × 21.0 mm

19 18.8 × 40.4 × 21.0 mm

35 18.8 × 57.0 × 21.0 mm

40 18.8 × 63.4 × 21.0 mm

44 18.8 × 66.0 × 21.0 mm

Printing

PETG or ASA, 0.2 mm layers, 4 perimeters, 25 % infill. PLA works indoors but creeps under a steady load - do not use it for anything that hangs.

No supports. Every overhang was measured against 45 degrees in the orientation the file is saved in: 0.0 % of the surface stands steeper, which is nothing. Drop the file on the bed as it comes and print.

In the download

A ZIP with every clip as STL, 3MF and STEP, the dimensioned drawing as PDF, and a README with the number-to-fit table.

Tell me what you need

This range is generated from parametric code, not modelled by hand. A different size, angle, length or mounting foot is a parameter and a rebuild for me, not a new design. Message me here on Cults and you will usually have your variant within 2–5 days. The same goes for criticism: if something does not fit, tell me and I will correct it for everyone — buyers get the new file automatically.
