First Layer calibration Matrix
por Marc Neuhaus en Printables
This is a Calibration Matrix for the Prusa Mini to calibrate the first layer.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo sin pedir permiso ni dar crédito.
Al descargar aceptas respetar la licencia y dar crédito a Marc Neuhaus.
Archivos (1)
- Categoría
- Para tu impresora
- Formatos
- 3MF
- Descargas
- 3,763
- Publicado
Sobre este modelo

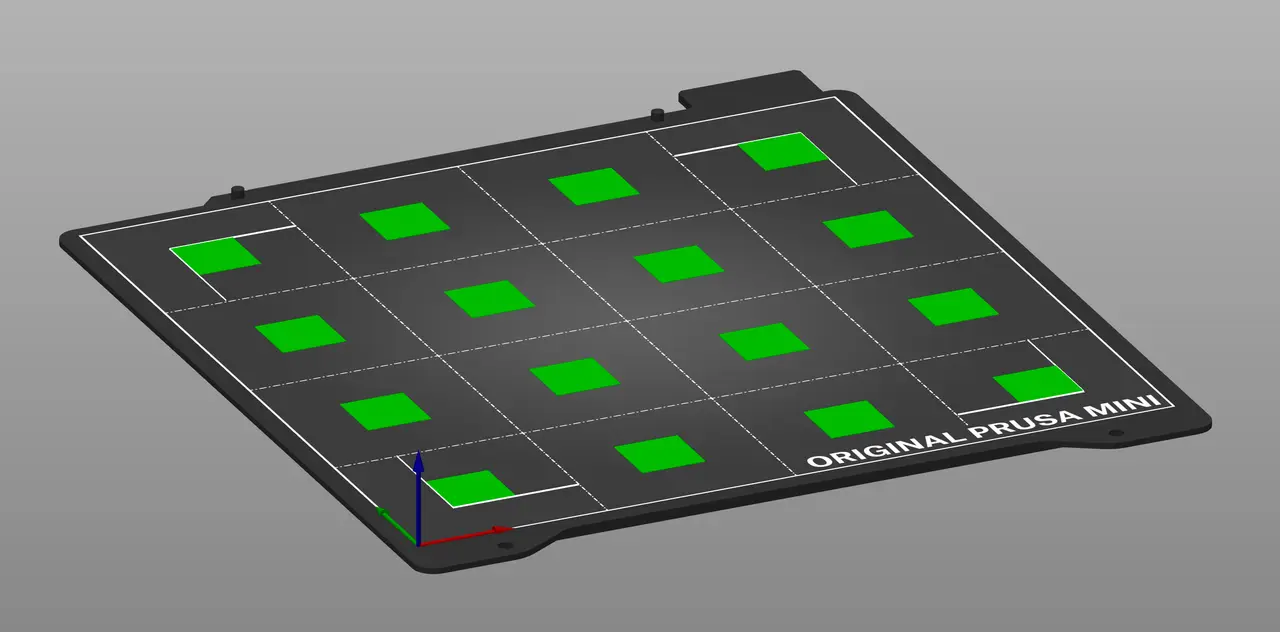

This is a Calibration Matrix for the Prusa Mini to calibrate the first layer. It consists of 15x15mm squares that are 0.2mm tall.
The Squares are layed out into a 4x4 Matrix and are printed sequentially starting form the front on the right.
You can create the G-Code for the Filament that you want to calibrate and start the print. Using the external perimeter you can start to do the rough calibration with the Live-Z tuning option.
Then you can adjust the Live-Z values while it prints the individual squares and check that square visually and with your finger after it starts to print the next one.
Descripción original del autor, publicada en Printables.
