Filament Spool Wall Mount/Holder/Rack - VAROE
por VAROE en Printables

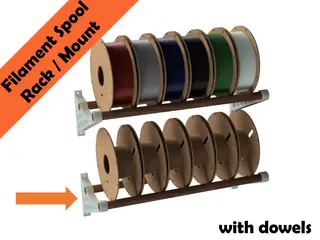

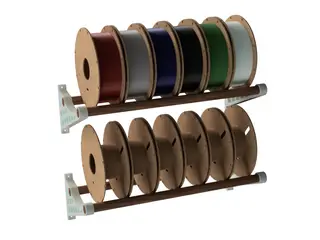

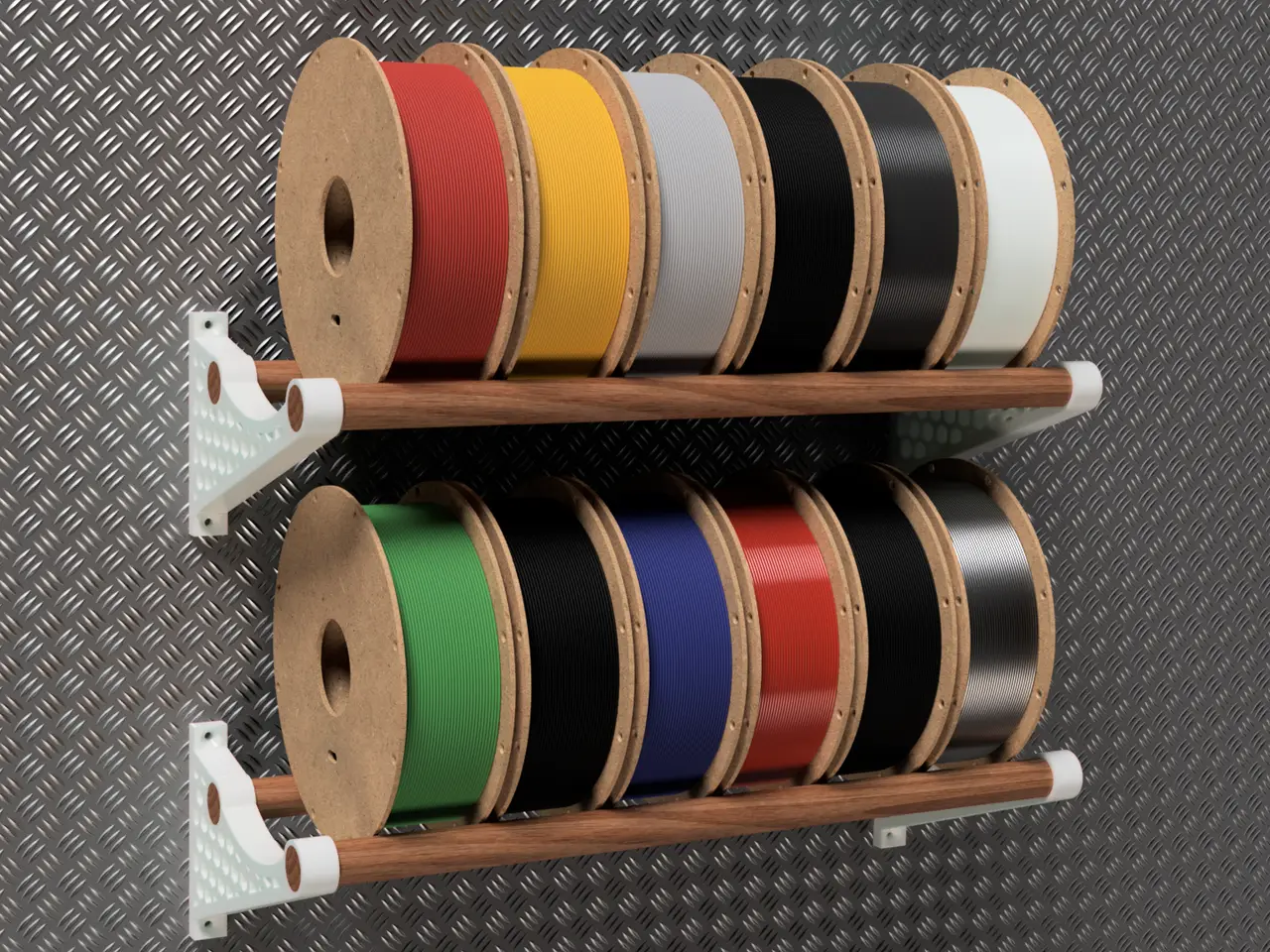

A simple mount with some needed dowels (files for 20-28mm Including 3/4 and 1 Inch pipes) for your 1 kg filament spools.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a VAROE.
Archivos (18)
- WallRackMount_20mm_Honeycomb_3_4inch.stl STL · 653 KB
- WallRackMount_21mm_Honeycomb.stl STL · 657 KB
- WallRackMount_22mm_Honeycomb.stl STL · 659 KB
- WallRackMount_23mm_Honeycomb_RightSideClosed.stl STL · 661 KB
- WallRackMount_23mm_Honeycomb_LeftSideClosed.stl STL · 661 KB
- WallRackMount_23mm_Honeycomb.stl STL · 663 KB
- WallRackMount_24mm_Honeycomb.stl STL · 665 KB
- WallRackMount_24mm_Honeycomb_LeftSideClosed.stl STL · 663 KB
- WallRackMount_24mm_Honeycomb_RightSideClosed.stl STL · 664 KB
- WallRackMount_25mm_Honeycomb_1inch.stl STL · 670 KB
- WallRackMount_23mm_Rectangle.stl STL · 1,6 MB
- WallRackMount_24mm_Rectangle.stl STL · 1,6 MB
- WallRackMount_28mm_Rectangle.stl STL · 677 KB
- WallRackMount_20mm_Solid _3_4inch.stl STL · 399 KB
- WallRackMount_22mm_Solid.stl STL · 405 KB
- WallRackMount_24mm_Solid.stl STL · 412 KB
- Fusion360_FilamentSpoolRack_24mm_Rectangle.f3d F3D · 1,2 MB
- STEP_FilamentSpoolRack v3.step STEP · 3,0 MB
- Categoría
- Para tu impresora
- Formatos
- STL, F3D, STEP
- Descargas
- 4,773
- Publicado
Sobre este modelo
This model needs to be used with dowels. The holes of the mount are having around 20-28 mm and should fit (wooden) dowels (like in my case). If there are any troubles i've uploaded the cad model for adjustments. If there are a lot of wished for a certain measurement i can adapt it aswell :) I recommend it printing with some more infill and maybe thougher materials. Maybe you have to check on your own. In any case just use more of the mounts inbetween of a dowel.
My print settings: Material: Polymaker ABS Layer height: 0.2mm Infill ratio: 40% Wall loops: 4
If it's very close and the dowels are barely not fitting - just use a little sanding paper and sand down the holes. 2.5kg Spools Version available here.
Descripción original del autor, publicada en Printables.
