Filament spool shelf honeycomb
por Maoirae en MakerWorld
Designed my own filament spool shelf in honeycomb design. There are 3 versions, for 1" inch wooden dowel, 23mm dowel and 20mm dowel. Used 2pcs M5 wall screws per bracket, spacing between top and bottom screw is 95mm. Its designed just to slid onto mounted screws, witch should have 5mm space…
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Maoirae.
Archivos (4)
- Spool Shelf 1inch.3mf 3MF · 100 KB
- Spool Shelf 20mm.3mf 3MF · 98 KB
- Spool Shelf 23mm.3mf 3MF · 98 KB
- Screw hole template.3mf 3MF · 75 KB
- Categoría
- Herramientas
- Formatos
- 3MF
- Descargas
- 32,171
- Publicado
Sobre este modelo

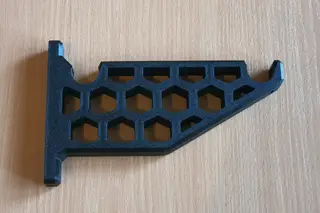

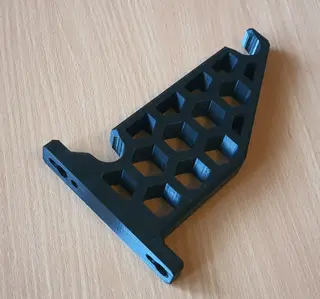

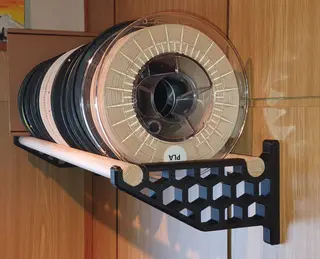

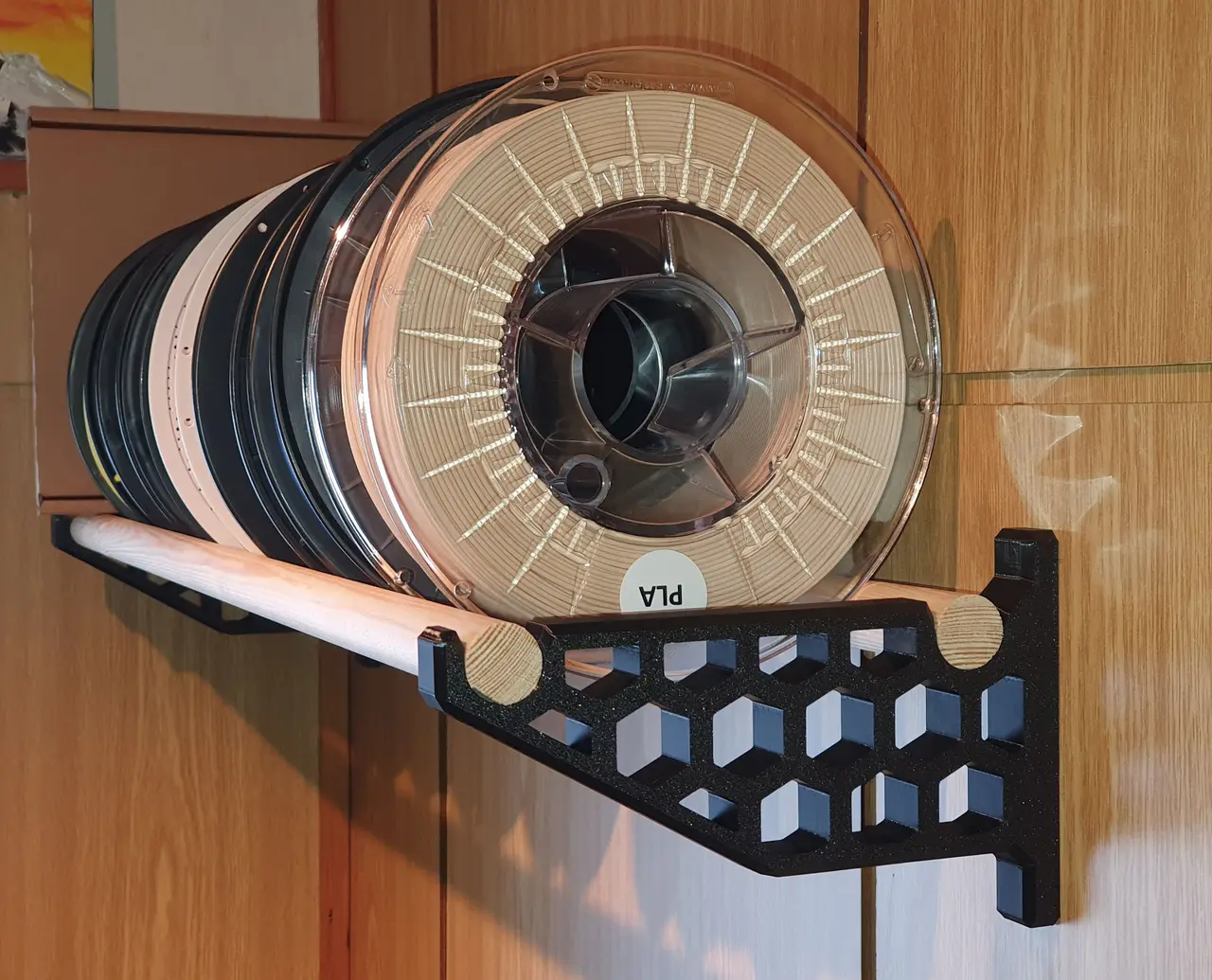

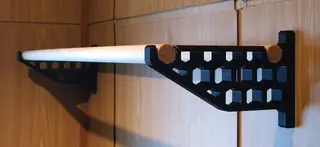

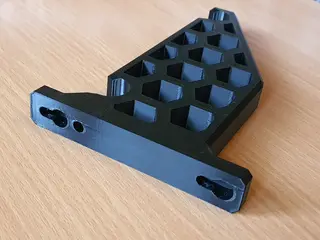

Designed my own filament spool shelf in honeycomb design. There are 3 versions, for 1" inch wooden dowel, 23mm dowel and 20mm dowel. Used 2pcs M5 wall screws per bracket, spacing between top and bottom screw is 95mm. Its designed just to slid onto mounted screws, witch should have 5mm space between screw head and wall.
Added template for easier drilling holes and adjust right screw distance, also added plane if you want to you use spirit level.
Added endcap for those whom wooden dowel extends from shelf bracket to prevent filament spool tipping over. Also made divider so you can separate different type of filaments from each other on one shelf and not mixing them accidentaly. Here: https://makerworld.com/en/models/117747#profileId-126576
Also added filament material tags so you can separate different type of filaments from each other, here: https://makerworld.com/en/models/117775#profileId-126618
Added accessories to utilize honeycomb holes for some holders. link here: https://makerworld.com/en/models/1129702#profileId-1129747
Descripción original del autor, publicada en MakerWorld.
