Filament Spool Rack for Multiboard

UPDATED New versions use Heavy Weight-Bearing Hook Snaps (https://than.gs/m/1130430), which will allow you to install the shelf bracket without removal of the Multiboard tiles.

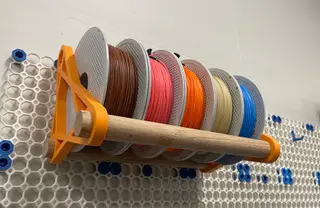

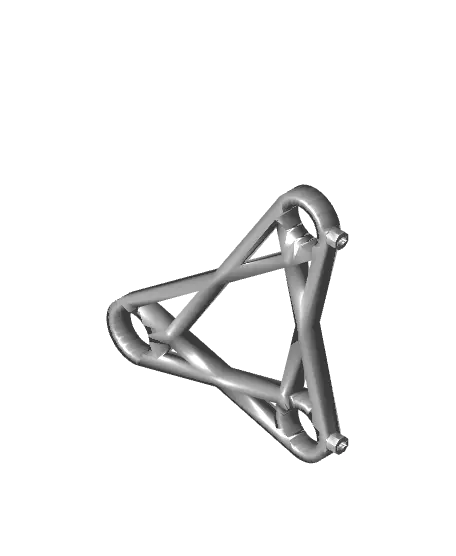

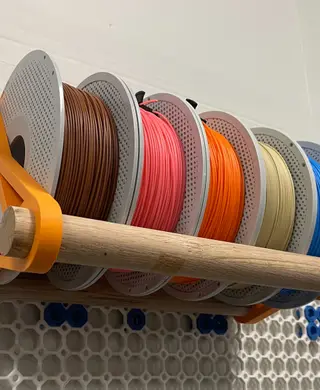

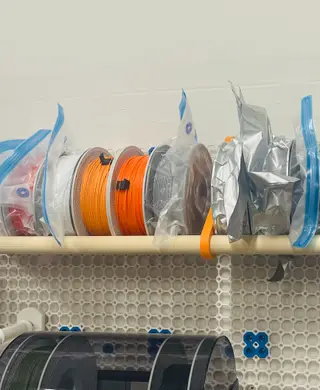

Multiboard Filament Spool Rack Brackets to use with your Multiboard tiles and wooden dowels/closet rods to store filament spools.

The brackets are designed to fit 1.25" wooden dowels/closet rods that can be found at your local hardware store. I've also included various metric versions as well. Let me know if anyone needs to a different diameter and I will post additional print profiles that fit your needs.

Mounting to your Multiboard Updated the push-connect pegs to the new Bolt-locked pegs. The new model IS NOT COMPATABLE with my remixed Multiboard T-bolts (https://than.gs/m/1052045). The new method has the advantage that it does not require removal of the Multiboard tiles.

Required Multiboard Parts: - (1) Heavy Weight-Bearing Hook Snaps - (1) Small Thread - Lite Multipoint (I HIGHLY suggest printing these in PETG)

Optional - depending on your setup: - (1) 13 mm Big Thread, Flat Head, Push-Fit Hole, Bolt (if you are using 8mm offset mounts)

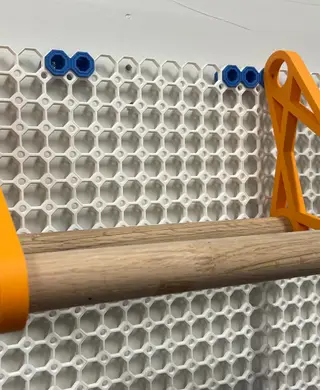

Place the Heavy Weight-Bearing Hook Snaps (https://than.gs/m/1130430) onto the peg on the top bracket and secure using the Small Thread - Lite Multipoint (https://than.gs/m/1123321).

For the bottom peg, I used these 13 mm Big Thread, Flat Head, Push-Fit Hole, Bolts (https://than.gs/m/974374) screwed into the Multiboard. Use a spare push peg to help screw it in, if needed. When screwed in all the way, the bottom of the bolt sits flush against the wall if you are using the 8mm offset mounts, helping to support the bottom of the bracket. You may also use any other open snap you might already have on your Multiboard setup.

Depending on how many spools you intend to hang from this rack, you may want to reinforce your Multiboard tiles around the brackets with additional wall-mount snaps. This will reduce the amount of flex on the Multiboard tiles to avoid any potential failures of the system.

Brackets can be printed using standard Multiboard print settings: 0.4mm nozzle, 0.2mm layers, 15% infill, random seams for strength. Supports are recommended for the push-fit pegs, but not required.
