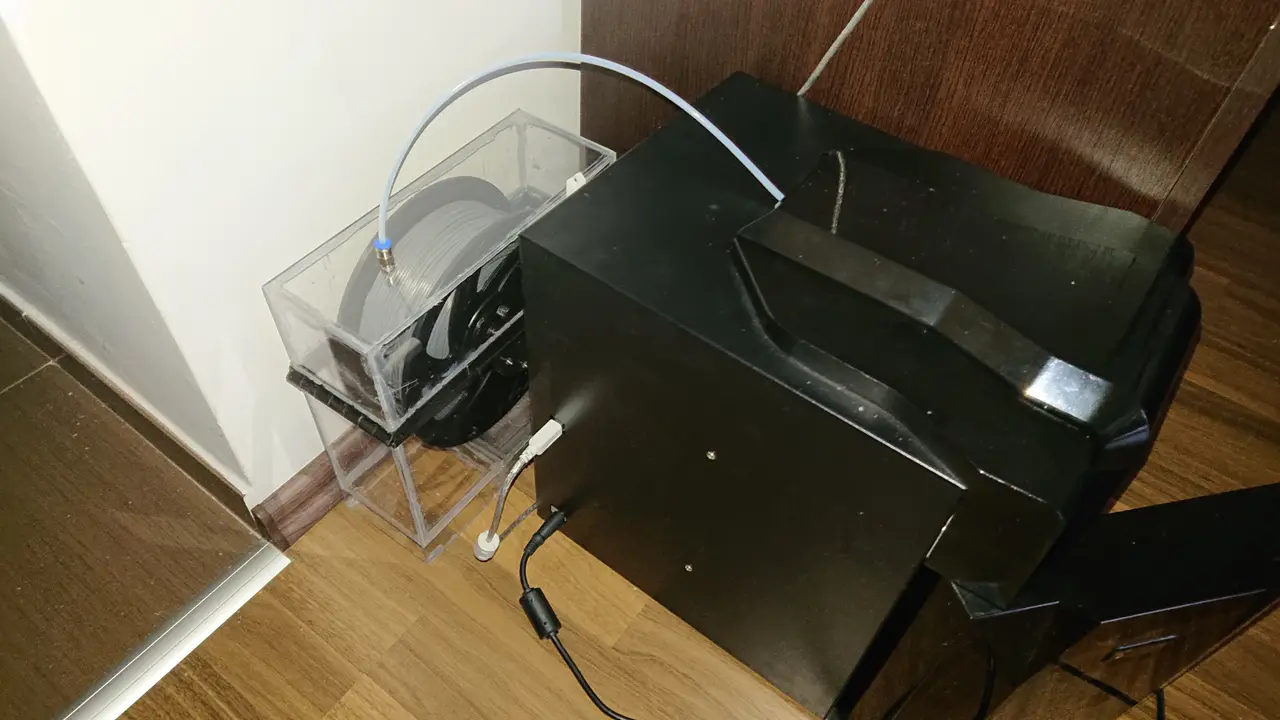

Filament holder and dryer
por András Nagy en MyMiniFactory

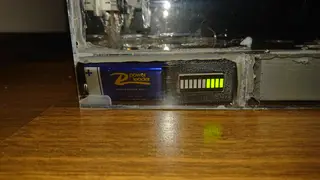

I've created this holder to protect my filament, it has an integrated DHT22 humidity sensor wihch is displaying the humidity on a led bar using an Arduino Uno. When the humidity is to high I know that the silica gel must be replaced/dryed.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a András Nagy.
Archivos (19)
- Body Bottom.stl STL
- Body Top.stl STL
- Drawer 1.Stl STL
- F Holder 1.Stl STL
- F Holder 2.Stl STL
- F Holder 3.Stl STL
- Front Stopper.stl STL
- Hinge Bottom.stl STL
- Hinge Top.stl STL
- leg1.stl STL
- leg2.stl STL
- Nut M5.Stl STL
- rail1.stl STL
- rail2.stl STL
- screw.stl STL
- Support Inner L.stl STL
- Support Inner R.stl STL
- Support Outer L.stl STL
- Support Outer R.stl STL
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 143
- Publicado
Sobre este modelo
I've created this holder to protect my filament, it has an integrated DHT22 humidity sensor wihch is displaying the humidity on a led bar using an Arduino Uno. When the humidity is to high I know that the silica gel must be replaced/dryed.

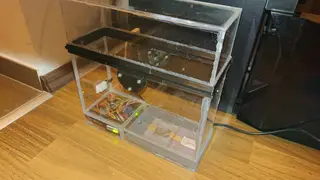

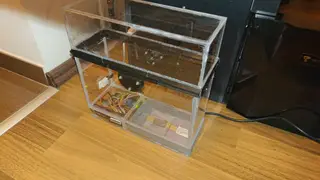

For the body I've used 2mm hobby glass (plexyglass), the rest of the componets were printed in PLA, the joints were sealed with a hotglue gun.

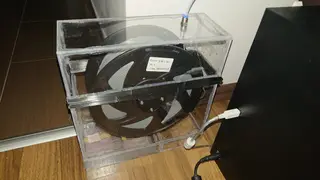

The filament holder was printed in 3 pieces, the two rings and the shaft, the shaft is fixed with 4 3mm wood screws to one of the rings, and it's resting on two bearings, this provides a smoth rotation.
The inner and outer supports are fixed with 6 M3 screws.
List of additional parts used:
- arduino Uno
- DHT22 sensor
- a bounch of jumer cables
- led bar
- 2mm hobbyglass, 2 50x50mm sheets
- 12x8x3 bearings, 2 pieces
- M3 screws, 6 pieces
- M3 nuts, 6 pieces
- 3mm wood screw, 4 pieces
Keep it safe, keep it dry :)
