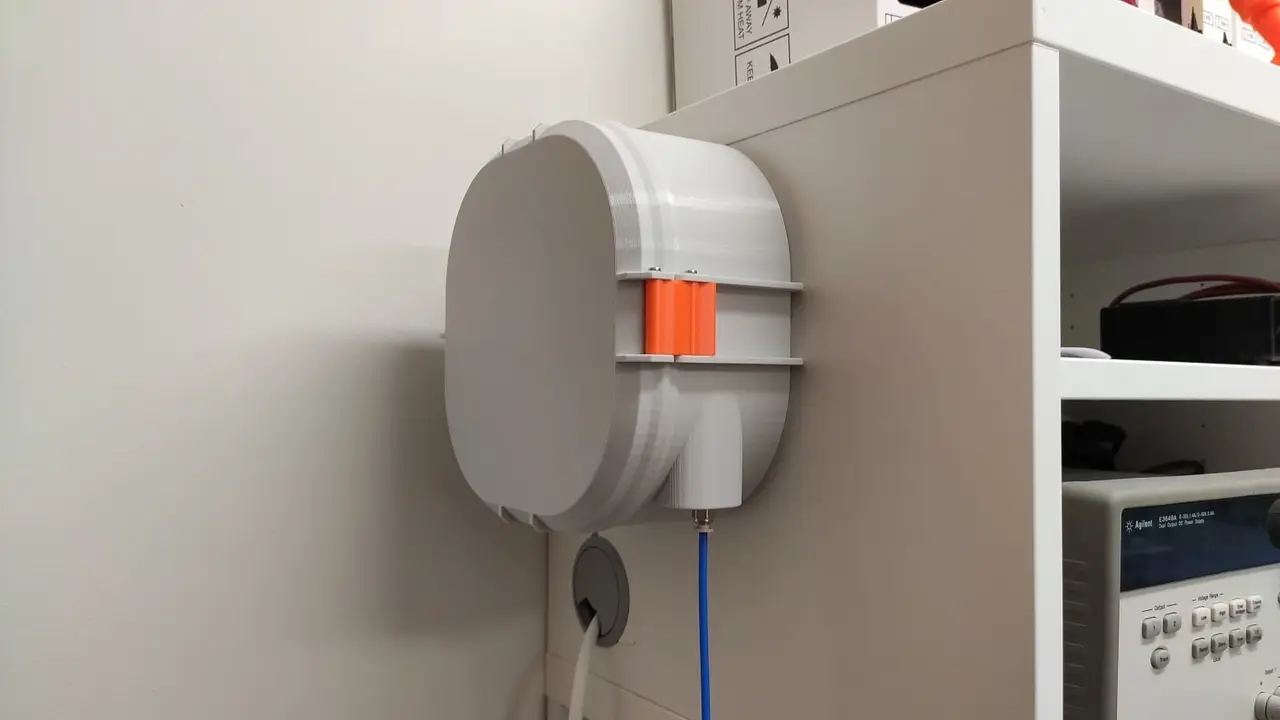

Filament box
por Nikolay Yanev en Thingiverse
Box for filament. It's modified tool box https://www.thingiverse.com/thing:4582978. 210.210.100 are internal dimensions. The groove for the seal is provided directly for filament A82-85 1.75 mm, but maybe it is better with an elastic band 2 mm. In fact, even the softest filaments are not as soft as.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Nikolay Yanev.
Archivos (15)
- Spool_box_210.210.80_Mod.stl STL · 321 KB
- Spool_lid_210.210.20_Mod.stl STL · 165 KB
- Spool_holder.stl STL · 194 KB
- Spool_holder_Mod.stl STL · 235 KB
- Box_Latch.stl STL · 79 KB
- Stand_desk.stl STL · 226 KB
- Silica_clip.stl STL · 52 KB
- Spool_box_Mod_0.2mm_PLA_MK3S_16h51m.gcode GCODE · 13,0 MB
- Prusa_MK3S_Spool_lid_0.2mm_PLA_MK3S_8h33m.gcode GCODE · 6,1 MB
- BoxFilament_+_Acc_Mod_v10.f3d F3D · 1,4 MB
- BoxFilament_+_Acc_Mod_v10.step STEP · 848 KB
- BoxFilament_+_Acc_Mod_v10.iges IGES · 1,5 MB
- BoxFilament_Lid_VII_v7.f3d F3D · 455 KB
- BoxFilament_Lid_VII_v7.step STEP · 200 KB
- BoxFilament_Lid_VII_v7.iges IGES · 394 KB
- Categoría
- Para tu impresora
- Formatos
- STL, GCODE, F3D, STEP, IGES
- Descargas
- 11,466
- Publicado
Sobre este modelo

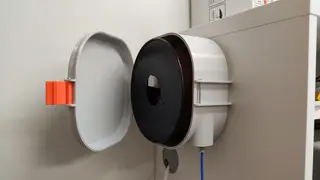

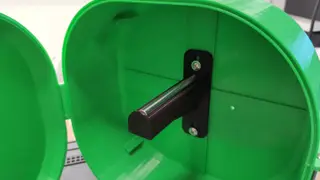

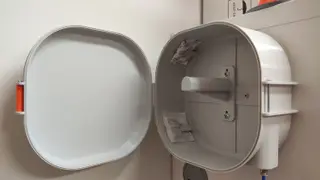

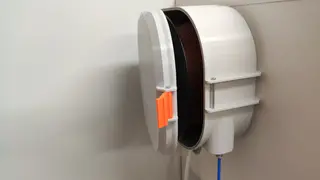

Box for filament. It's modified tool box https://www.thingiverse.com/thing:4582978. 210.210.100 are internal dimensions. The groove for the seal is provided directly for filament A82-85 1.75 mm, but maybe it is better with an elastic band 2 mm. In fact, even the softest filaments are not as soft as an elastic band. The box is parametric and can be any size, including the thickness of the box and the ribs. It need: M3x40mm for the latch and the hinge. M4x8mm for spool holder. Depending on the bridging capabilities of the printer, it may be necessary to drill the hinge of the lid with a 3mm drill bit, it must rotate freely around the axis. Gcode files are only for Prusa MK3S and the box is 205.210.100 with modified printer setings(bed size and extruder position) to be able to print 215mm on the Y axis. I haven't printed and tested the desk stand but it should be ok. I added a modified version with silica clips and the filament the output does not need support. Silica clips are also available as a separate part that can be glued with glue to already printed boxes. I also added a second holder modified with a smooth 8mm metal rod. The length is 86 mm.
Descripción original del autor, publicada en Thingiverse.
