Filabracket (storage system)
por Roy Santome en MyMiniFactory
This is my concept of a Filament storage shelf.
Licencia
Solo uso personalMyMiniFactory - Credit - Remix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a Roy Santome.
Archivos (8)
- Coverplate 4.Stl STL
- Filabracket Left 1.Stl STL
- Filabracket Right 2.Stl STL
- Filabracket Supporting Part 3.Stl STL
- New Folder 2 12E01Dac5600890D8Ff720F167A86C61C388052A.stl STL
- New Folder 2 61326D1438787B8810D3F597D12F38327C65319E.stl STL
- New Folder 2 9C1E6Ad2960E562Bb335A0Edd353E96526Ad5Ef8.Stl STL
- New Folder 2 Bcff7A9449F8Ffc8A735Df8B9191189C514E6Adc.stl STL
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 1,162
- Publicado
Sobre este modelo

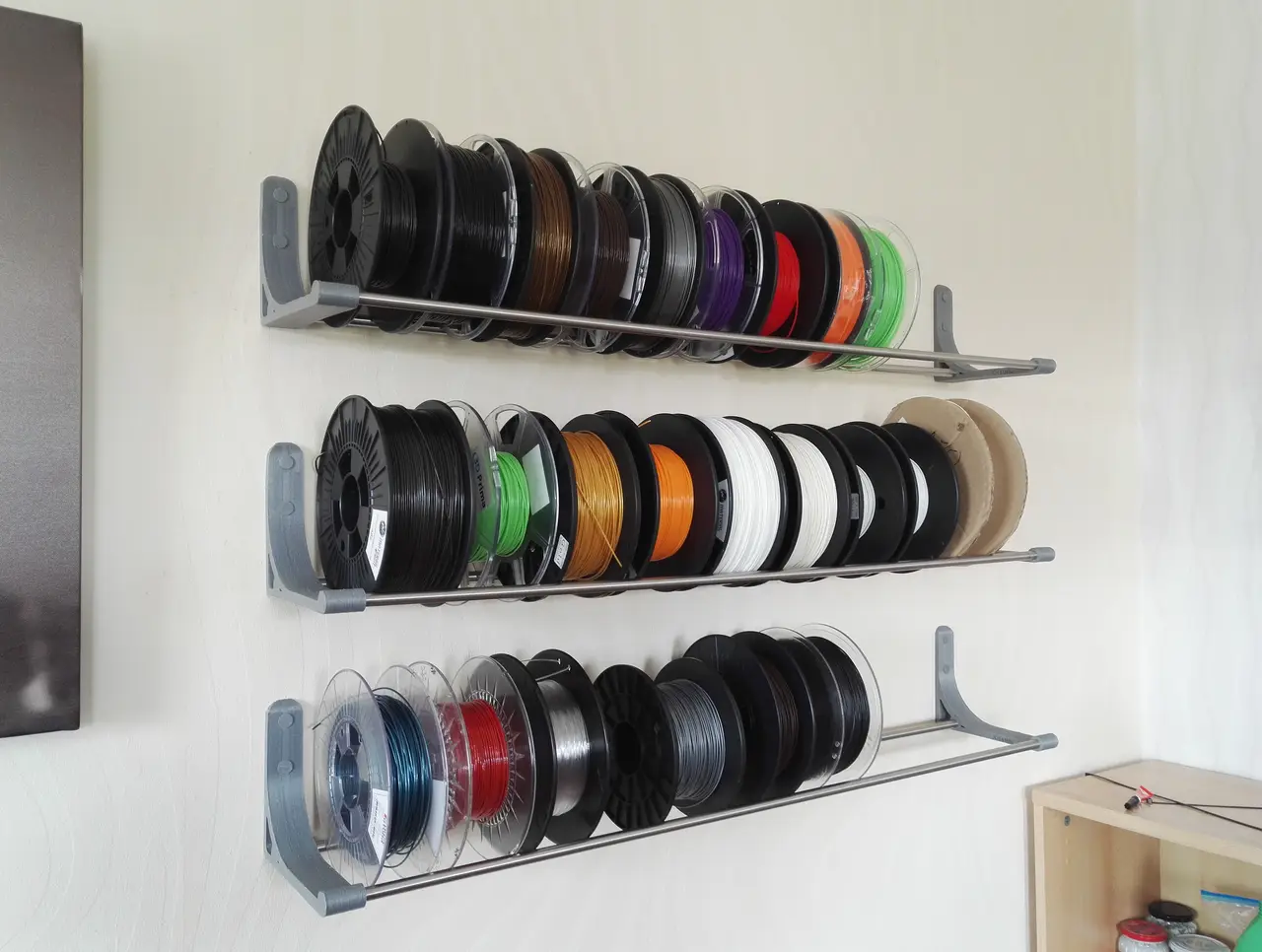

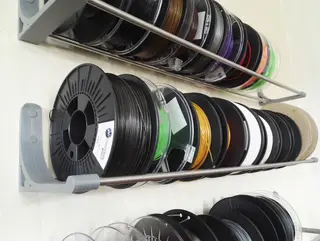

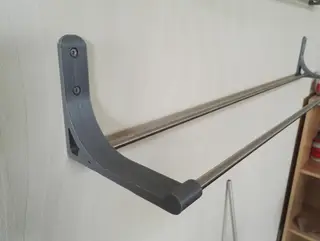

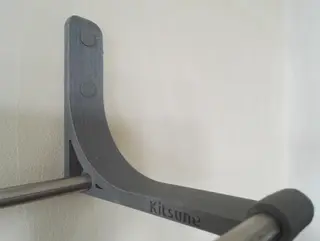

This is my concept of a Filament storage shelf. I used 12 mm steel rods for the connection between the brackets, but you can also use wood or aluminium pipes. Maybe it will bend a bit in the middle in this case i also created an bracket to support the middle.
You shoud print this in ABS oder PETG. I didn´t tryed it in PLA
I printed it with a 0.4 nozzle with 4 perimeters for stability. Do not use less then 25% infill (triangular or honeycomb).I used 25% and it works fine

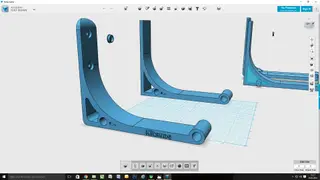

You maybe need a brim. I desiged the parts to fit well on a 20 x 20 cm Printbed. The size of the holes is 12.2 mm diameter you should need about 100 gramms each part. I also added some simple screw coverplates :-) Have fun with it and share your pictures with us!
