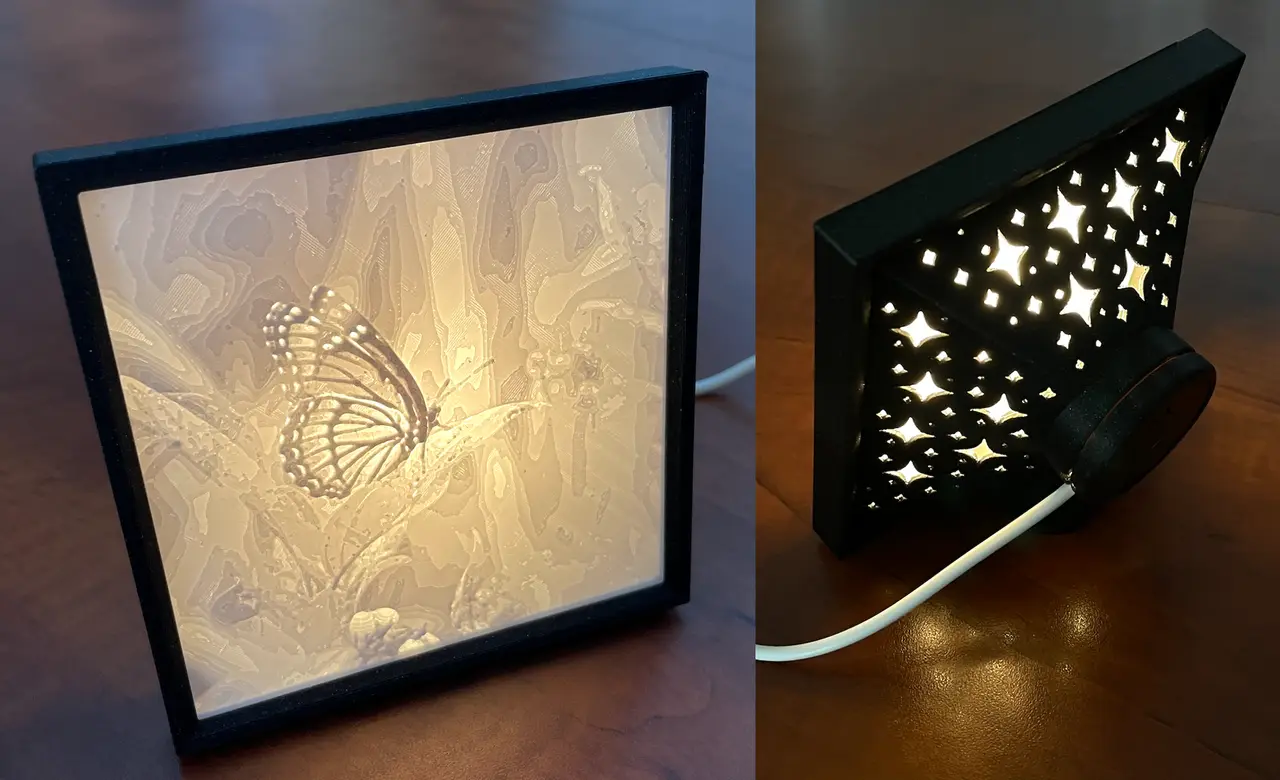

Fancy Lithophane Frame

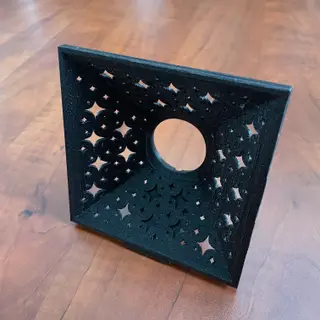

Remix of my IKEA Halvklart lithophane picture frame - New back design- Added more stars - New button

What you need - Printed parts (frame, cover, button) - IKEA Halvklart USB LED spolight- Don't forget to look at the remixes that use different light source ***

- 100x100 mm lithophane or picture

How to print your own lithophane Also, look under the section “Photos and lithophane" - From 2D to 3D. How to turn a picture or a photo into a 3d model

In summary - Go to http://3dp.rocks/lithophane- In Images- Select or Drag and Drop your picture

- In Settings / Model- Set Maximum Size to 100 mm - Set Thinnest Layer to 0.4 mm - Set Thickness to 2.4 mm - Set Border to 2.4 mm

- In Settings / Image- Set to Positive Image

- In Model- Refresh and Download

Print instructions - It is a tight fit, make sure your printer is well calibrated - All the parts are already oriented in the good position - Print the parts in PLA or PETG- Nozzle diameter: 0.4 mm - Frame (frame, cover and button)- Layer height: 0.2 mm - Perimeters: 3 - Supports: None - Brim: Maybe…

- Lithophane- Layer height: 0.1 mm - Perimeters: 1 - Solid layers Top: 1 - Solid layers Bottom: 1 - Infill: 95% Rectilinear - Color: White

Assembly - Insert the Halvkalrt LED spotlight on the back of the frame - Stick the button on the back of the Halvklart LED Spotlight - Place the lithophane picture on top of the frame - Snap the cover on top of the lithophane
