Sobre este modelo
DESCRIPTION
A low-poly origami bell made of offset triangular facets. Every face catches the light differently, so it looks great in matte, silk or dual-colour filaments. The stand keeps the folded look: an angular arm, a faceted twisted hexagonal column and a low-poly base.
One design, three ways to use it:

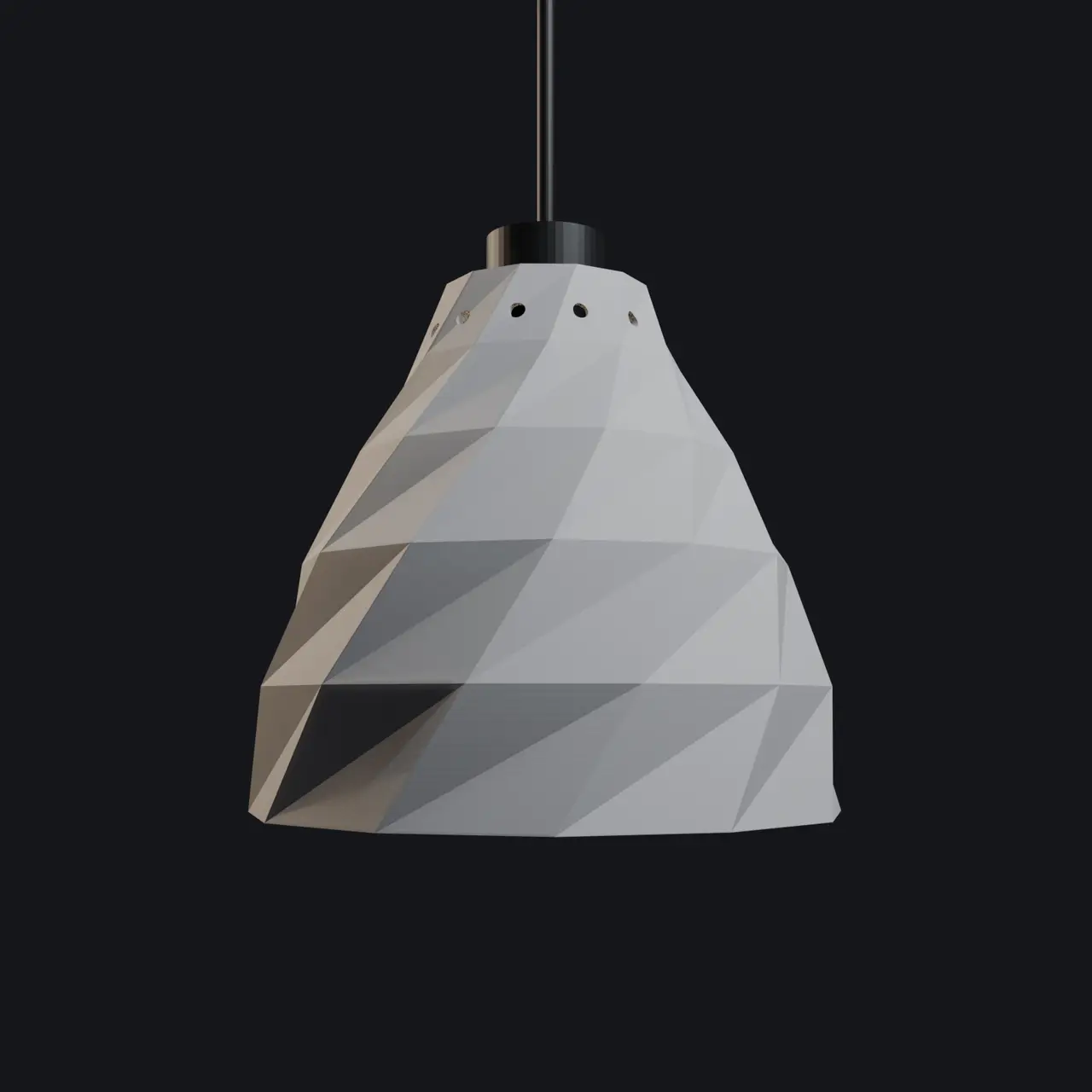

- PENDANT: hang the shade from the ceiling on any standard E27 pendant cord set.

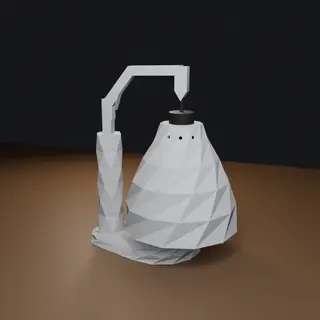

- TABLE LAMP: the shade hangs from the arm of a minimalist stand. The shade hangs over a wide base,
so the lamp is very stable (it needs a tilt of about 23 degrees to tip over).

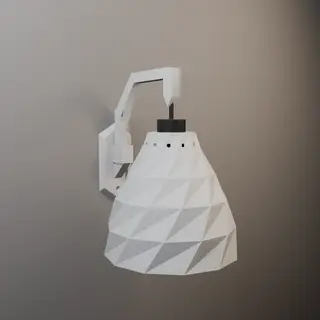

- WALL LAMP: the same arm drops into a wall plate fixed with two screws.
No rewiring, no glue, no screws in the lamp itself: you only need a standard E27 pendant cord set
(cable + lamp holder with shade ring) and an LED bulb. The cable snaps into hidden channels of the

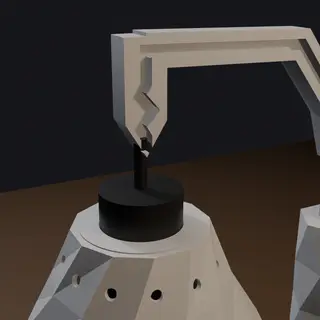

stand, and a zig-zag cable grip at the tip of the arm holds the shade at the height you choose.
Every part prints without supports and is already oriented in the STL files.
WHAT TO PRINT
- Pendant lamp ...... Shade
- Table lamp ........ Shade + Arm + Table_Column + Table_Base
- Wall lamp ......... Shade + Arm + Wall_Plate
PARAMETERS
- Shade: 192 mm diameter x 173 mm high. 12-sided low-poly bell with half-step offset rings, minimum wall 2.2 mm, 12 vent holes.
- Stand: angular folded arm, faceted twisted hexagonal column, low-poly base, faceted hexagonal wall plate.
- Mounting hole: 40.5 mm diameter with a 3 mm thick flat clamping area (standard E27 holder
with threaded sleeve and shade ring).
- Table lamp assembled: 264 x 192 x 307 mm (L x W x H), about 906 g printed
including the shade. Static tip-over angle about 23 deg in the weakest direction.
- Wall lamp: projects 243 mm from the wall, 262 mm high in total.
- Joints: 12 x 14 mm rectangular pegs in 12.5 x 14.5 mm sockets (0.25 mm clearance per side).
- Cable channel: snap-in, 5.4 mm mouth / 6.8 mm inside, for round 2-core cords of 6-7 mm.
- Bulb: A60 LED (60 x 108 mm) or LED filament ST64 / G80; at least 24 mm from glass to plastic.
- Approximate filament: shade 326 g, arm 41 g, column 142 g,
base 279 g, wall plate 57 g.
