Ezurio Vela IF820 DVK bottom case
por carlossless en Printables
Low-profile bottom case for the Ezurio Vela IF820 dev board, with M3 nut pockets and a slot for a TC2030 clip.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a carlossless.
- Categoría
- Tecnología
- Formatos
- SCAD, STL
- Descargas
- 0
- Publicado
Sobre este modelo

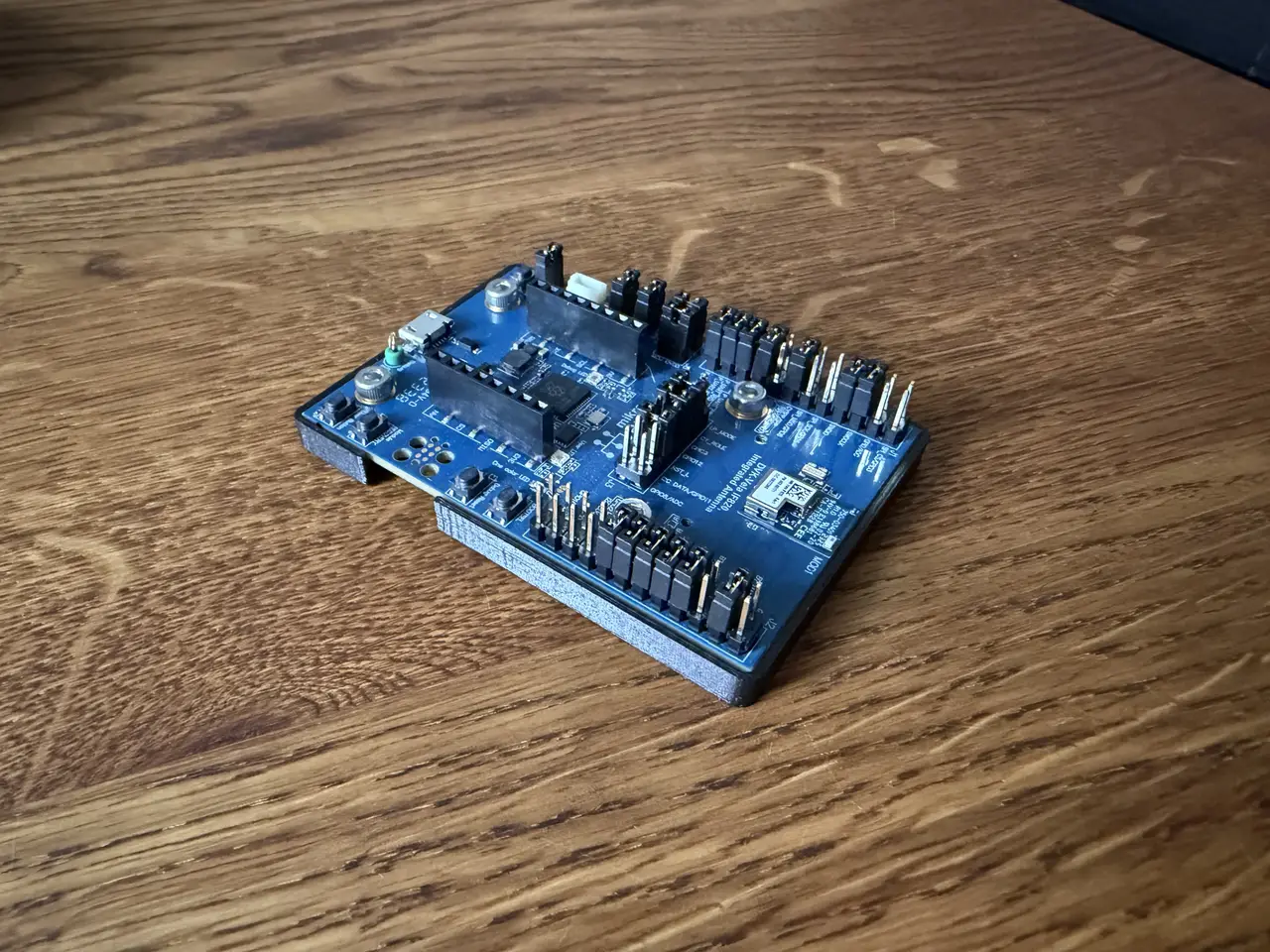

A 5.6 mm tall bottom case for the Ezurio Vela IF820 development board (453-00171-K1). The board sits on the floor with its top face flush with the rim. - Four M3 screws through the board's mounting holes, with M3 nuts pressed into hex pockets from below.
- USB notch with flared ends, so the cable plugs in with the board seated.
- The space under the board is solid, apart from pockets for the header pins that stick out underneath.

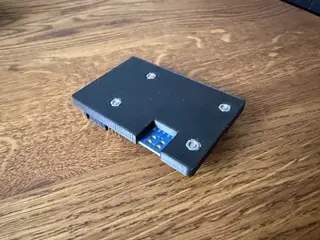

- A slot under the TC2030 footprint lets a Tag-Connect TC2030-CLIP reach the board from below while it sits in the case.
The OpenSCAD source is included. fit sets the clearance around the board. Hardware: 4× M3 screws, 4× M3 nuts.
