ESP32 Plane RADAR with Early Warning Aircraft Announcements
por Brett Oliver en Thingiverse

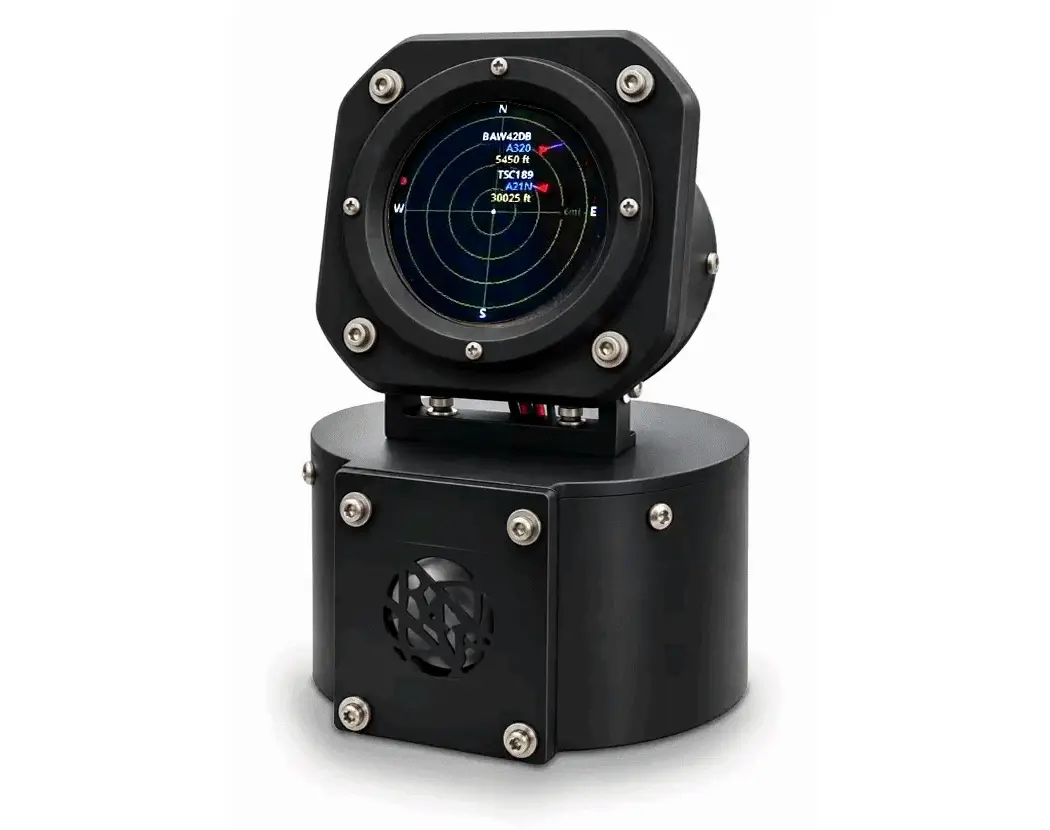

An ESP32 based aviation RADAR with a 1.28" Round 240x240 TFT display. Mounted in a 3D printed aviation style case, the display shows real time air traffic data. Spoken warnings from a mini speaker built into the base are announced when aircraft on a list of a set types are detected. This list of...
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Brett Oliver.
Archivos (30)
- washer2_5x5x4_5.stl STL · 17 KB
- Base01.FCStd FCSTD · 667 KB
- Base01.stl STL · 566 KB
- BaseLid.FCStd FCSTD · 113 KB
- BaseLid.stl STL · 211 KB
- EndCap.FCStd FCSTD · 117 KB
- EndCap.stl STL · 366 KB
- JQ6500VeroSpacer.FCStd FCSTD · 35 KB
- JQ6500VeroSpacer.stl STL · 8 KB
- MeterBracket.FCStd FCSTD · 72 KB
- MeterBracket.stl STL · 33 KB
- MeterRear01.FCStd FCSTD · 570 KB
- MeterRear01.stl STL · 564 KB
- PSU_Mount.FCStd FCSTD · 39 KB
- PSU_Mount.stl STL · 42 KB
- RAFSpeakerGrillBlack.svg_2mm.stl STL · 4,5 MB
- RAFSpeakerGrillBlack20x20x1.5mm.3mf 3MF · 749 KB
- SpeakerCoverMount.FCStd FCSTD · 31 KB
- SpeakerCoverMount.stl STL · 101 KB
- SwitchSpacer.FCStd FCSTD · 51 KB
- SwitchSpacer.stl STL · 27 KB
- washer2_5x5mm.FCStd FCSTD · 15 KB
- washer2_5x5mm.stl STL · 20 KB
- washer2_5x5x4_5.FCStd FCSTD · 16 KB
- MeterFront.stl STL · 381 KB
- MeterFront.FCStd FCSTD · 144 KB
- MeterFront.stl STL · 381 KB
- MeterFront.FCStd FCSTD · 144 KB
- MeterSurround.FCStd FCSTD · 36 KB
- MeterSurround.stl STL · 192 KB
- Categoría
- Tecnología
- Formatos
- STL, FCSTD, 3MF
- Descargas
- 371
- Publicado
Sobre este modelo

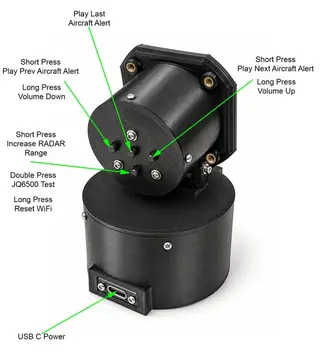

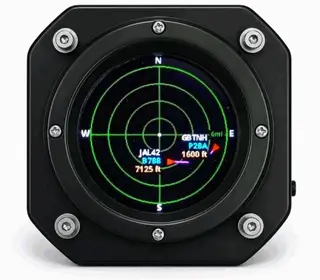

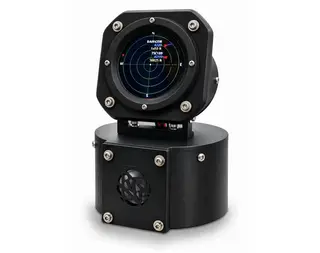

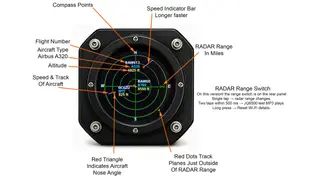

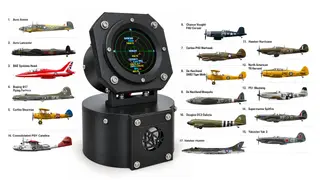

An ESP32 based aviation RADAR with a 1.28" Round 240x240 TFT display. Mounted in a 3D printed aviation style case, the display shows real time air traffic data. Spoken warnings from a mini speaker built into the base are announced when aircraft on a list of a set types are detected. This list of aircraft types can be customized to include any "special" aircraft types you are looking out for. The RADAR displays can be set to any location in the country and distances of 3miles to 16miles from that location. Powered from a standard USB power supply the ESP32 S3 version draws around 120mA while the ESP32 C3 version uses around 100mA. Full build details here https://www.brettoliver.org.uk/Aviator_Clock/aircraft_radar.htm The radar display is based on an original design by matixovi. https://github.com/MatixYo/ESP32-Plane-Radar/releases
