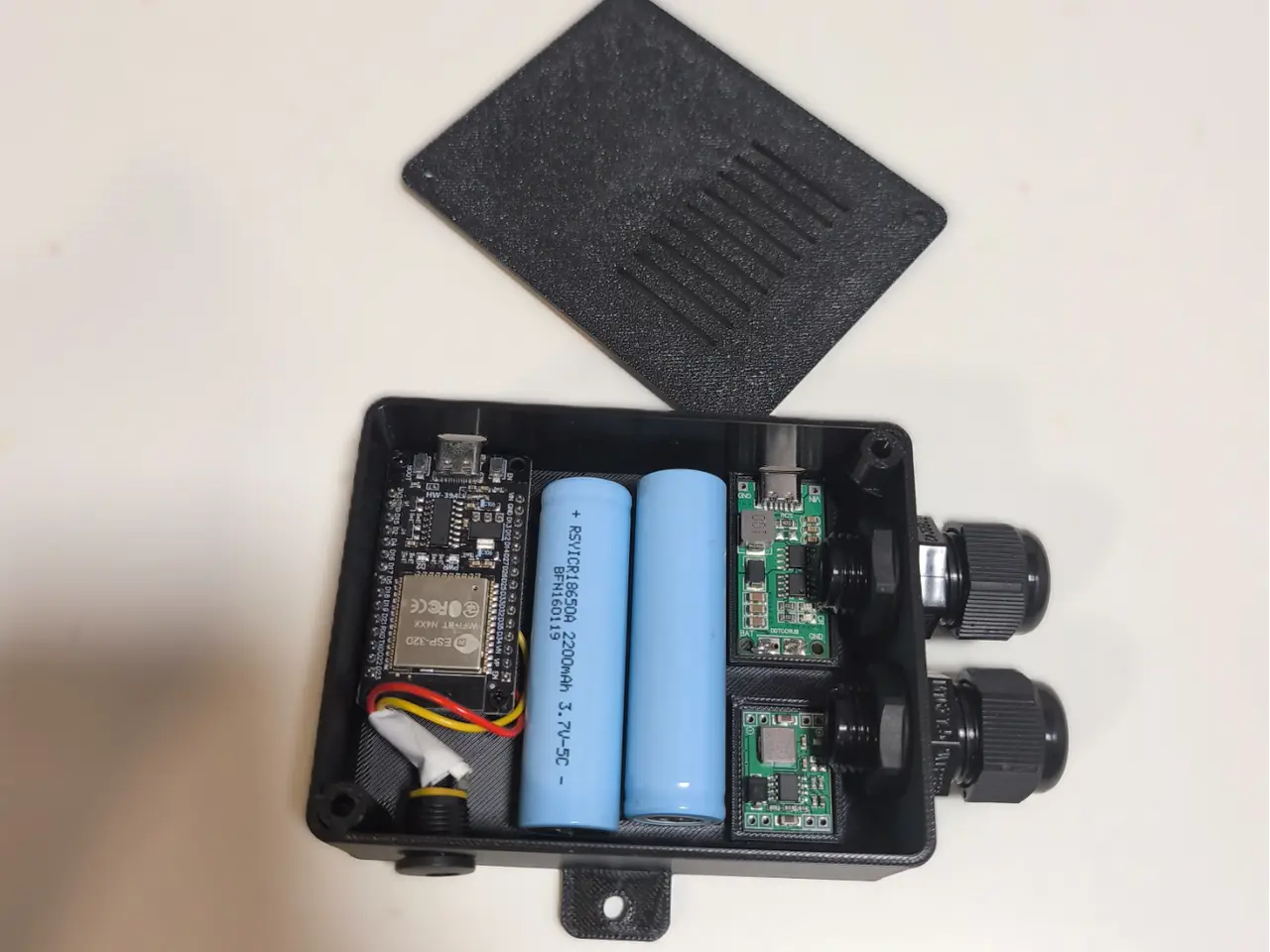

ESP32 Box with 18650 battery
por Arvixs en MakerWorld
ESP32 DevKit V1 Enclosure for Control Cabinets with 18650 battery's. A compact 3D-printed box for a 30-pin ESP32 DevKit V1 (ESP-WROOM-32).
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Arvixs.
- Categoría
- Tecnología
- Descargas
- 0
- Publicado
Sobre este modelo

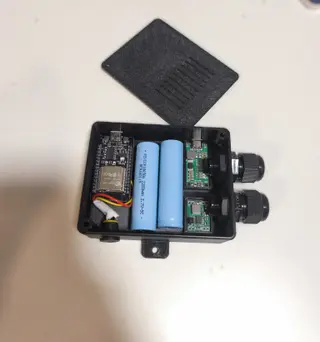

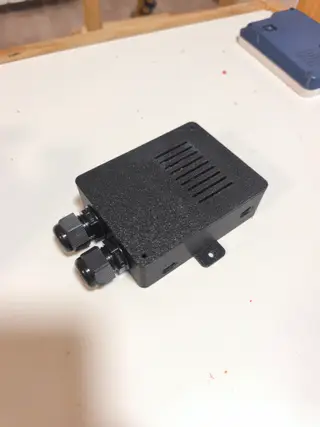

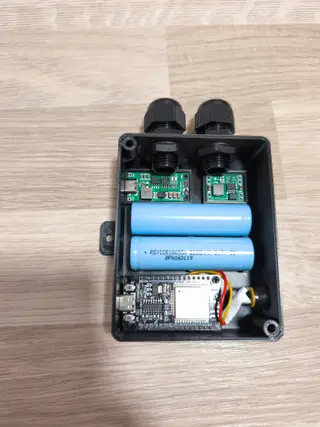

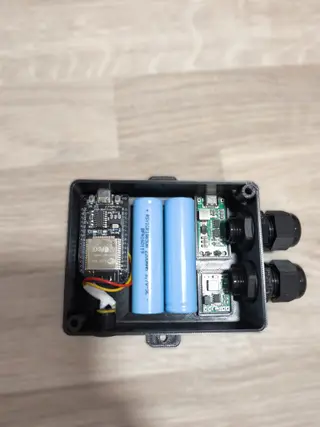

ESP32 DevKit V1 Enclosure for Control Cabinets with 18650 battery's A compact 3D-printed box for a 30-pin ESP32 DevKit V1 (ESP-WROOM-32). Features
- Fits a 30-pin ESP32 DevKit V1 (51.8 × 28.2 mm), bolted down on two 10 mm standoffs that clear the header pins
- micro-USB opening in the side wall, so the board can be programmed without opening the box
- 2 cabel inputs M16x1,5 Gland
- Ventilated lid fixed with 2 M3 screws into heat-set inserts, on a diagonal so it fits either way round
- Screw tabs on both ends for mounting to a backplate (M4)
- Rounded corners, and prints without supports
- 2s battery charger
- Voltage step down converter to 5v
- Li-ion 18650 battery
Dimensions
- Outer: 104 × 80 × 33 mm
- Inner: 100 × 77 × 29 mm
Hardware needed
- 2 × M2.5 self-tapping screws, 6–8 mm, for the ESP32
- 2 × M3 heat-set inserts (OD 4.1 mm)
- 2 × M3 × 6–8 mm screws for the lid
- 2 × M4 screws for mounting
Wiring diagram
