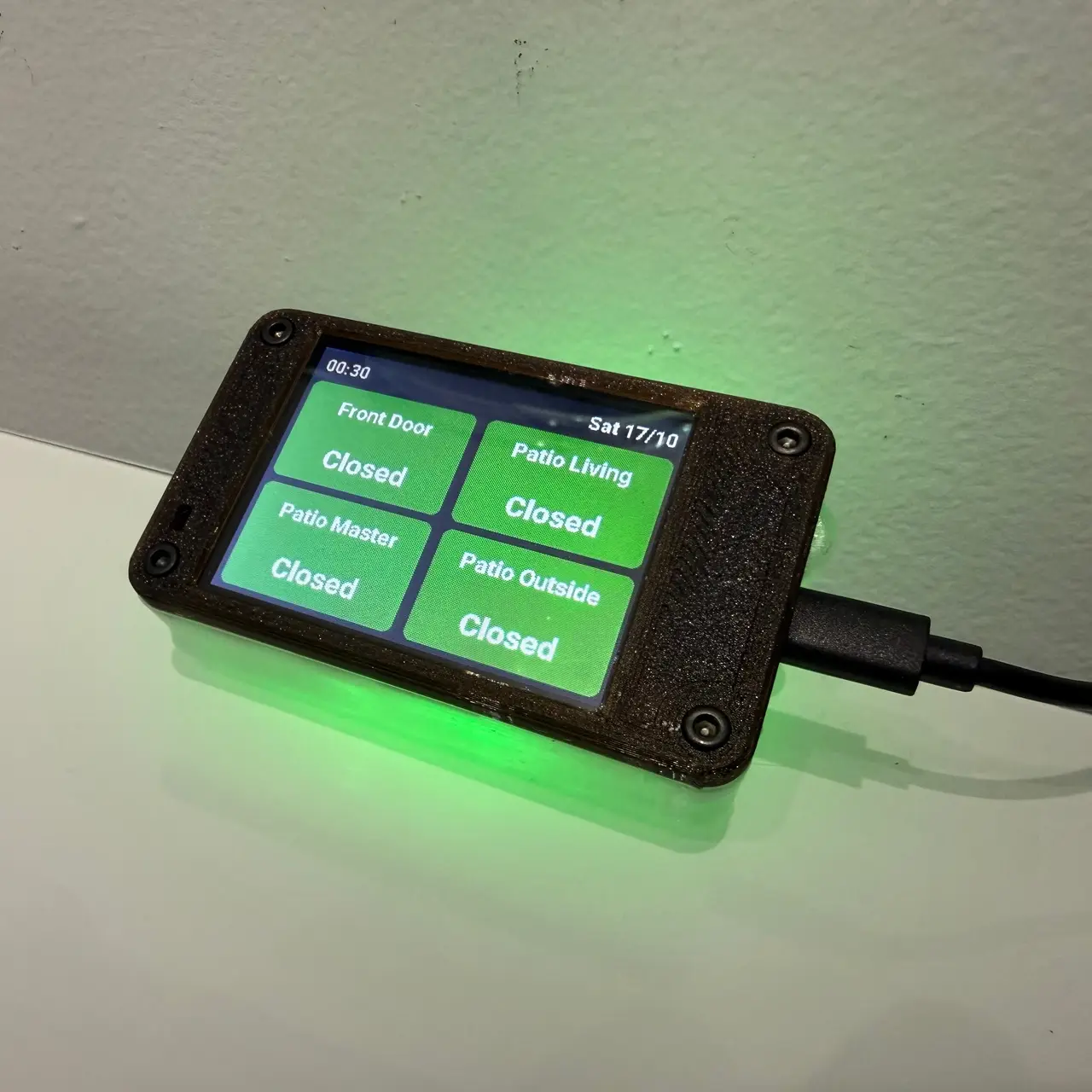

ESP32 2432S028 CYD case With UART Cutout
por Freddy Franco en Thingiverse
I wanted internal access to the UART port for an extra WS2812 module since it provides 5V. I created a mounting post for a 3 RGB WS2812 Module that I taped to the back of the CYD. I also added holes to the lid for the screws and LDR, since the original didn't have them. You will need 5 M3x8 screws..
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Freddy Franco.
Archivos (3)
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

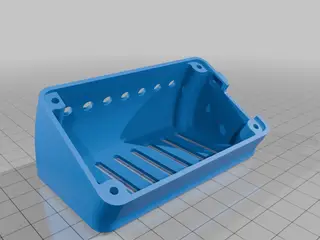

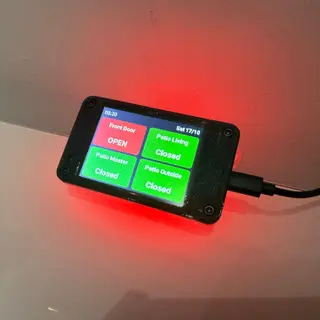

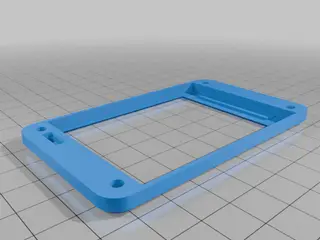

I wanted internal access to the UART port for an extra WS2812 module since it provides 5V. I created a mounting post for a 3 RGB WS2812 Module that I taped to the back of the CYD. I also added holes to the lid for the screws and LDR, since the original didn't have them. You will need 5 M3x8 screws. 4 for the lid and 1 for the RGB Remixed https://www.thingiverse.com/thing:7047135 Inspired by https://www.thingiverse.com/thing:7340015
Descripción original del autor, publicada en Thingiverse.
